Hino S5-LJ05E04A Workshop Manual page 557

12–22
INTERCOOLER
COOLING (J05E)
MOUNTING THE INTERCOOLER
1. MOUNTING THE INTERCOOLER
(1) Mount the intercooler to the radiator with bolts (4 pcs.).
Tightening Torque:
14-20 N·m {143-203 kgf·cm, 11-14 lbf·ft}
! CAUTION
Use care not to damage the fins of the radiator core and inter-
cooler core.

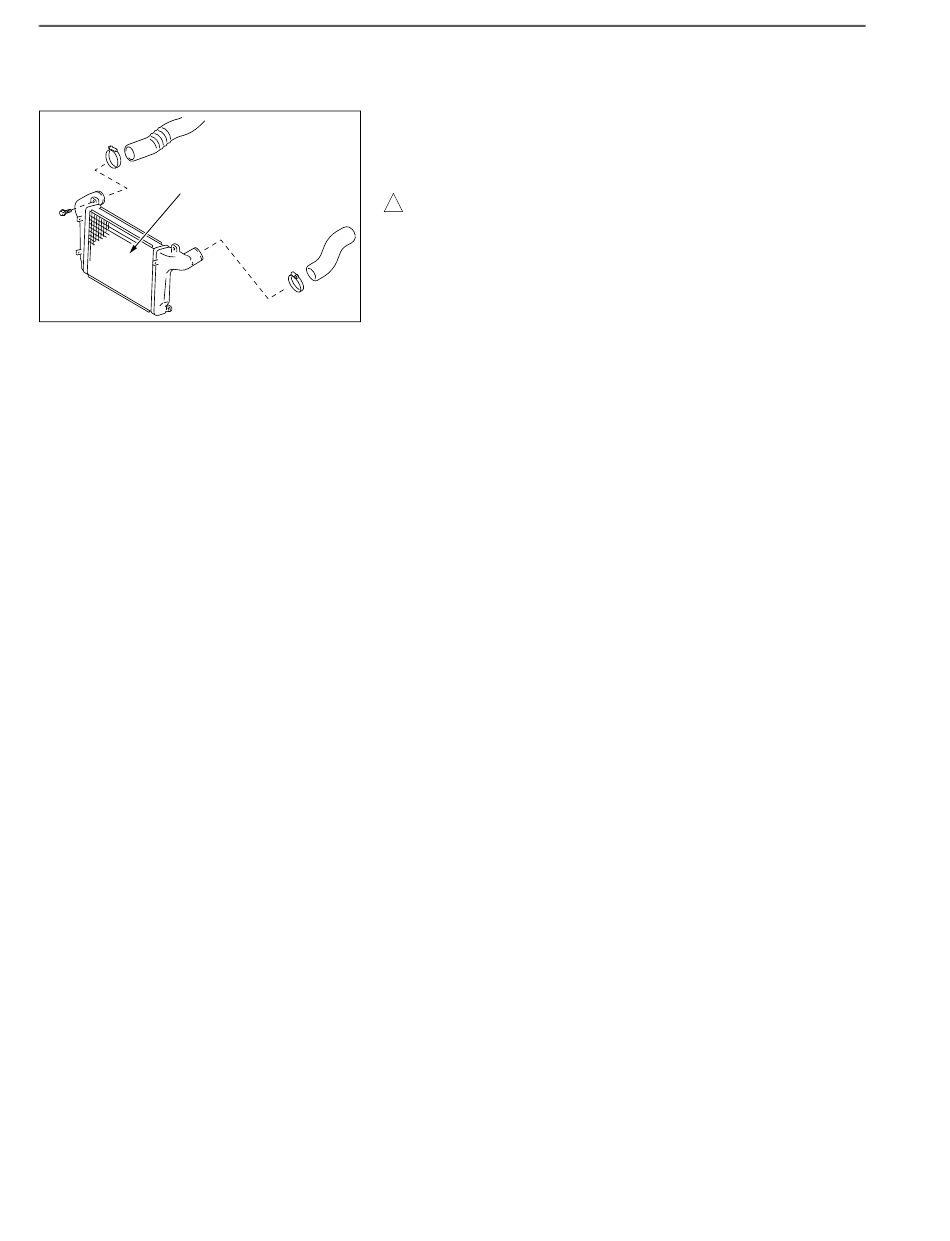

2. CONNECTING THE INTERCOOLER
(1) Connect the Intercooler hose to the Intercooler with the clamp.
Tightening Torque:
SHTS021271100033
6.25 N·m {64 kgf·cm, 4.61 lbf·ft}
(2) After 10 minutes re-tighten the clamp.
Tightening Torque:
6.25 N·m {64 kgf·cm, 4.61 lbf·ft}
NOTICE
When assembling the intercooler hose, it fully degreased inner
hose, the outer surface of the intercooler pipe.
