COOLANT INLET
HOSE
DEF
OUTLET
HOSE
DEF
SENSOR
DEF SENSOR
DEF TANK
EXHAUST (J05E)
4.
! CAUTION
Refer to "Cautions on DEF/coolant piping attaching and detach-
ing".
COOLANT OUTLET
Reference: EXHAUST (J05E), DEF-SCR & DPR, CAUTIONS ON
HOSE
DEF/COOLANT PIPING ATTACHING AND DETACHING (Page 11-
20)
(1)
NOTICE
•
•
DEF
BACKFLOW
•
HOSE
(2)
NOTICE
•
DEF TANK
•
•
SHTS021271000130
5.
(1)
CONNECTOR
DEF TANK
SHTS021271000131
6.
(1)
TANK
BRACKET
SHTS021271000132

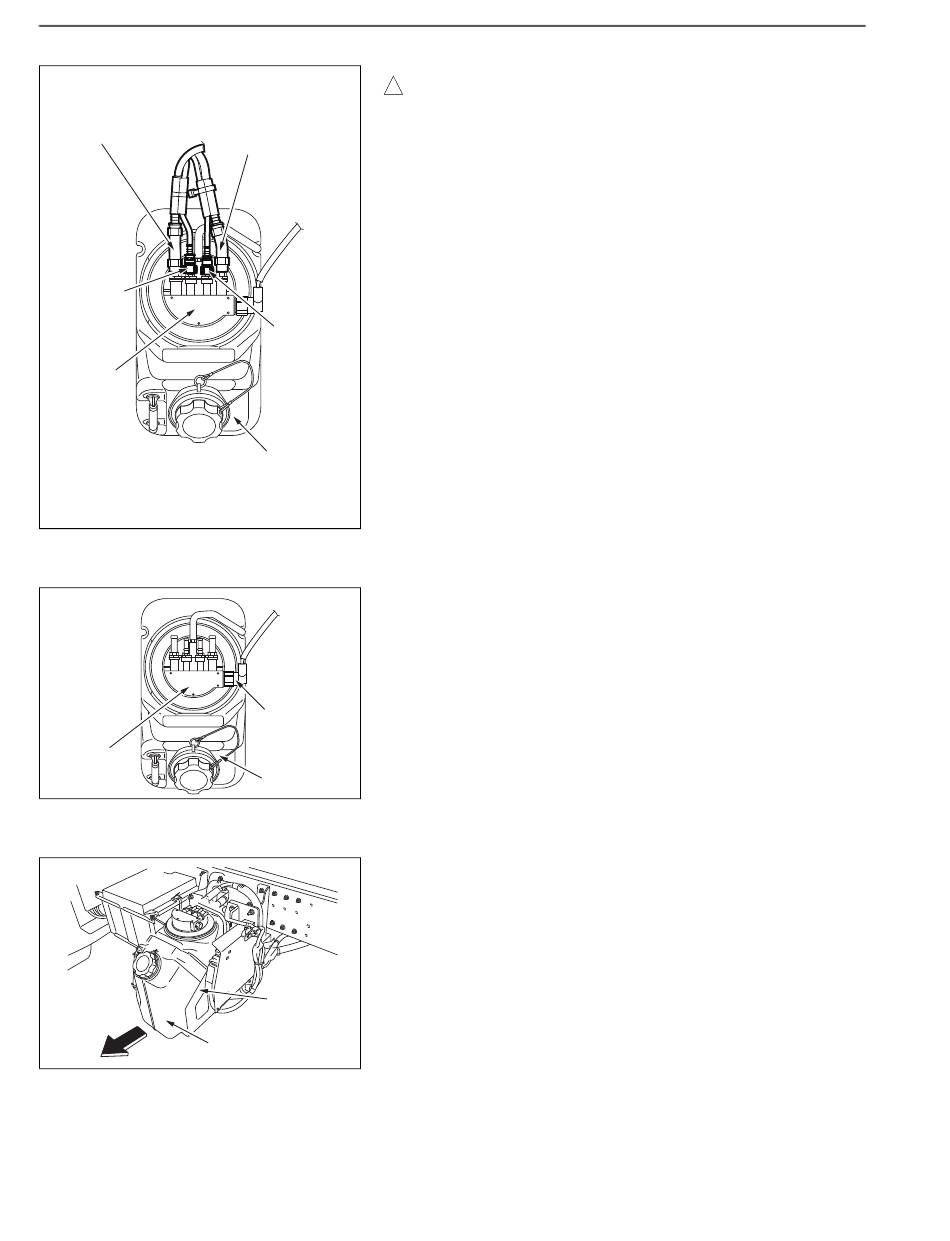

DISCONNECTING THE HOSE.
Disconnect the DEF backflow hose and DEF outlet hose from the
DEF sensor.
Prepare the reservoir and waste to collect dripping DEF when
disconnecting the hose.
Block with vice clip to prevent DEF from flowing out from the
hoses.
Mount the protection cap to the DEF sensor.
Unfasten the 2 clamps to disconnect the coolant inlet hose and
coolant outlet hose from the DEF sensor.
Prepare the reservoir and clean clothes to collect dripping
coolant when disconnecting the hose.
Block with vice clip to prevent coolant outflow from the hose.
Mount the protection cap to the DEF sensor.
DISCONNECTING THE HARNESS
Disconnect the connector from the DEF sensor.
REMOVING THE DEF TANK.
Remove the DEF tank from the tank bracket.
