11–66

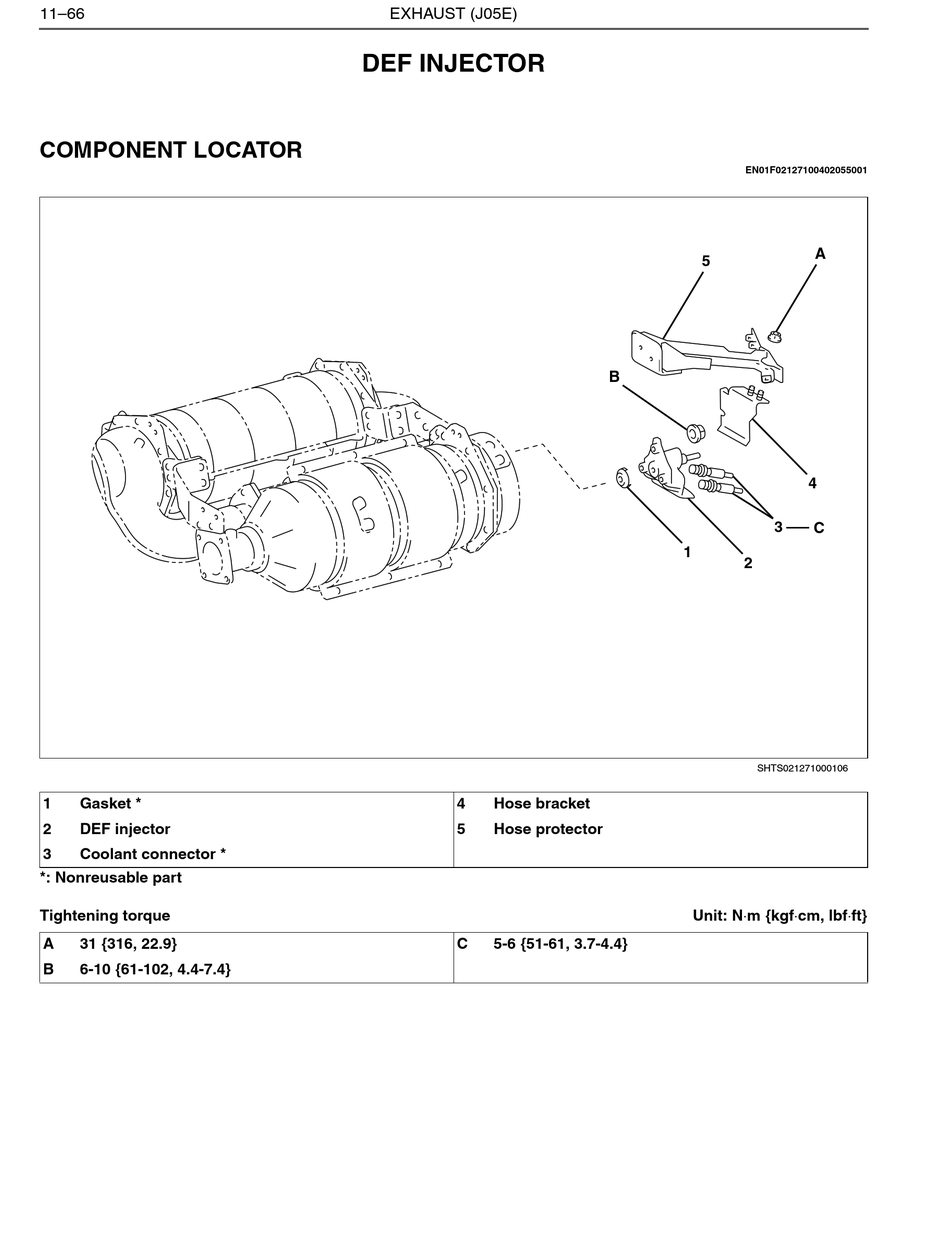

COMPONENT LOCATOR

1 Gasket *
2

DEF injector

3 Coolant connector *
*: Nonreusable part
Tightening torque
A 31 {316, 22.9}
B 6-10 {61-102, 4.4-7.4}
EXHAUST (J05E)
DEF INJECTOR
4 Hose bracket
5 Hose protector
C 5-6 {51-61, 3.7-4.4}
EN01F02127100402055001
5
B
3
1
2
SHTS021271000106
Unit: Nm {kgfcm, lbfft}
A
4
C
