COOLANT
PIPE E
OIL COOLER
ASSEMBLY
FOLDER
COOLANT PIPE F
TURBOCHARGER
ASSEMBLY
TURBOCHARGER (J05E)

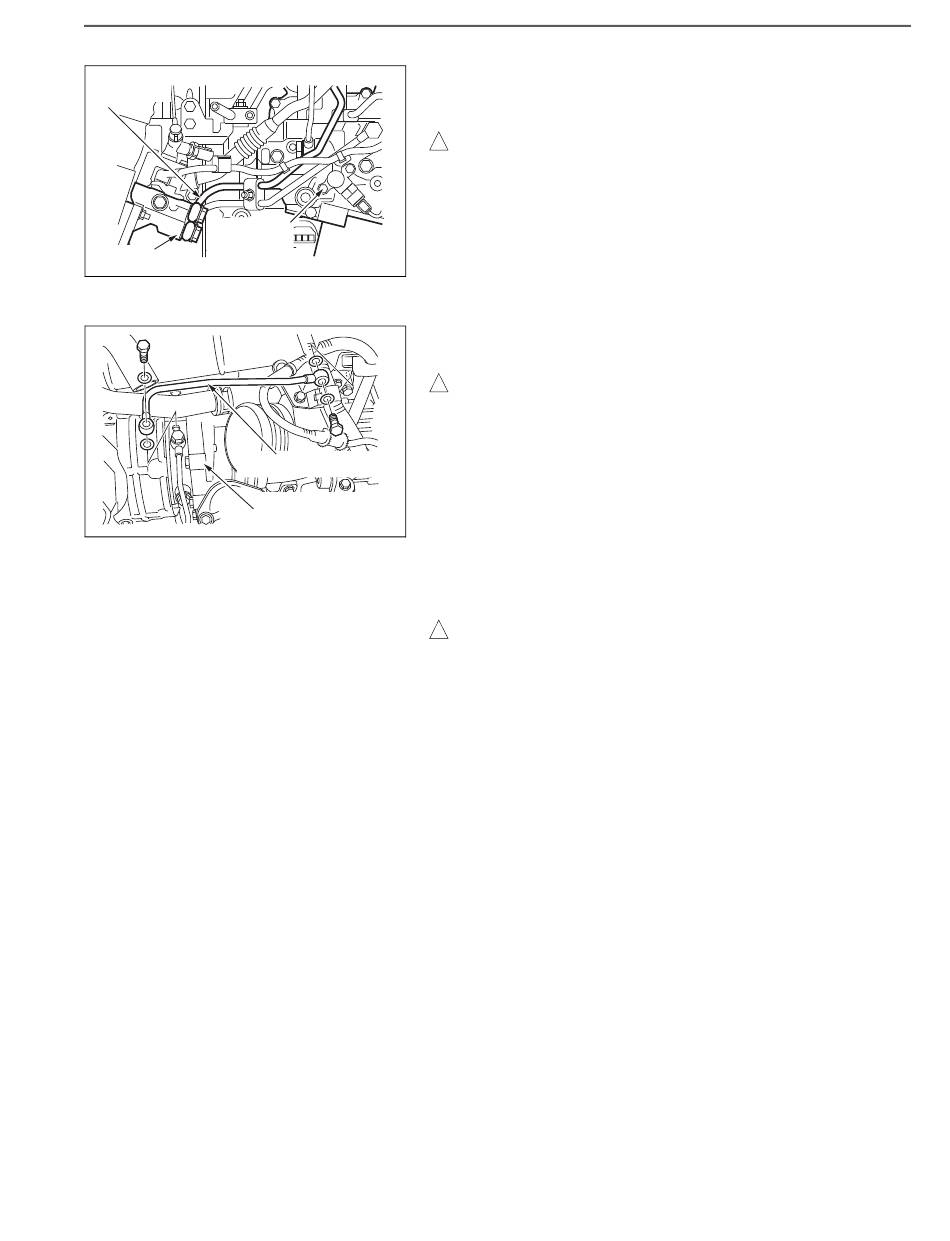

8. DISCONNECTING THE COOLANT PIPE
(1) Remove the nut and then the clip.
(2) Unfasten the 2 union bolts and detach the coolant pipe E and 4
gaskets from the folder and turbocharger assembly.
! CAUTION
Use care not to splash the coolant in the pipes and turbocharger
assembly.
NOTICE
Use the container and a waste cloth to avoid spillage of coolant
when disconnecting the coolant pipe.
SHTS021271600009
(3) Remove the nut and then the clip.
(4) Unfasten the 2 union bolts to remove the coolant pipe F and gas-
kets from the turbocharger assembly and thermostat case.
! CAUTION
Use care not to splash the coolant in the pipes and turbocharger
assembly.
NOTICE
Use the container and a waste cloth to avoid spillage of coolant
when disconnecting the coolant pipe.
SHTS021271600010
(5) Block water holes of the turbocharger assembly to prevent entry
of foreign matters.
! CAUTION
Use special care to prevent the entry of foreign matter into the tur-
bocharger assembly.
17–7
