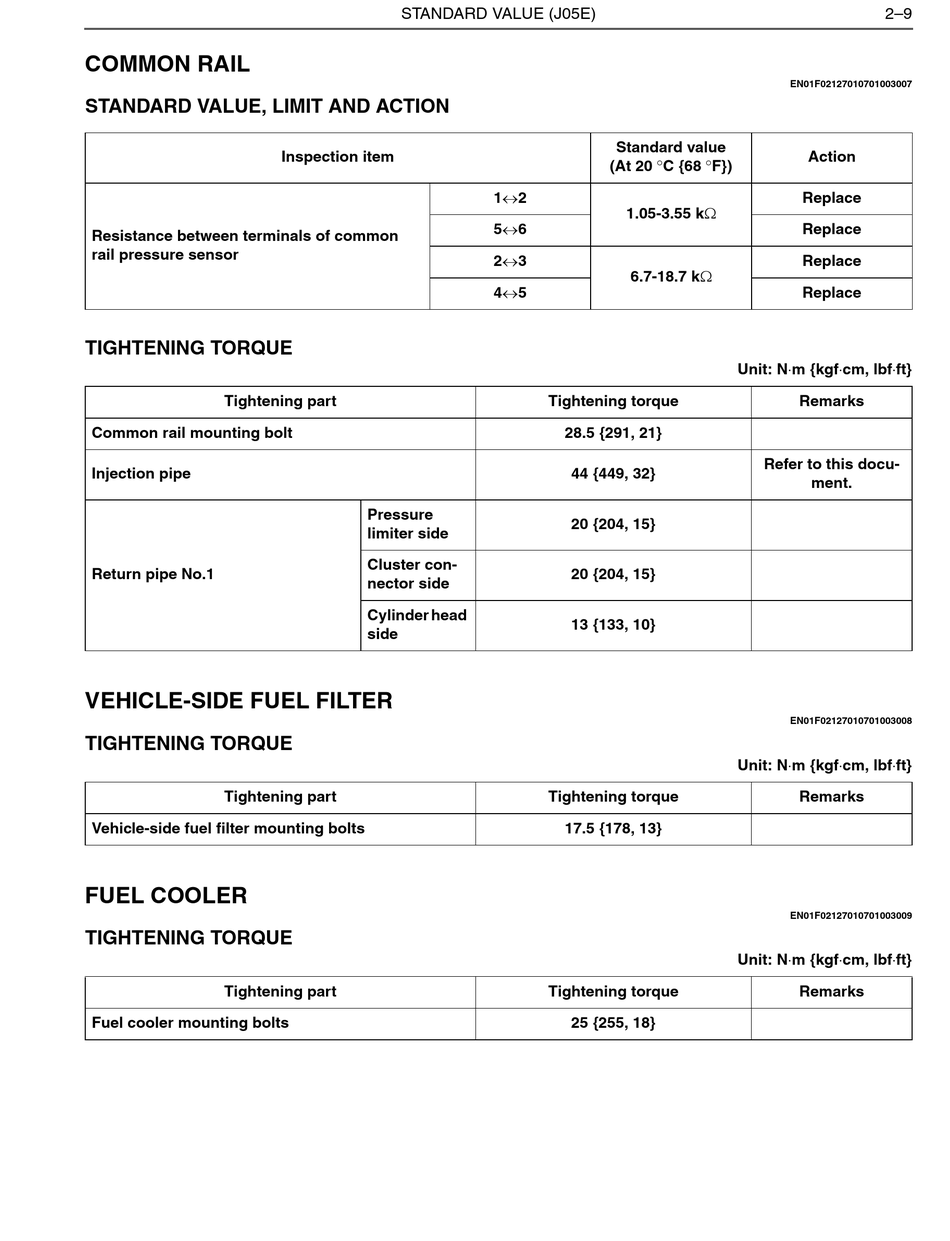

COMMON RAIL

STANDARD VALUE, LIMIT AND ACTION
Resistance between terminals of common
rail pressure sensor
TIGHTENING TORQUE
Tightening part
Common rail mounting bolt
Injection pipe
Return pipe No.1

VEHICLE-SIDE FUEL FILTER

TIGHTENING TORQUE
Tightening part
Vehicle-side fuel filter mounting bolts

FUEL COOLER

TIGHTENING TORQUE
Tightening part
Fuel cooler mounting bolts
STANDARD VALUE (J05E)
Inspection item
Pressure
limiter side
Cluster con-
nector side
Cylinder head
side
Standard value
(At 20 C {68 F})
12
1.05-3.55 k
56
23
6.7-18.7 k
45
Tightening torque
28.5 {291, 21}
44 {449, 32}
20 {204, 15}
20 {204, 15}
13 {133, 10}
Tightening torque
17.5 {178, 13}
Tightening torque
25 {255, 18}
2–9
EN01F02127010701003007
Action
Replace
Replace
Replace
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
Refer to this docu-
ment.
EN01F02127010701003008
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701003009
Unit: Nm {kgfcm, lbfft}
Remarks
