Hino S5-LJ05E04A Workshop Manual page 264

SINGLE CAB
AIR CLEANER
BODY
ASSEMBLY
CREW CAB
AIR CLEANER
AIR CLEANER
BODY ASSEMBLY
BRACKET
AIR FLOW
SENSOR
CONNECTOR
INTAKE (J05E)
MOUNTING THE AIR CLEANER ELEMENT AND
BODY ASSEMBLY
1.
(1)
(2)
AIR CLEANER
BRACKET
SHTS021270800033
(3)
(4)
INTAKE HOSE No.1
(5)
CLAMP
SHTS021270800034

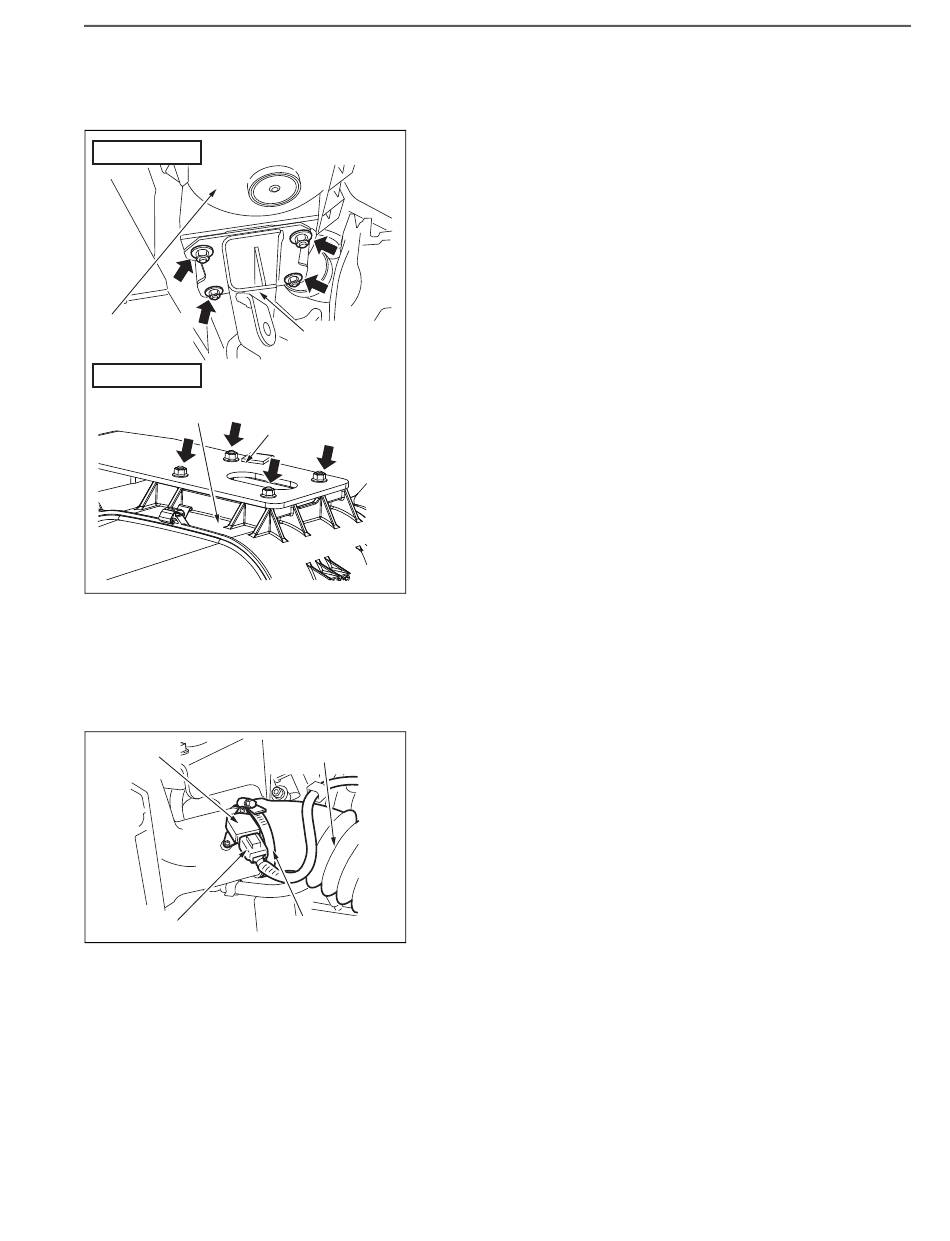

MOUNTING THE AIR CLEANER BODY ASSEMBLY
Clean the inside of the cover of the air cleaner and of the air
cleaner body assembly with a waste cloth.
Mount the air cleaner body assembly to the air cleaner bracket
with 4 nuts.
Tightening Torque:
19.5 N·m {199 kgf·cm, 14 lbf·ft}
Mount the fender side apron (right).
Reference: MOUNTING AND DISMOUNTING THE ENGINE
(J05E), ENGINE ASSEMBLY, REPLACEMENT, MOUNTING
THE ENGINE ASSEMBLY (Page 5-11)
Match the alignment marks before connecting the intake hose
No.1 to the air cleaner body assembly.
Tightening Torque:
2.4-5.0 N·m {25-50 kgf·cm, 1.8-3.6 lbf·ft}
Connect the connector to the air flow sensor.
9–23
