Replacement - Hino S5-LJ05E04A Workshop Manual

STARTER
STARTING/CHARGING (J05E)

REPLACEMENT

REMOVING THE STARTER
1. REMOVING OF BATTERY CABLE
(1) Disconnect the battery earth cable from the negative battery ter-
minal.
2. DISCONNECTING THE HARNESS
(1) Disconnect the 2 wire harness clamps.
(2) Remove the bolt and the wire harness clamp bracket.
(3) Pull off the terminal cap and remove the nut, and disconnect the
starter wire from terminal B.
(4) Pull off the terminal cap and remove the nut, and disconnect the
starter wire from terminal C.
3. REMOVING THE STARTER

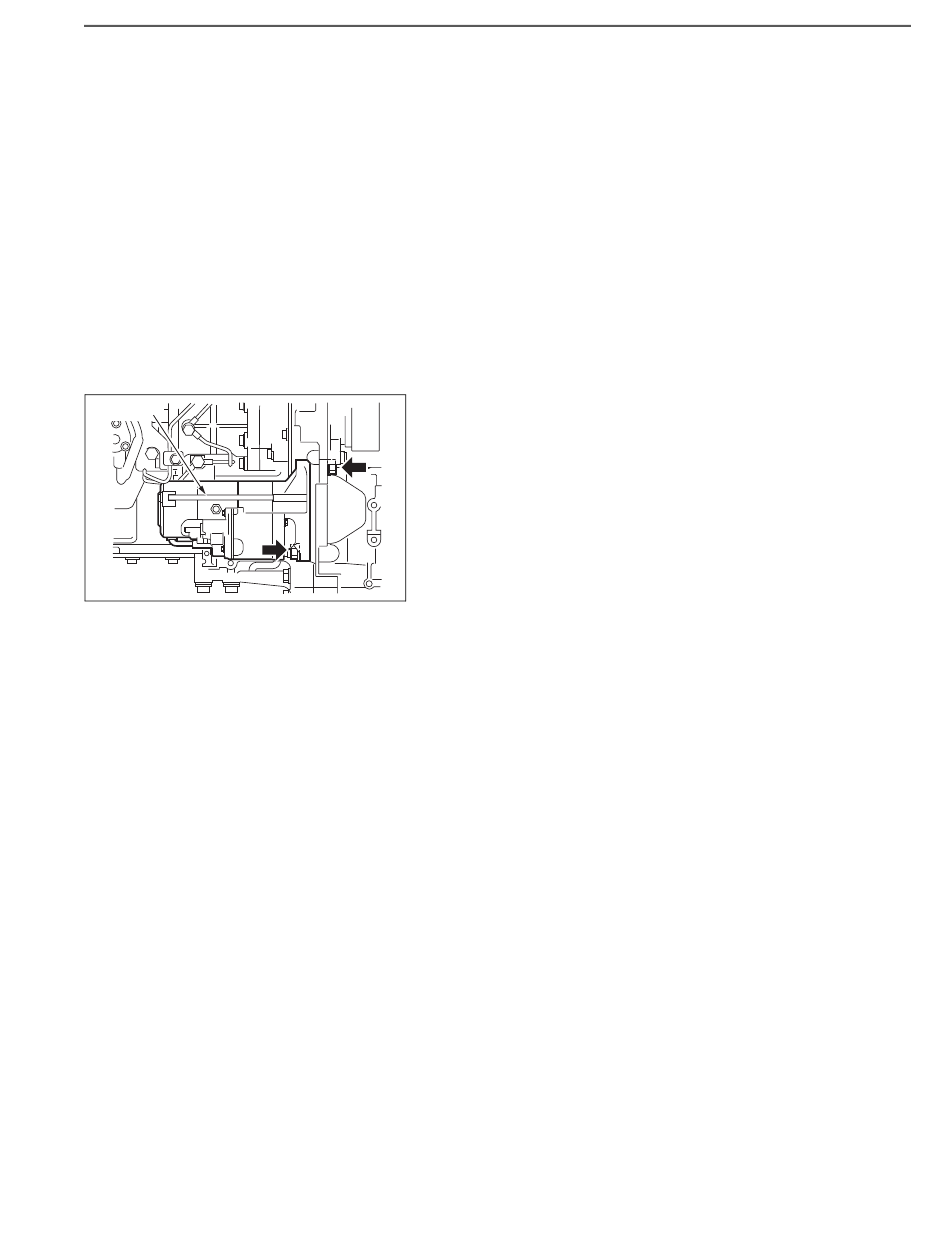

(1) Remove the nut, bolt and the starter assembly.
SHTS021271500002
