SUPPORT
BRACKET
177-191mm {6.97-7.52 in.}
BELLOWS
233mm{9.17 in.}
EXHAUST (J05E)

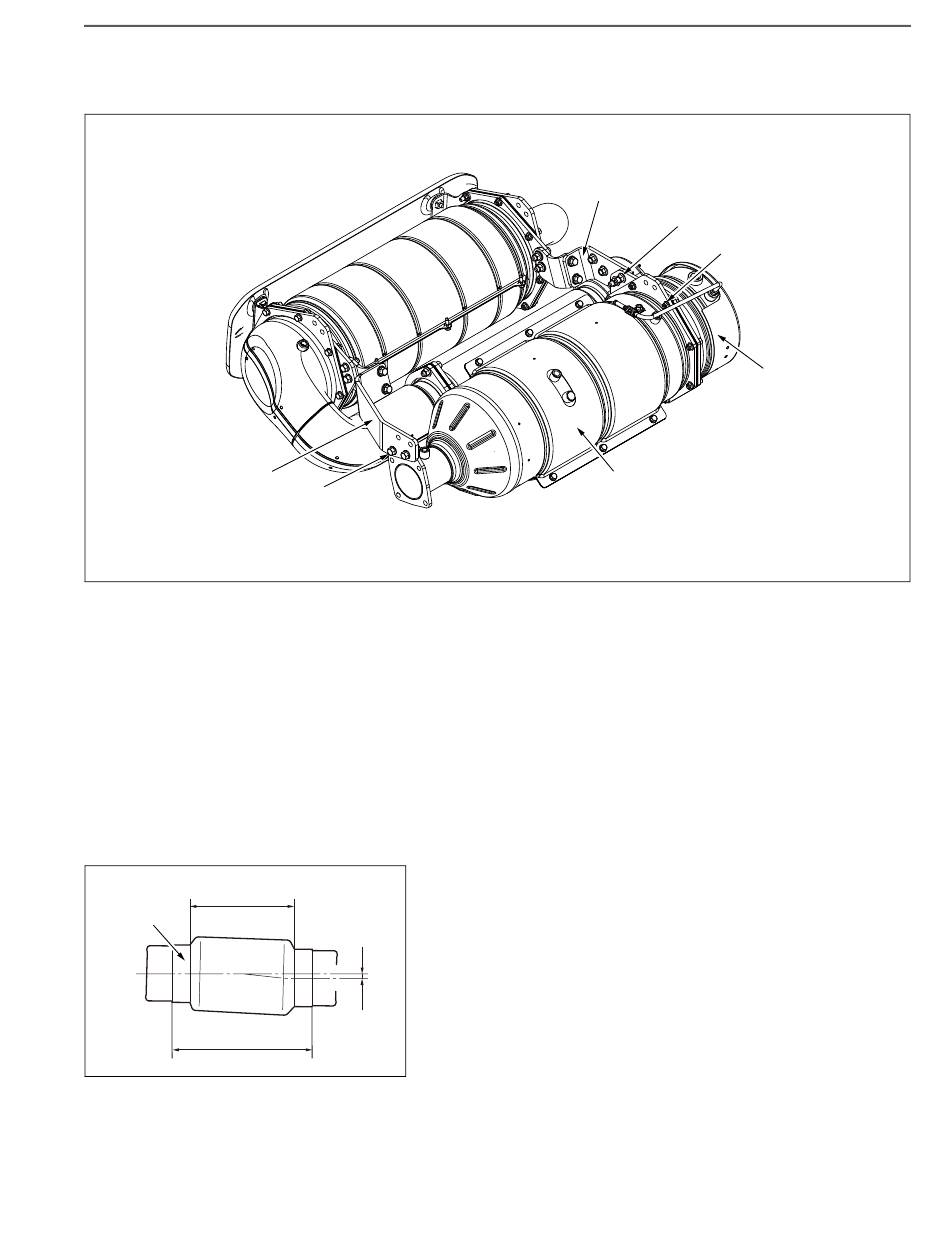

2. TIGHTENING THE DPR CLEANER FULLY
(1) Permanently tighten the temporarily tightened bolts and nuts.
B
a. Center pipe No.1 - DPR cleaner (part A)
Tightening Torque:
20-30 N·m {204-306 kgf·cm, 14.7-22.1 lbf·ft}
b. DPR cleaner - support bracket (part B)
Tightening Torque:
43-59 N·m {438-602 kgf·cm, 31.7-43.5 lbf·ft}
3. MOUNTING THE FRONT EXHAUST PIPE
Reference: EXHAUST (J05E), EXHAUST PIPE, REPLACE-
MENT, MOUNTING THE EXHAUST SYSTEM COMPONENT
PARTS (Page 11-12)
4. INSPECTING THE EXHAUST FLEXIBLE AREA MOUNTING
CONDITION
(1) Check and confirm if the exhaust flexible area is mounted as
shown in the figure.
BELOW
7mm{0.28 in.}
SHTS021271000054
SUPPORT
BRACKET
B
A
CENTER
PIPE No.1
DPR CLEANER
11–39
