Hino S5-LJ05E04A Workshop Manual page 251

9–10
DIESEL
THROTTLE
INTAKE
MANIFOLD
DIESEL
THROTTLE
INTAKE (J05E)

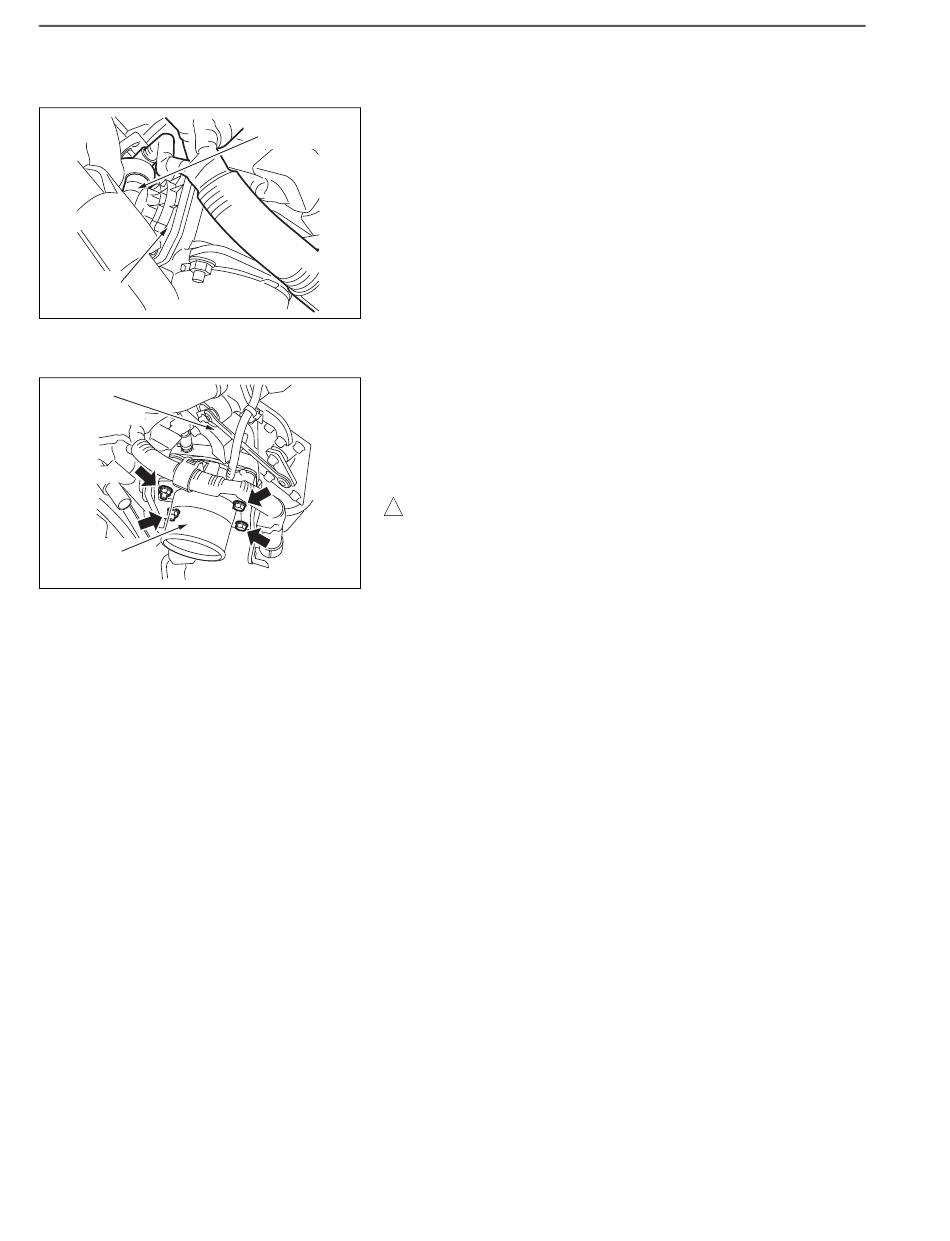

MOUNTING THE DIESEL THROTTLE
1. CONNECTING THE HARNESS
(1) Connect the connector to the diesel throttle.
CONNECTOR
SHTS021270800014
2. MOUNTING THE DIESEL THROTTLE
(1) Replace the gasket with a new one, temporarily fasten the diesel
throttle to intake manifold with 2 bolts and 2 nuts, and tighten
them to the specified torque in a crisscross pattern.
Tightening Torque:
28.5 N·m {291 kgf·cm, 21 lbf·ft}
! CAUTION
•
When assembling the diesel throttle, exercise care not to
impose an impact on the valve. Do not use the diesel throttle
if an impact is imposed on the valve.
•
If any portion of the gasket remains on the diesel throttle set-
SHTS021270800015
ting face of the intake pipe, remove it before attaching the
diesel throttle.
3. MOUNTING THE INTERCOOLER HOSE (OUTLET HOSE)
Reference: COOLING (J05E), INTERCOOLER, OVERHAUL,
MOUNTING THE INTERCOOLER (Page 12-22)
