Hino S5-LJ05E04A Workshop Manual page 352

10–76
MAIN IDLE GEAR
THRUST
PLATE
THRUST
PLATE
SYLINDER
BLCOCK
DETAIL VIEW
CRANKSHAFT GEAR
LINE DRILLED
HOLES UP
ENGINE MECHANICAL (J05E)
3.
(1)
(2)
MAIN IDLE
GEAR SHAFT
BOLT
SHTS021270900161
(3)
MAIN IDLE GEAR
MAIN IDLE GEAR
SHAFT
OIL HOLES
SHTS021270900162
SUB IDLE
GEAR
OIL PUMP
GEAR
MAIN IDLE
GEAR
SHTS021270900163

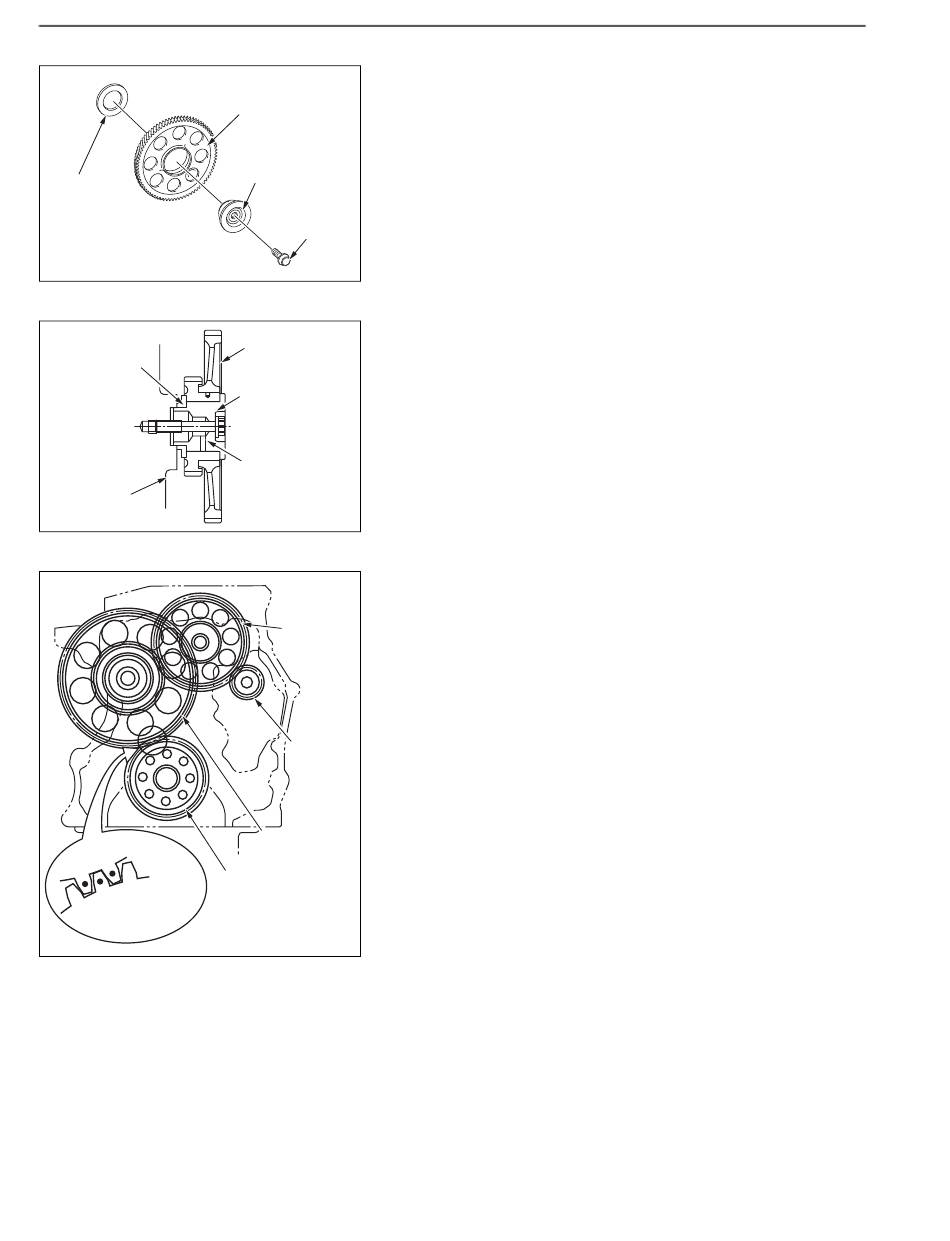

MOUNTING THE MAIN IDLE GEAR
Mount the main idle gear shaft to the main idle gear.
Mount the thrust plate.
After applying engine oil to the seating surface and threads of the
idle gear shaft mounting bolt, orient an oil hole in the idle gear
shaft to the oil pan (downward direction) and synchronize timing
between the crankshaft gear and the main idle gear before instal-
lation.
