Replacement - Hino S5-LJ05E04A Workshop Manual

ENGINE MECHANICAL (J05E)
SHTS021270900242
FRONT OF ENGINE
SHTS021270900243

REPLACEMENT

REMOVING THE CRANKSHAFT
1. REMOVING THE CYLINDER HEAD ASSEMBLY
Reference: ENGINE MECHANICAL (J05E), CYLINDER HEAD
ASSEMBLY, REPLACEMENT, REMOVING THE CYLINDER
HEAD ASSEMBLY (Page 10-23)
2. REMOVING THE PISTON AND CONNECTING ROD
Reference: ENGINE MECHANICAL (J05E), PISTON AND CON-
NECTING ROD, OVERHAUL, DISASSEMBLING THE PISTON
AND CONNECTING ROD (Page 10-87)
3. REMOVING THE FRONT OIL SEAL RETAINER
Reference: ENGINE MECHANICAL (J05E), CRANKSHAFT
FRONT OIL SEAL, REPLACEMENT, REMOVING THE CRANK-
SHAFT FRONT OIL SEAL (Page 10-50)
4. REMOVING THE FLYWHEEL HOUSING
Reference: ENGINE
HOUSING, REPLACEMENT, REMOVING THE FLYWHEEL
HOUSING (Page 10-66)
5. INSPECTING THE END PLAY

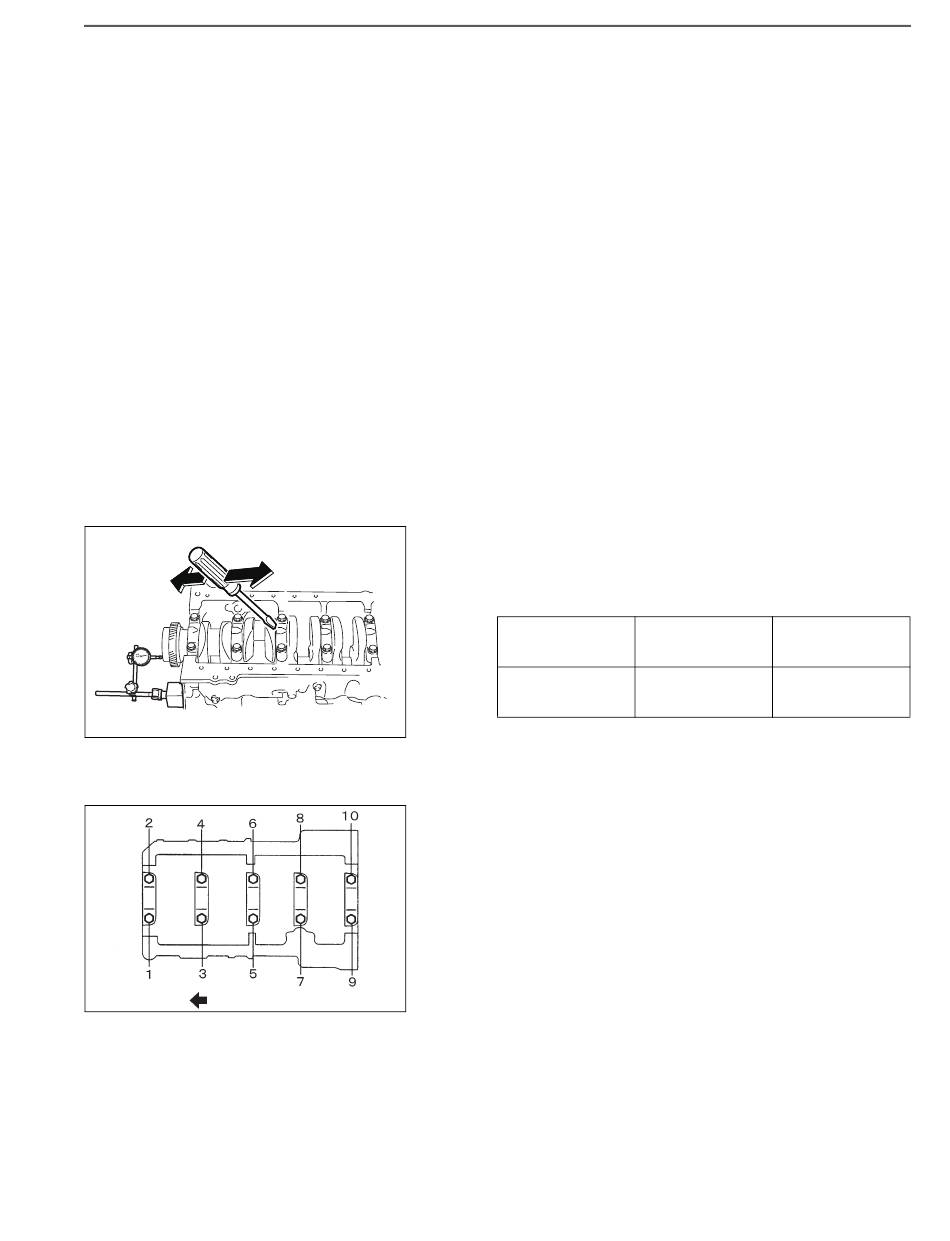

(1) Use the dial gauge to measure end play of the crankshaft. If a
measurement reading exceeds the repair limit, replace the thrust
bearings. If a measurement reading exceeds the permissible limit,
replace the thrust bearings and crankshaft.
Standard value
(mm {in.})
0.050-0.270
{0.0020-0.0106}
NOTICE
Thrust bearing standard width: 2.5 mm {0.0984 in.}
6. REMOVING THE CRANKSHAFT
(1) Loosen the main bearing cap bolt gradually in the sequential
order shown in the figure (rotate to a 1/4 turn at a time) and
remove it.
EN01F02127090402028002
MECHANICAL (J05E),
Repair limit (mm Permissible limit
{in.}) (mm {in.})
0.500 {0.0197} 1.270 {0.05}
10–103
FLYWHEEL
