177-191mm {6.97-7.52 in.}
FLEXIBLE
AREA
233mm{9.17 in.}
EXHAUST (J05E)

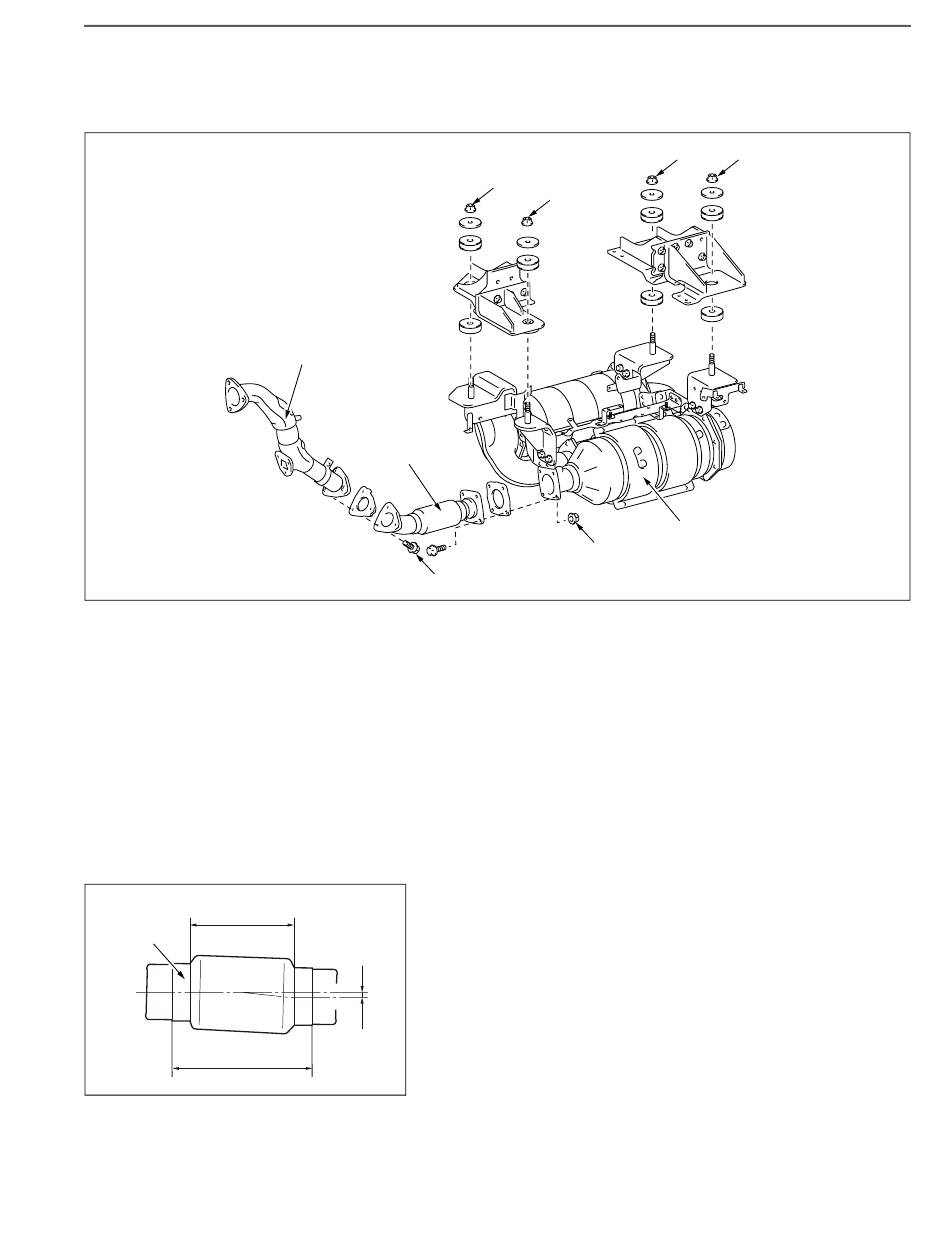

3. FULLY TIGHTENING EXHAUST SYSTEM COMPONENTS
(1) Fully tighten the connecting bolts between the pipes from the
engine side in order.
EXHAUST PIPE
(ATC)
FRONT
EXHAUST
PIPE
A
a. Exhaust pipe (ATC) to front exhaust pipe (part A)
Tightening Torque:
43 N·m {438 kgf·cm, 31.7 lbf·ft}
b. Front exhaust pipe to muffler (part B)
Tightening Torque:
64 N·m {653 kgf·cm, 47.2 lbf·ft}
(2) Tighten the muffler fully.
a. Muffler (part C)
Tightening Torque:
82 N·m {836 kgf·cm, 60.5 lbf·ft}
4. INSPECTING THE EXHAUST FLEXIBLE AREA MOUNTING
CONDITION
(1) Check if the exhaust flexible area is mounted as shown in the fig-
ure.
BELOW
7mm{0.28 in.}
SHTS021271000020
C
C
B
C C
MUFFLER
SHTS021271000019
11–13
