Replacement - Hino S5-LJ05E04A Workshop Manual

EXHAUST PIPE
(ATC)
EXHAUST PIPE
(ATC)
CLAMP
EXHAUST (J05E)

REPLACEMENT

REMOVING THE EXHAUST PIPE (ATC)
1.
NOTICE
The ATC will have to be replaced together with the exhaust pipe
(ATC).
2.
3.
4.
5.
(1)
EXHAUST BRAKE
(2)
BRACKET
SHTS021271000026
REFERENCE
DISCONNECTING THE FRONT EXHAUST PIPE
Reference: EXHAUST (J05E), EXHAUST PIPE, REPLACE-
MENT, REMOVING THE EXHAUST SYSTEM COMPONENT
PARTS (Page 11-9)
REMOVING THE FUEL ADDITION VALVE
Reference: EXHAUST (J05E), FUEL ADDITION VALVE,
REPLACEMENT, REMOVING THE FUEL ADDITION VALVE
(Page 11-50)
REMOVING THE ATC UPSTREAM TEMPERATURE SENSOR
Reference: EXHAUST (J05E), ATC UPSTREAM TEMPERA-
TURE SENSOR, REPLACEMENT, REMOVING THE ATC
UPSTREAM TEMPERATURE SENSOR (Page 11-105)

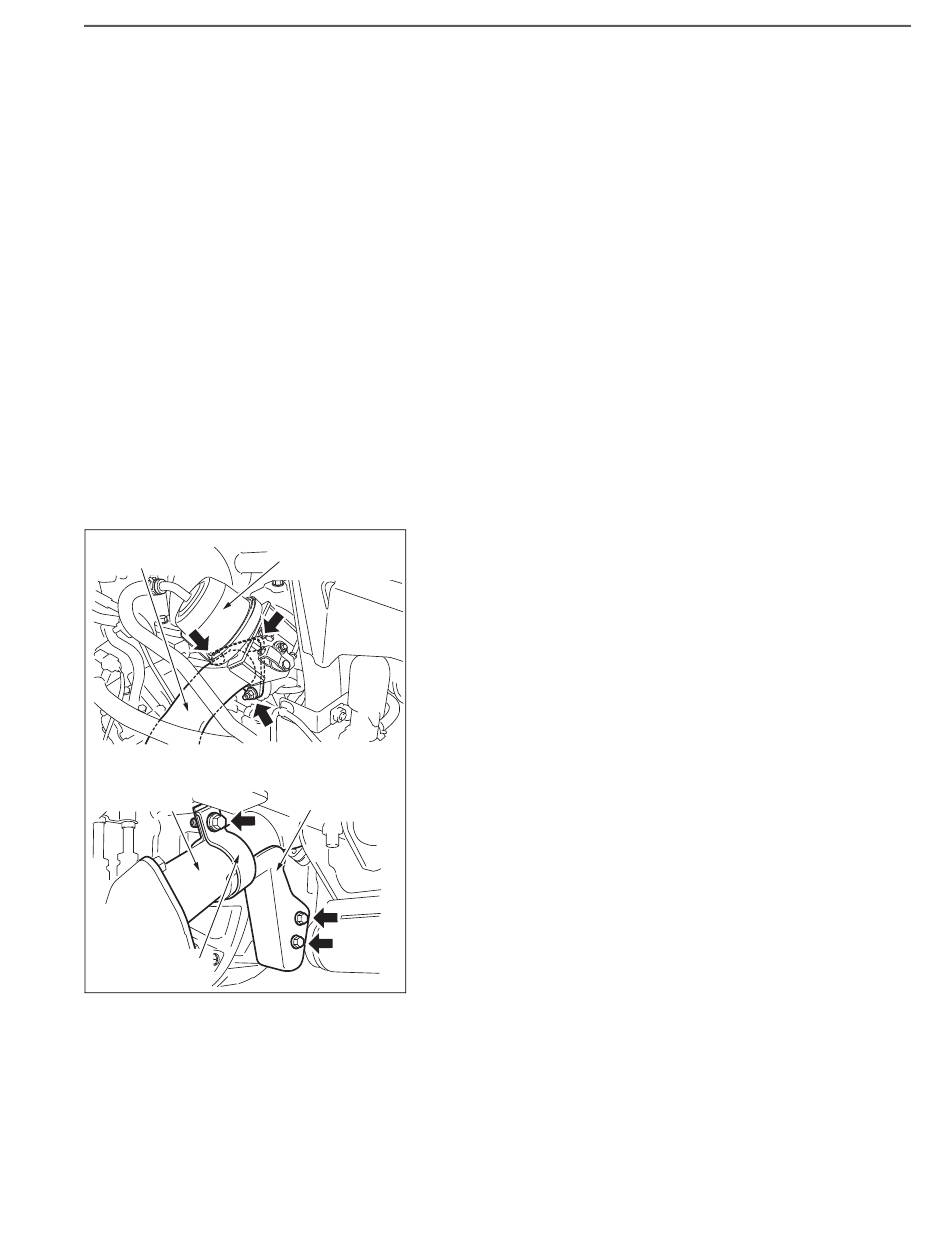

REMOVING THE EXHAUST PIPE (ATC)
Unfasten the bolts (3 pcs.) to remove the bracket and clamp from
the exhaust pipe (ATC).
Unfasten the 3 nuts to remove the exhaust pipe (ATC) and gasket
from the exhaust brake.
11–17
