Hino S5-LJ05E04A Workshop Manual page 567

12–32
COOLANT PUMP
CYLINDER
BLOCK
COOLANT
PUMP
COOLING (J05E)

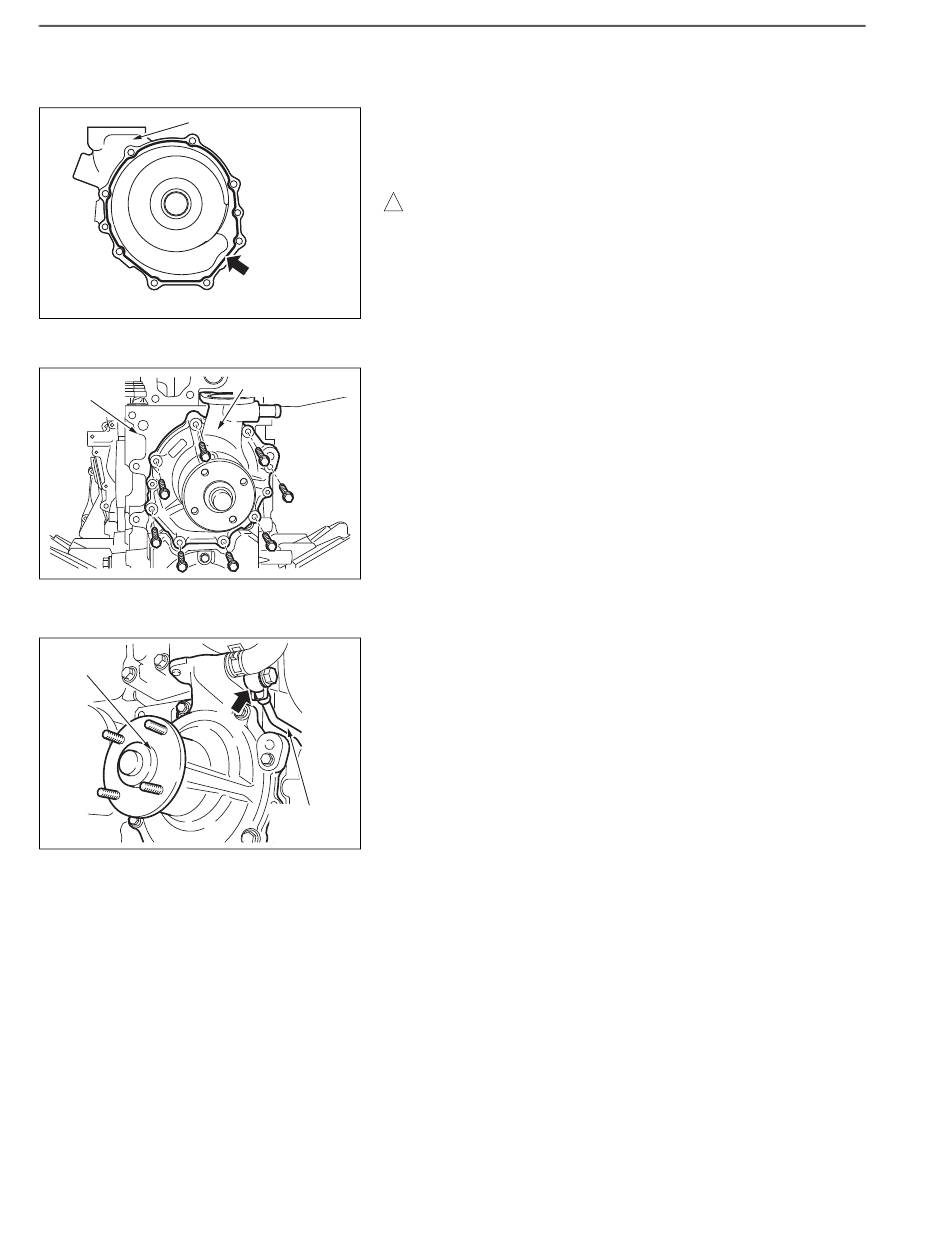

MOUNTING THE COOLANT PUMP
1.
(1)
(2)
! CAUTION
•
•
•
SHTS021271100055
(3)
COOLANT PUMP
NOTICE
Mount the coolant pump using guide bolts to avoid misalignment
of the liquid gasket.
SHTS021271100056
2.
(1)
COOLANT
PIPE B
SHTS021271100057
3.
4.
5.
MOUNTING THE COOLANT PUMP
Use the scraper, remove dirt on the joint surface between the
coolant pump and cylinder block.
Apply liquid gasket (ThreeBond TB1207B: Black or equivalent) to
the coolant pump as shown in the figure.
Apply the liquid gasket seamlessly.
Apply the liquid gasket with a 1.5 mm {0.060 in.} width.
Mount the case within 20 minutes after applying the liquid
gasket.
Align with the cylinder block dowel pin, mount the coolant pump
with bolts (8 pcs.).
Tightening Torque:
28.5 N·m {291 kgf·cm, 21 lbf·ft}
CONNECTING THE COOLANT PIPE
Replace with the new gasket and mount the coolant pipe B to the
coolant pump with a union bolt.
MOUNTING THE CRANKSHAFT PULLEY
Reference: ENGINE MECHANICAL (J05E), CRANKSHAFT
PULLEY, REPLACEMENT, MOUNTING THE CRANKSHAFT
PULLEY (Page 10-48)
MOUNTING THERMOSTAT CASE AND THERMOSTAT
Reference: COOLING (J05E), THERMOSTAT CASE AND
THERMOSTAT, OVERHAUL,
CASE AND THERMOSTAT (Page 12-27)
ADDING THE COOLANT
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
MOUNTING THE RADIATOR (Page 12-9)
MOUNTING THERMOSTAT
