86 POLE CONNECTOR
SLIDE
53 POLE CONNECTOR
SLIDE
NORMAL
INCLINED
EXHAUST (J05E)

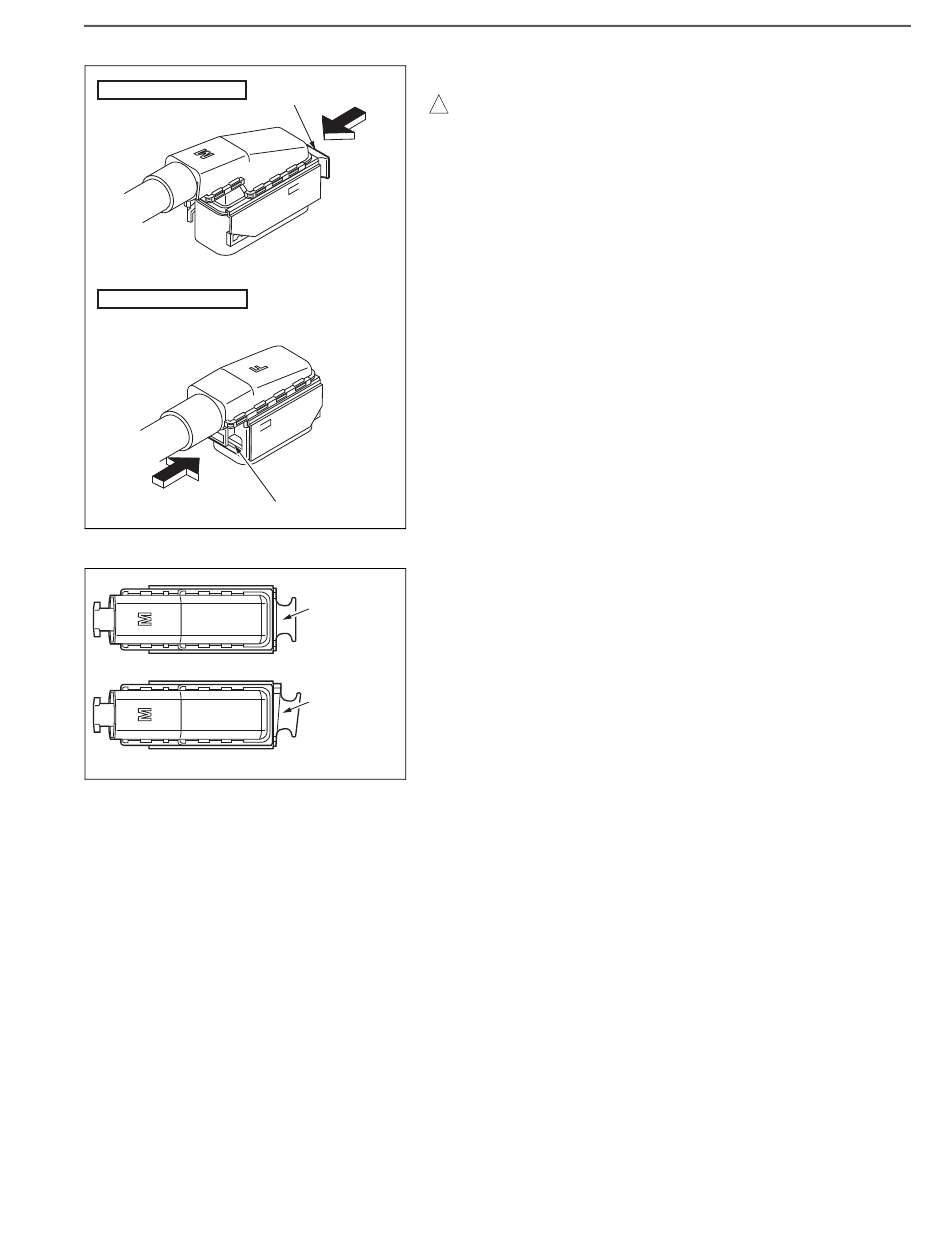

(3) Connect the connector by moving the slide in the direction of the
arrow as shown in the figure until a "click" is heard.
! CAUTION
• If the slide cannot move smoothly, repeat steps (1) and (2).
SHTS021271000166
•
Securely insert the slide part and the connector in parallel
since the slide part may tilt causing a gap between the slide
and the connector.
SLIDE PART
SLIDE PART
SHTS021271000167
