HOSE
HOSE
COOLING (J05E)

REPLACEMENT

REMOVING THE RESERVE TANK
1. DRAINING THE COOLANT
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
REMOVING THE RADIATOR (Page 12-5)

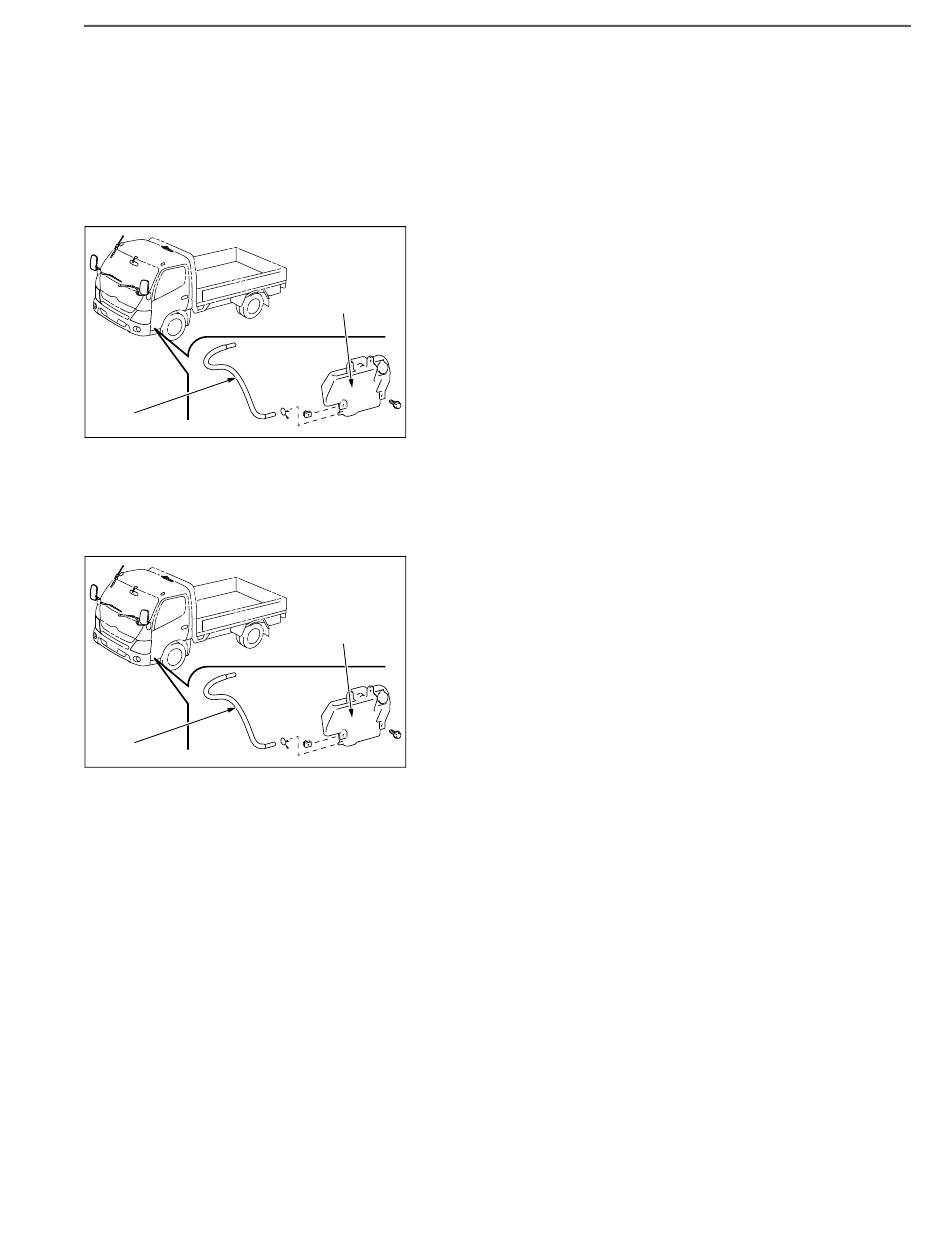

2. REMOVING THE RESERVE TANK
(1) Disconnect the hose from the reserve tank.
NOTICE
Prepare a reservoir and clean clothes to collect coolant dripping
from the reserve tank when disconnecting the hose.
RESERVE TANK
(2) Unfasten the 4 bolts to remove the reserve tank.
SHTS021271100028
MOUNTING THE RESERVE TANK
1. MOUNTING THE RESERVE TANK
(1) Mount the reserve tank with 4 bolts.
Tightening Torque:
3.5-6.5 N·m {36-66 kgf·cm, 2.6-4.7 lbf·ft}
RESERVATION
(2) Mount the hose to the reserve tank.
SHTS021271100029
2. ADDING THE COOLANT
(1) Add the coolant.
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
MOUNTING THE RADIATOR (Page 12-9)
12–19
