10–124
PLUG A
CRANKSHAFT
PULLEY SIDE
1.5-2.5 mm
0.5-1.0 mm
{0.0590-0.984 in.}
{0.0197-0.0394 in.}
THE SEALANT IS
SPREAD ON ALL
SURROUNDINGS
PLUG
CYLINDER
BLOCK
PLUG FOR OIL PASSAGE
SEALANT SPREADING POSITION
ENGINE MECHANICAL (J05E)

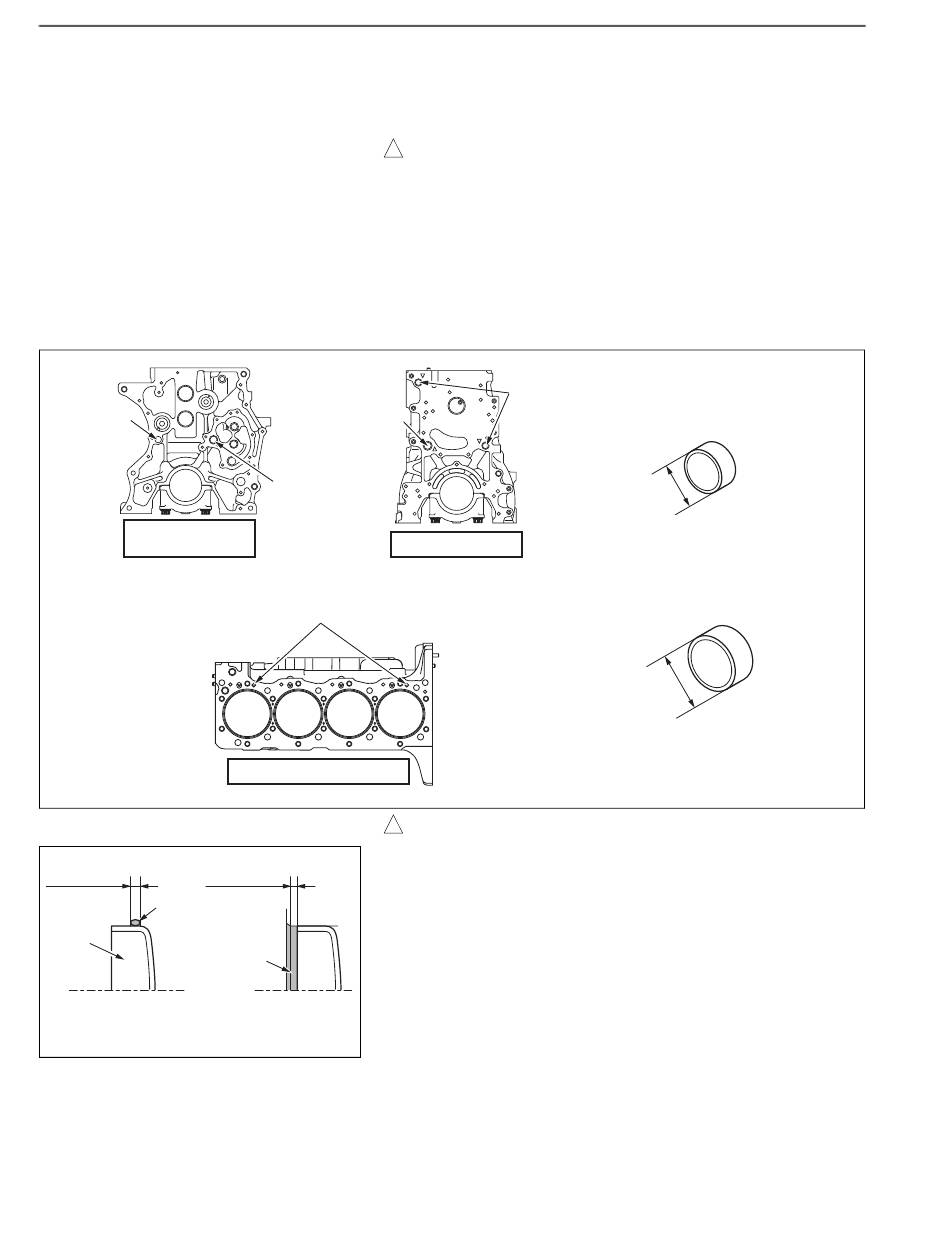

MOUNTING THE PLUGS
1.
(1)
! CAUTION
Tap in the dowel pin until it hits the bottom.
(2)
PLUG B
PLUG B
FLYWHEEL SIDE
DOWEL PIN
CYLINDER BLOCK TOP
! CAUTION
•
•
•
•
PLUG DRIVING
DEPTH FOR OIL
PASSAGE
SHTS021270900291
TAPPING IN THE DOWEL PIN AND PLUG
Tap in 2 dowel pins to the cylinder block upper surface.
Apply the sealant (Loctite 962T or ThreeBond #1211 or #1215) to
the plug As (3 pcs.) and plug Bs (2 pcs.) and tap them into the cyl-
inder block with a tapping tool.
SST: 09211-E4020
Plug A tapping tool
09211-E4030
Plug B tapping tool
PLUG A
17mm
{0.669 in. }
Apply the sealant with 1.5-2.5 mm {0.0590-0.0984 in.} width.
Tap in the plugs to a depth of 0.5-1.0 mm {0.0197-0.0394 in}
from the cylinder block end.
When tapping, do not allow the sealant to run over to the oil
groove.
When tapping, make sure not to crack the cylinder block by
applying excessive impact.
PLUG A
22mm
{0.866 in. }
PLUG B
SHTS021270900290
