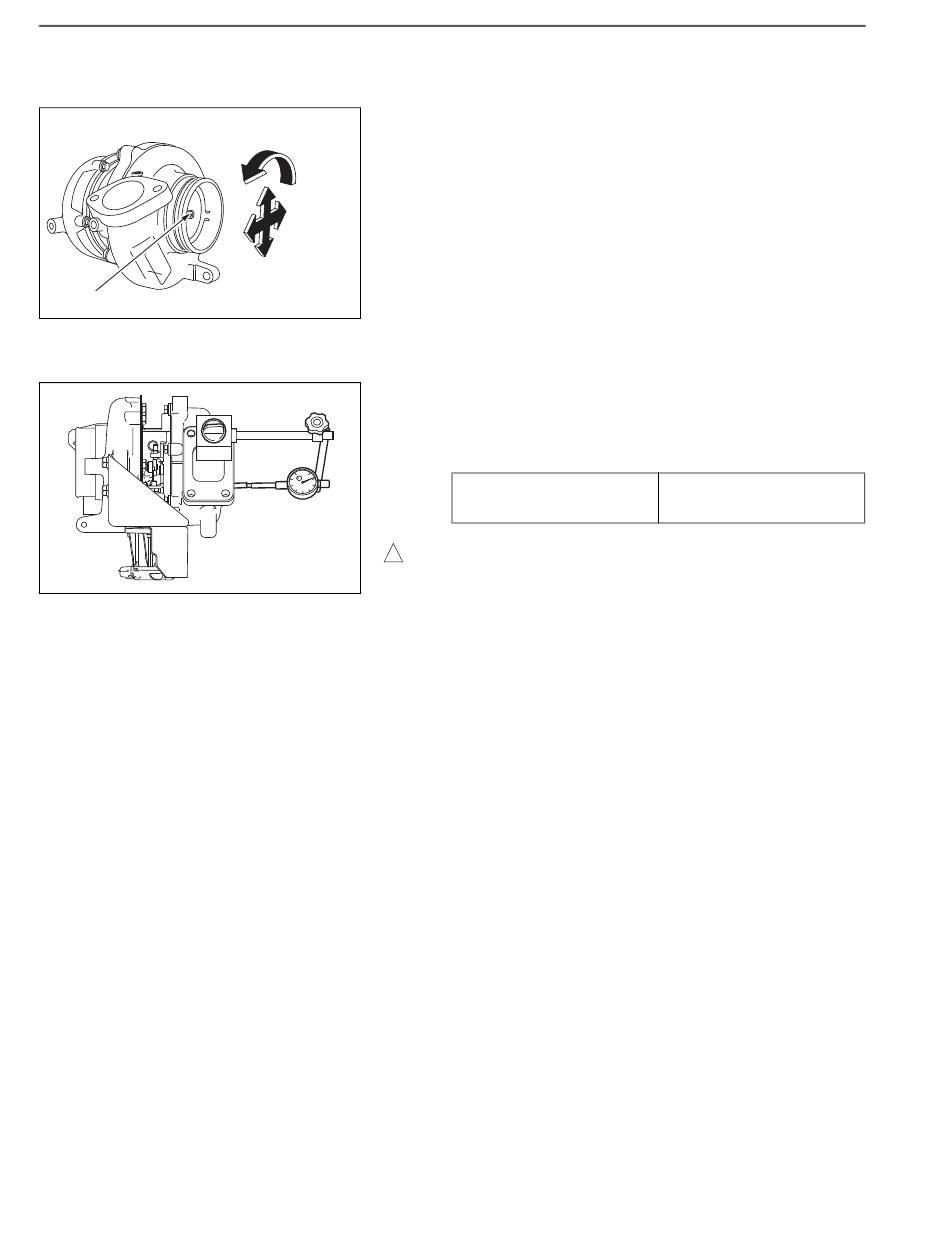

TURBOCHARGER (J05E)
INSPECTING THE TURBINE SHAFT
1.
(1)
(2)
RADIAL DIRECTION
SHTS021271600003
2.
(1)
(2)
! CAUTION
Turbocharger is replaced as assembly. Do not overhaul.
SHTS021271600004
SIMPLIFIED INSPECTION
Holding the blower impeller tip, inspect for rotating condition by
lightly rotating the turbine shaft by hand.
If the turbine shaft does not rotate or does not rotate smoothly, or
the blower impeller contacts with the blower case, replace the tur-
bocharger assembly.
INSPECTING THE TURBINE SHAFT PLAY IN THE AXLE
(THRUST) DIRECTION
Inspect the turbine shaft play on the exhaust side.
If a measurement reading exceeds the standard value, replace
the turbocharger assembly.
Standard value (mm {in.})
0.040-0.085
{0.0016-0.0033} or less
