Cleaning The Precleaner Housing - Hino S5-LJ05E04A Workshop Manual

9–16
STACK DUCT
PRECLEANER
HOUSING
STACK DUCT
STACK DUCT
INTAKE (J05E)

CLEANING THE PRECLEANER HOUSING

1.
(1)
PLATE
WING
SHTS021270800020
2.
(1)
! CAUTION
When cleaning the precleaner housing, exercise care not to allow
water to enter the air cleaner.
SHTS021270800021
3.
(1)
PLATE
WING
SHTS021270800022

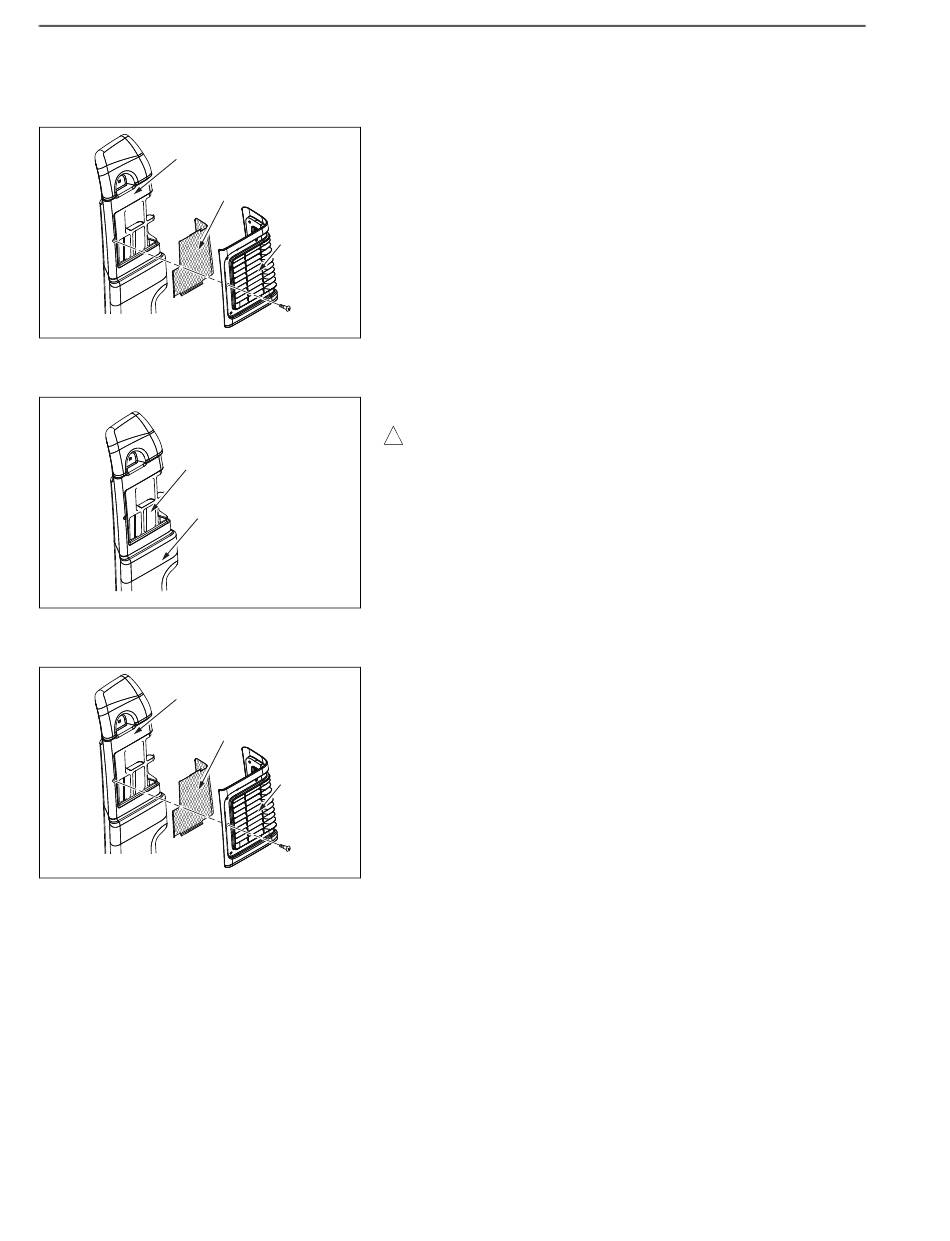

REMOVING THE WING
Unfasten the 8 screws, and remove the wing and plate from the
stack duct.
CLEANING THE PRECLEANER HOUSING
Clean the inside of the precleaner housing with a cloth.
MOUNTING THE WING
Mount the plate and the wing to the stack duct with 8 screws.
EN01F02114080402011002
