Hino S5-LJ05E04A Workshop Manual page 587

BOLT
OIL COOLER CASE
TURBO-
CHARGER
ASSEMBLY
COOLANT
PIPE D
FOLDER
OIL PRESSURE
SWITCH
LUBRICATION (J05E)

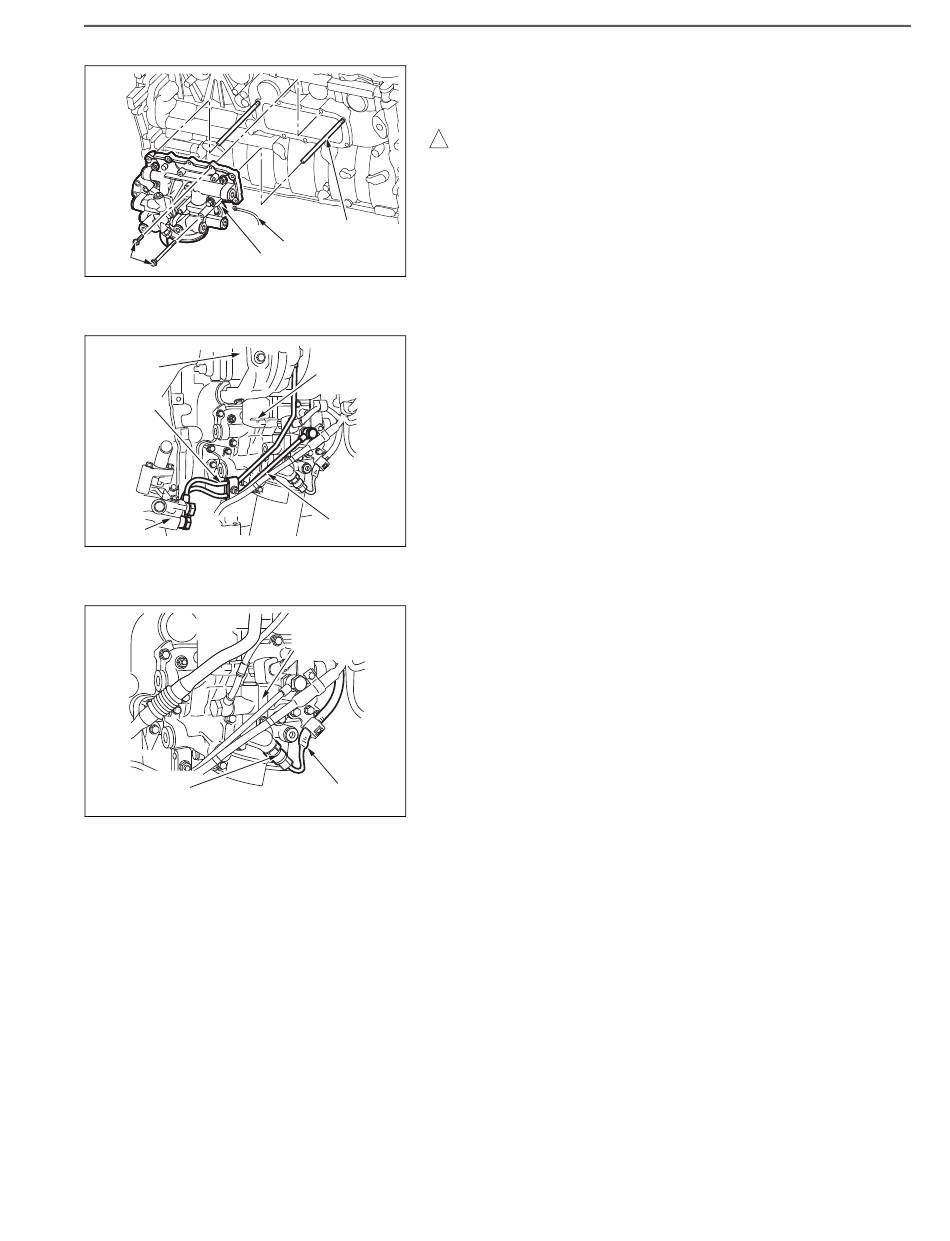

(6) Mount the oil cooler assembly to the cylinder block with 13 bolts.
Tightening Torque:
! CAUTION
Unfasten the 2 - 4 guide bolts after temporarily tightening 9 - 11 oil
cooler assembly mounting bolts.
NOTICE
Tighten together with the alternator earth cable at one place.
GUIDE BOLTS
EARTH CABLE
SHTS021271200026
2. MOUNTING THE COOLANT PIPE
(1) Replace with the new gaskets (4 pcs.) and connect the coolant
OIL COOLER
pipe E to the folder and oil cooler assembly with union bolts (2
ASSEMBLY
pcs.).
(2) Replace with the new gaskets (4 pcs.) and connect the coolant
pipe D to the folder and turbocharger assembly with union bolts (2
pcs.).
(3) Mount the clip with the nut and secure coolant pipe D and the
coolant pipe E.
COOLANT
PIPE E
SHTS021271200027
3. CONNECTING THE HARNESS
(1) Mount the harness to the oil cooler assembly.
OIL COOLER
(2) Connect the connector to the oil pressure switch.
ASSEMBLY
4. MOUNTING THE TURBOCHARGER ASSEMBLY
(1) Mount the turbocharger assembly.
Reference:
ASSEMBLY, REPLACEMENT, MOUNTING THE TURBO-
CHARGER ASSEMBLY (Page 17-9)
5. MOUNTING THE OIL FILTER
HARNESS
(1) Using the SST, mount the oil filter to the oil cooler assembly.
Reference: LUBRICATION (J05E), OIL FILTER, REPLACE-
SHTS021271200028
MENT, MOUNTING THE OIL FILTER (Page 13-5)
6. FEEDING ENGINE OIL
(1) Add engine oil through an oil filler.
Reference: MOUNTING AND DISMOUNTING THE ENGINE
(J05E), ENGINE ASSEMBLY, REPLACEMENT, NEXT STEPS
AFTER INSTALLATION (Page 5-14)
7. ADDING THE COOLANT
(1) Add the coolant.
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
MOUNTING THE RADIATOR (Page 12-9)
28.5 N·m {291 kgf·cm, 21 lbf·ft}
TURBOCHARGER
13–13
(J05E), TURBOCHARGER
