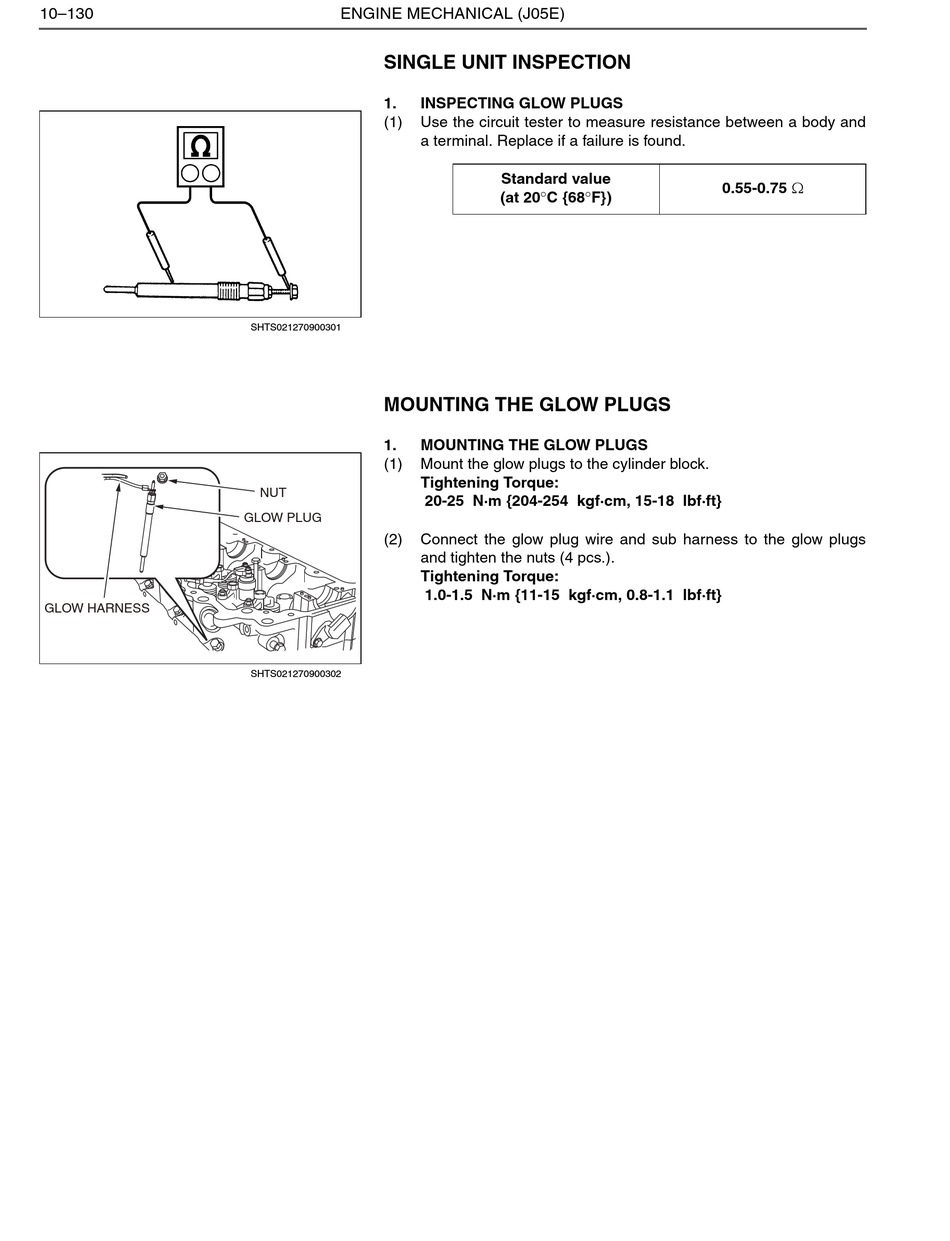

10–130
GLOW HARNESS
ENGINE MECHANICAL (J05E)
SINGLE UNIT INSPECTION
1. INSPECTING GLOW PLUGS
(1) Use the circuit tester to measure resistance between a body and
a terminal. Replace if a failure is found.
SHTS021270900301
MOUNTING THE GLOW PLUGS
1. MOUNTING THE GLOW PLUGS
(1) Mount the glow plugs to the cylinder block.
Tightening Torque:
NUT
GLOW PLUG
(2) Connect the glow plug wire and sub harness to the glow plugs
and tighten the nuts (4 pcs.).
Tightening Torque:
SHTS021270900302
Standard value
(at 20C {68F})
20-25 N·m {204-254 kgf·cm, 15-18 lbf·ft}
1.0-1.5 N·m {11-15 kgf·cm, 0.8-1.1 lbf·ft}
0.55-0.75 
