Hino S5-LJ05E04A Workshop Manual page 265

9–24
SINGLE CAB
AIR CLEANER
BODY ASSEMBLY
AIR CLEANER
ELEMENT
AIR CLEANER
BODY ASSEMBLY
CREW CAB
AIR CLEANER
ELEMENT
SINGLE CAB
COVER
CREW CAB
COVER
INTAKE (J05E)
2.
(1)
SEAL RUBBER
NOTICE
Before mounting the air cleaner element of the crew cab model,
insert it from the vehicle lower side, rotate it 90° to the left of the
vehicle around the air cleaner body assembly, and insert it to the
case.
AIR CLEANER
ELEMENT
SHTS021270800035
(2)
AIR CLEANER
BODY ASSEMBLY
AIR CLEANER
BODY ASSEMBLY
SHTS021270800036

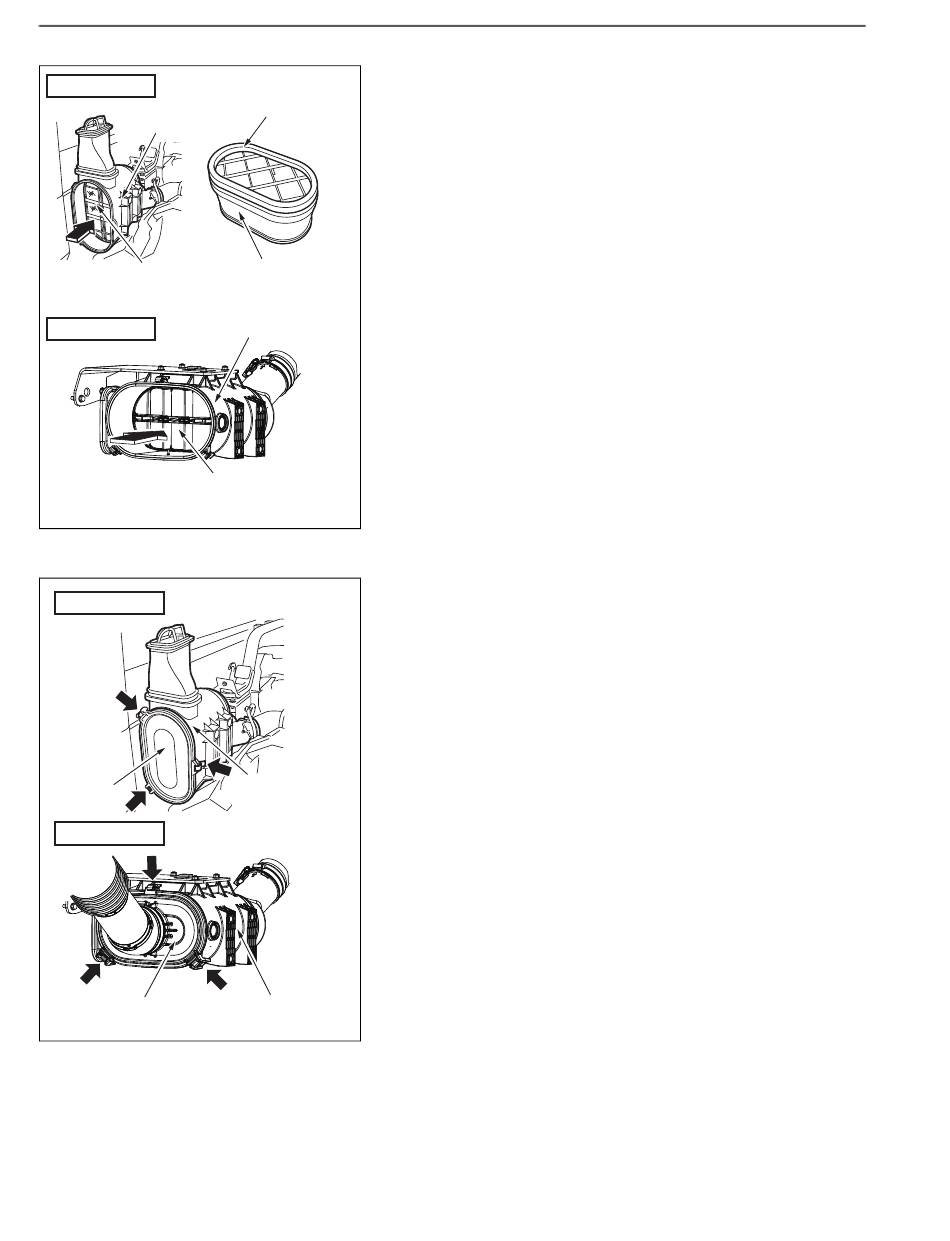

MOUNTING THE AIR CLEANER ELEMENT
Hold the grip at the center of the air cleaner element and insert
the seal rubber of the air cleaner element to the air cleaner body
assembly securely.
Mount the cover on the air cleaner body assembly with the clamps
(3 pcs.) that secured the cover.
