Fuel Cutoff Valve; Component Locator - Hino S5-LJ05E04A Workshop Manual

11–58

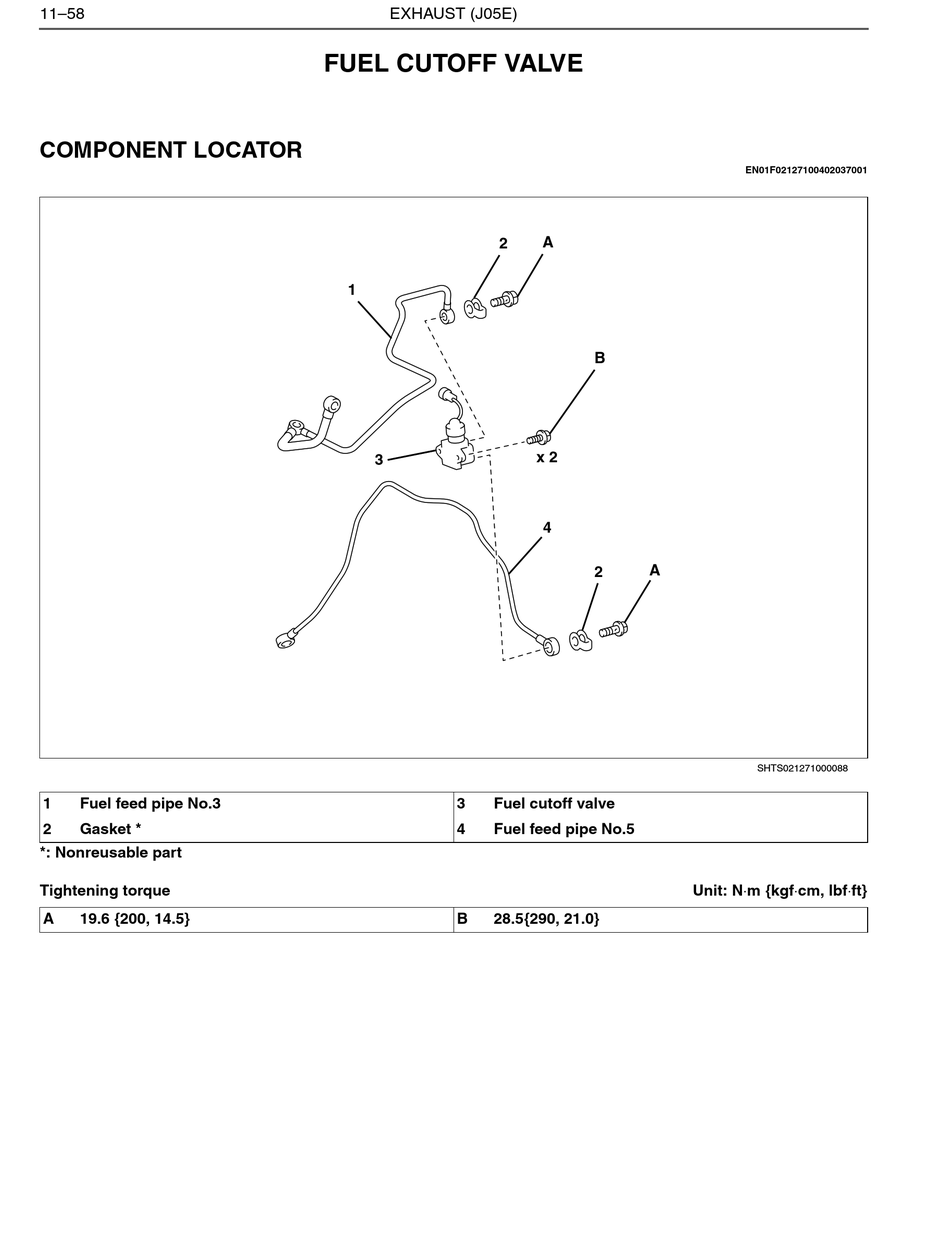

COMPONENT LOCATOR

1 Fuel feed pipe No.3
2 Gasket *
*: Nonreusable part
Tightening torque
A 19.6 {200, 14.5}
EXHAUST (J05E)

FUEL CUTOFF VALVE

2
1
3
3 Fuel cutoff valve
4 Fuel feed pipe No.5
B 28.5{290, 21.0}
A
B
x 2
4
A
2
Unit: Nm {kgfcm, lbfft}
EN01F02127100402037001
