Hino S5-LJ05E04A Workshop Manual page 349

SUB IDLE GEAR
SST
THRUST
PLATE
TORQUES
BOLT
IDLE GEAR SHAFT
ENGINE MECHANICAL (J05E)
3.
(1)
(2)
SUB IDLE
GEAR SHAFT
! CAUTION
Be careful not to drop the thrust plate and idle gear.
(3)
SUB IDLE
GEAR
SUB IDLE
GEAR SHAFT
BOLT
SHTS021270900152
4.
(1)
CYLINDER
(2)
BLOCK
REAR END
PLATE
SHTS021270900153
INSPECTING THE COMPONENTS
1.
(1)
SHTS021270900154

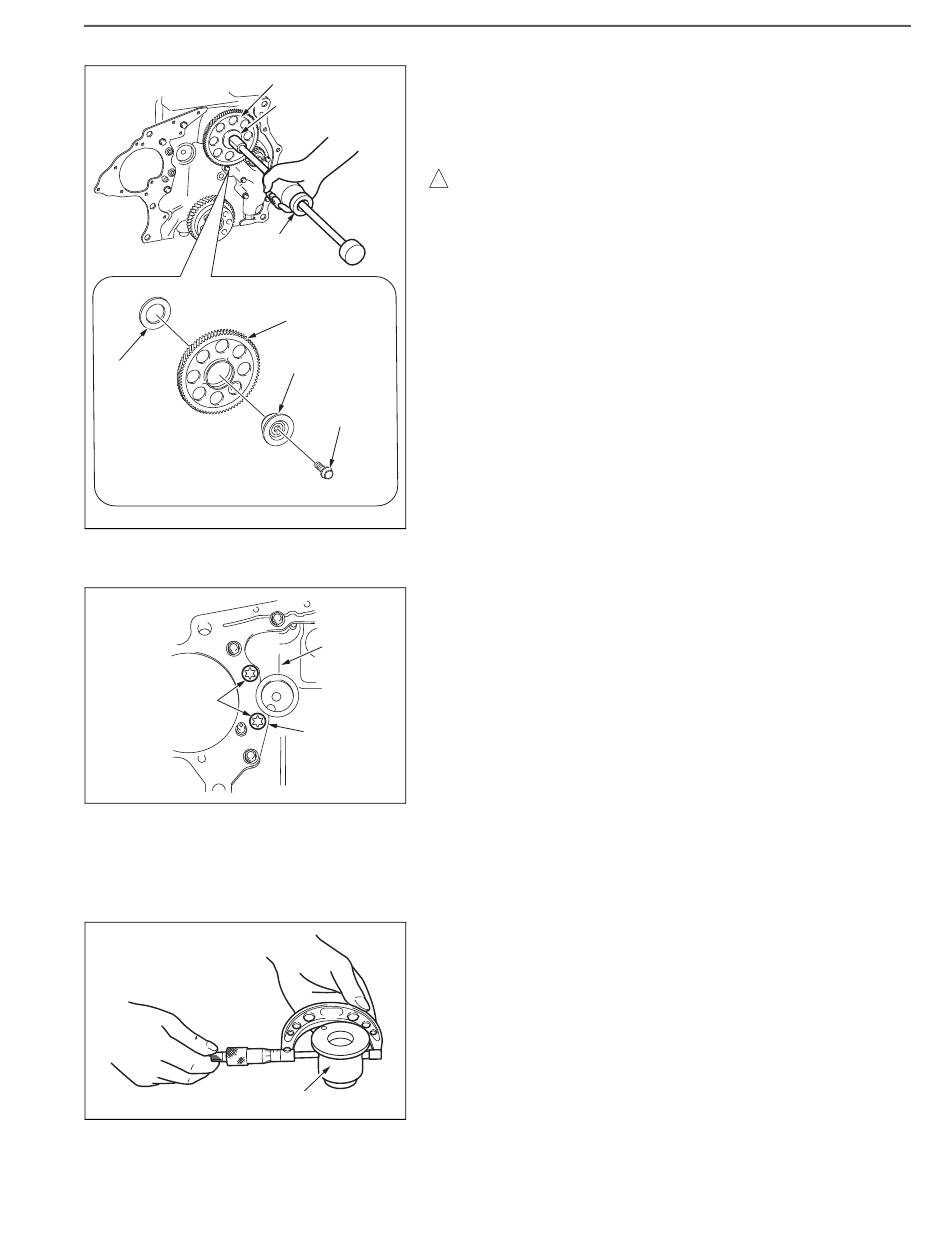

REMOVING SUB IDLE GEAR
Unfasten the bolt of the sub idle gear shaft.
Use the SST to pull off the sub idle gear shaft and remove the sub
idle gear shaft, sub idle gear, and thrust plate.
SST: S0942-01100
Sliding hammer
Remove the sub idle gear shaft and thrust plate from the sub idle
gear.
REMOVING REAR END PLATE
Use the SST to unfasten Torque bolts on the rear end plate.
SST: S0941-11300
Socket wrench
Unfasten the remaining bolts and remove the rear end plate.
INSPECTING IDLE GEAR OIL CLEARANCE
Use the micrometer to measure the idle gear shaft outer diameter.
10–73
