Inspection item
Resistance of field coil
Insulation resistance of
field coil
Resistance of stator
coil
Insulation resistance of
stator
Resistance of rectifier
(between B terminal
and heat sink)
Resistance of rectifier
(between (-) terminal
and heat sink)

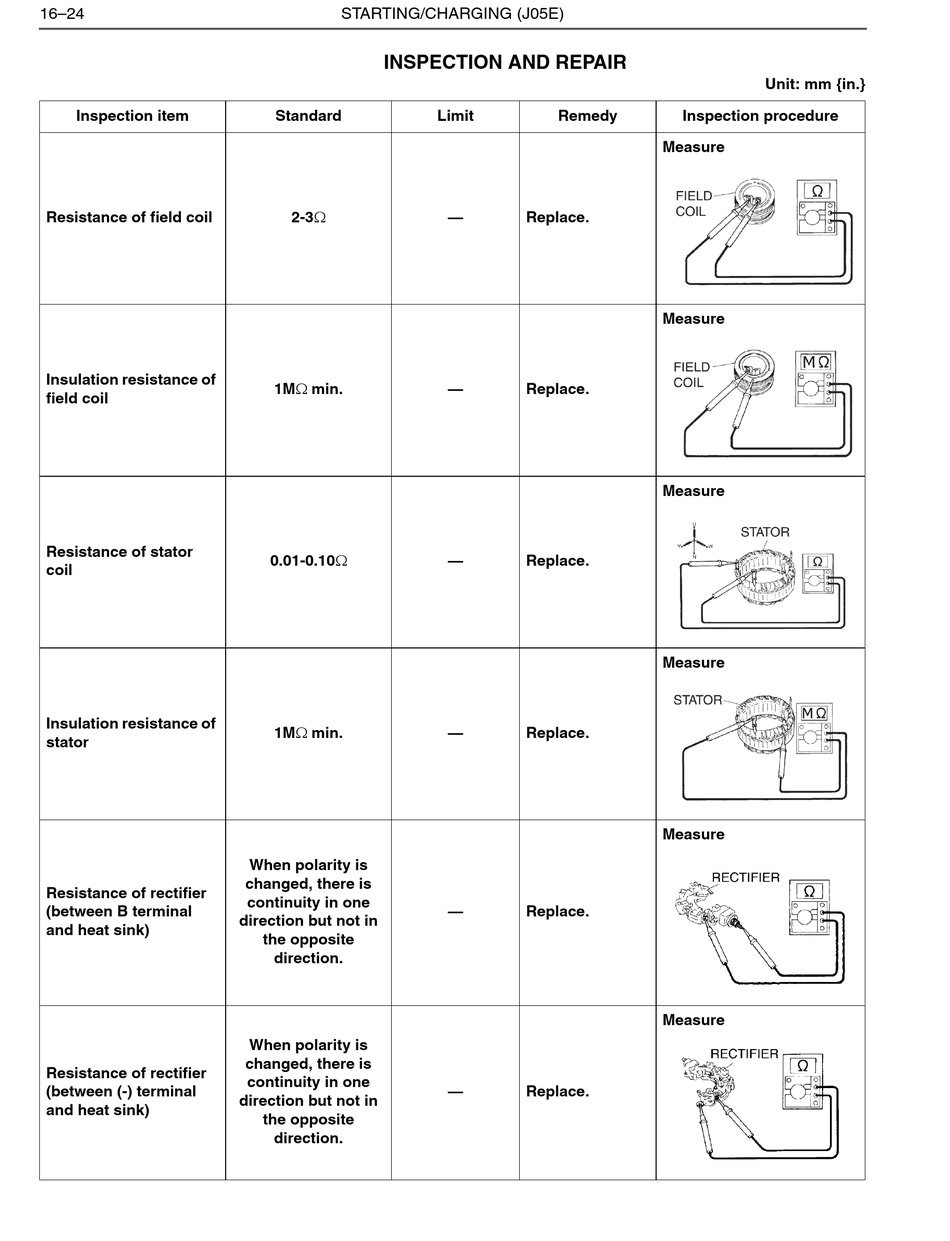

STARTING/CHARGING (J05E)
INSPECTION AND REPAIR
Standard
2-3
1M min.
0.01-0.10
1M min.
When polarity is
changed, there is
continuity in one
direction but not in
the opposite
direction.
When polarity is
changed, there is
continuity in one
direction but not in
the opposite
direction.
Limit Remedy
—
Replace.
—
Replace.
—
Replace.
—
Replace.
—
Replace.
—
Replace.
Unit: mm {in.}
Inspection procedure
Measure
Measure
Measure
Measure
Measure
Measure
