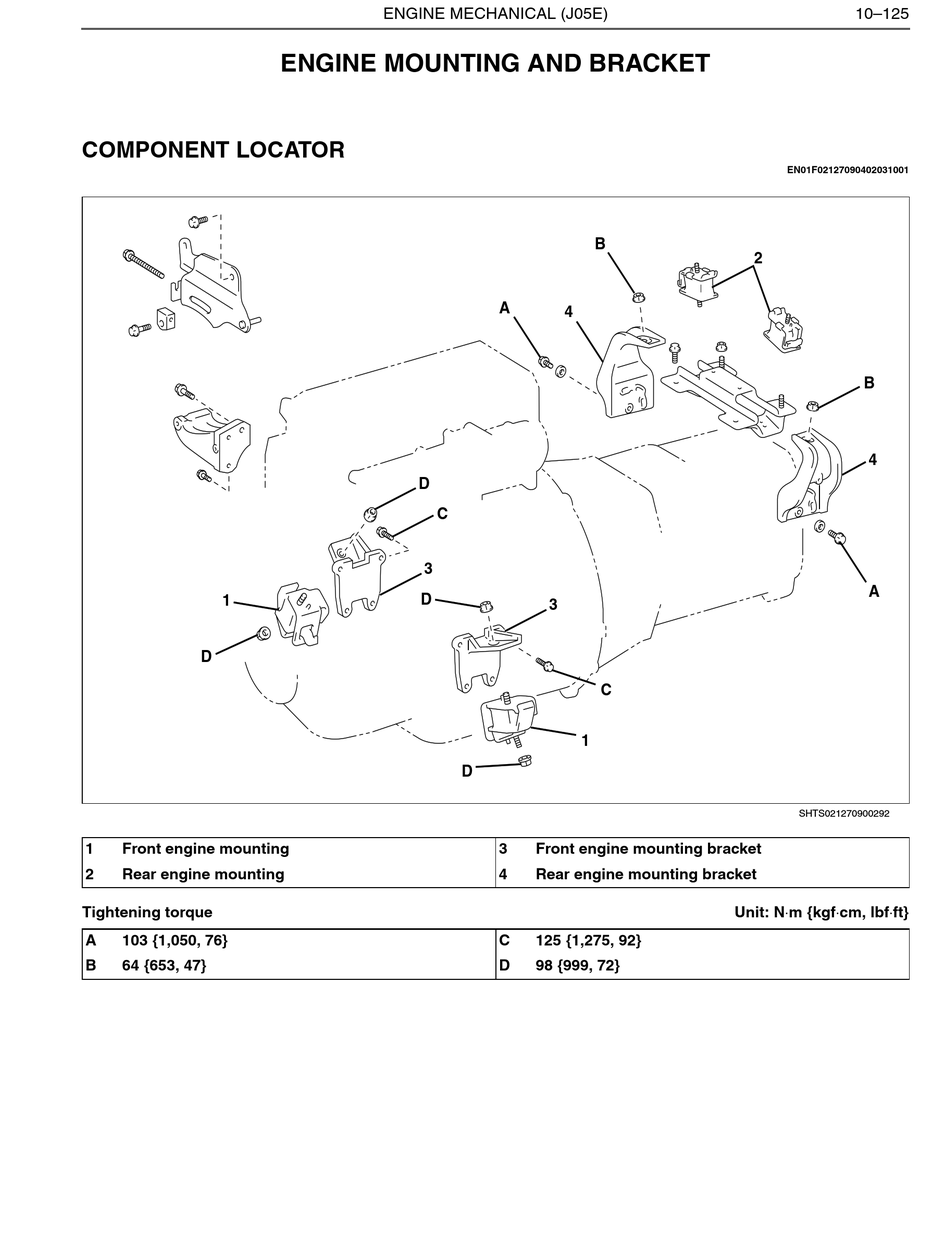

COMPONENT LOCATOR

1
D
1 Front engine mounting
2 Rear engine mounting
Tightening torque
A 103 {1,050, 76}
B 64 {653, 47}
ENGINE MECHANICAL (J05E)

ENGINE MOUNTING AND BRACKET

D
C
3
D
B
A
4
3
C
1
D
3 Front engine mounting bracket
4 Rear engine mounting bracket
C 125 {1,275, 92}
D 98 {999, 72}
10–125
EN01F02127090402031001
2
B
4
A
SHTS021270900292
Unit: Nm {kgfcm, lbfft}
