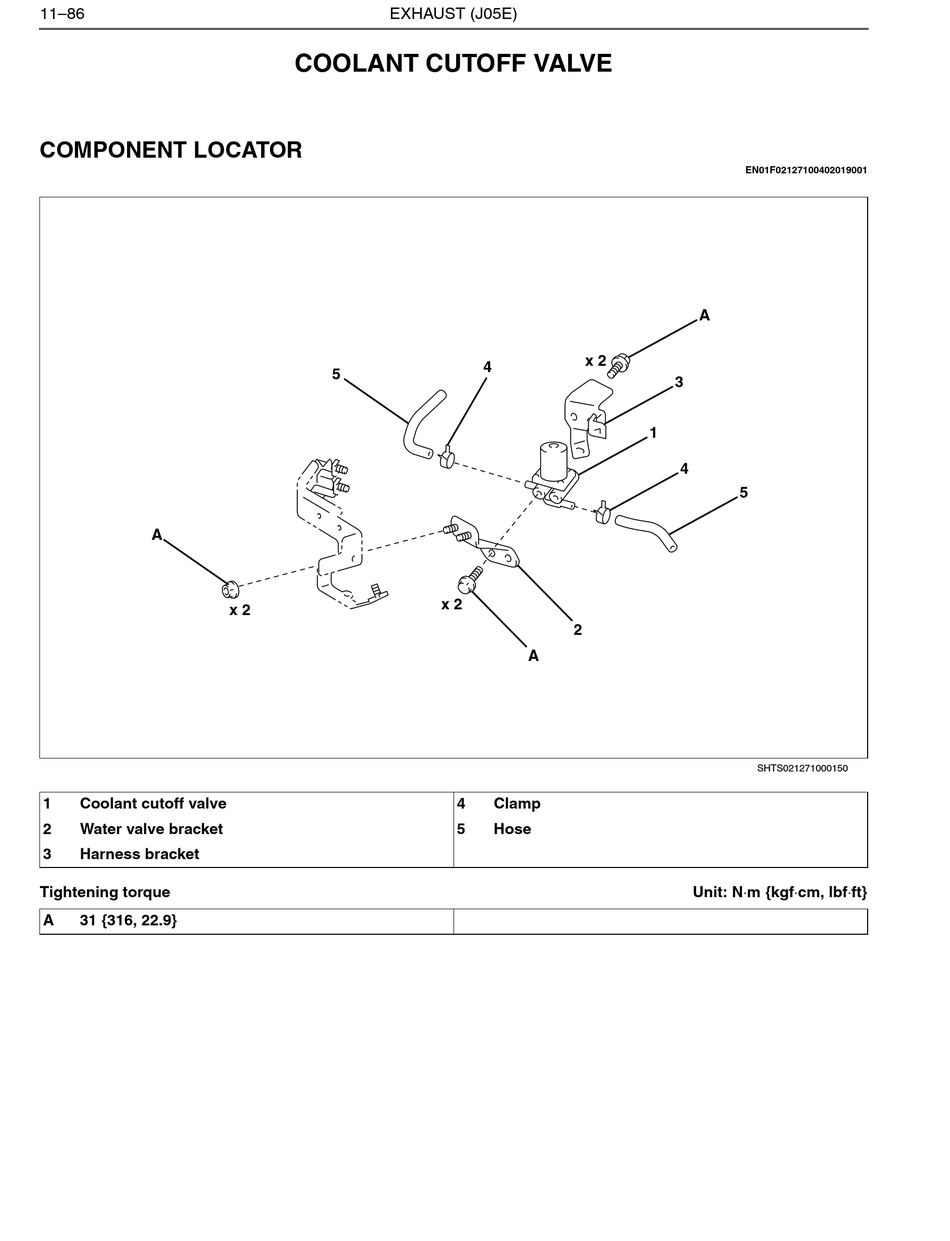

COMPONENT LOCATOR

A
1

Coolant cutoff valve

2 Water valve bracket
3 Harness bracket
Tightening torque
A 31 {316, 22.9}
EXHAUST (J05E)
COOLANT CUTOFF VALVE
5
x 2
x 2
4
x 2
2
A
4 Clamp
5 Hose
EN01F02127100402019001
A
3
1
4
5
SHTS021271000150
Unit: Nm {kgfcm, lbfft}
