Hino S5-LJ05E04A Workshop Manual page 238

8–14
VENTILATOR
HOSE B
SST
EMISSION CONTROL (J05E)

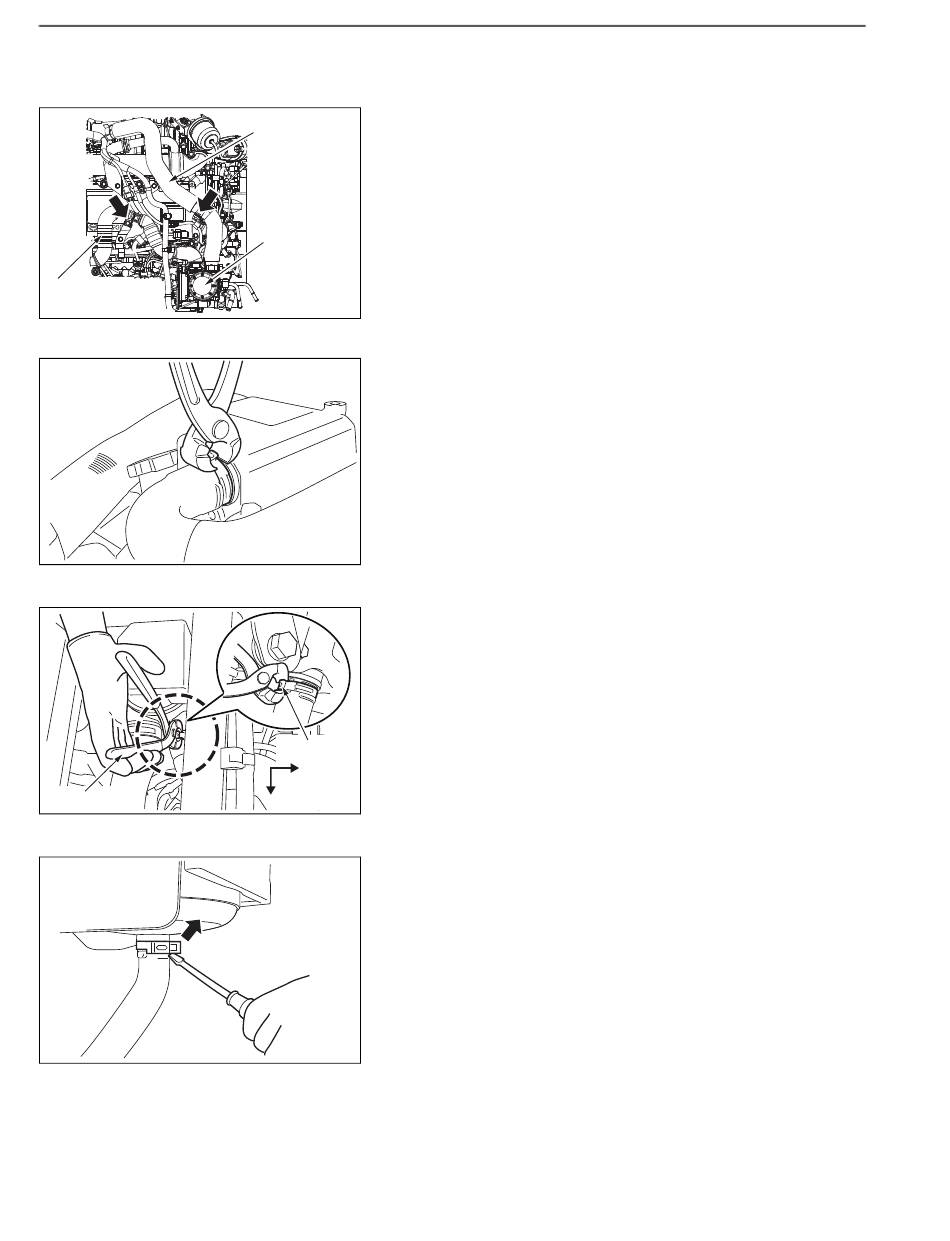

REMOVING THE CLOSED VENTILATOR
1. REMOVING THE HOSE
(1) Unfasten the 2 clamps and bolt to disconnect the ventilator hose
VENTILATOR
A from the closed ventilator and intake hose.
HOSE A
(2) Unfasten the 2 clamps and bolt to disconnect the ventilator hose
B from the closed ventilator and cylinder head.
CLOSED
VENTILATOR
SHTS021270700023
(3) Using the SST, remove the clamp on the engine side break.
SST:
HINT
For non-reusable clamp, the clamp break when you remove them.
SHTS021270700024
(4) Using the SST, remove the clamp on the vehicle side break.
SST:
HINT
For non-reusable clamp, the clamp break when you remove them.
CLAMP
Fr
Rh
SHTS021270700025
(5) Using the flat-blade screwdriver, etc., break out of the clamp
closed ventilator under body.
HINT
For non-reusable clamp, the clamp break when you remove them.
SHTS021270700026
S0920-E0010
Vent pipe tool
S0920-E0010
Vent pipe tool
