Hino S5-LJ05E04A Workshop Manual page 485

DEF TANK
DEF SENSOR
COOLANT INLET
HOSE
DEF
OUTLET
HOSE
DEF
SENSOR
EXHAUST (J05E)

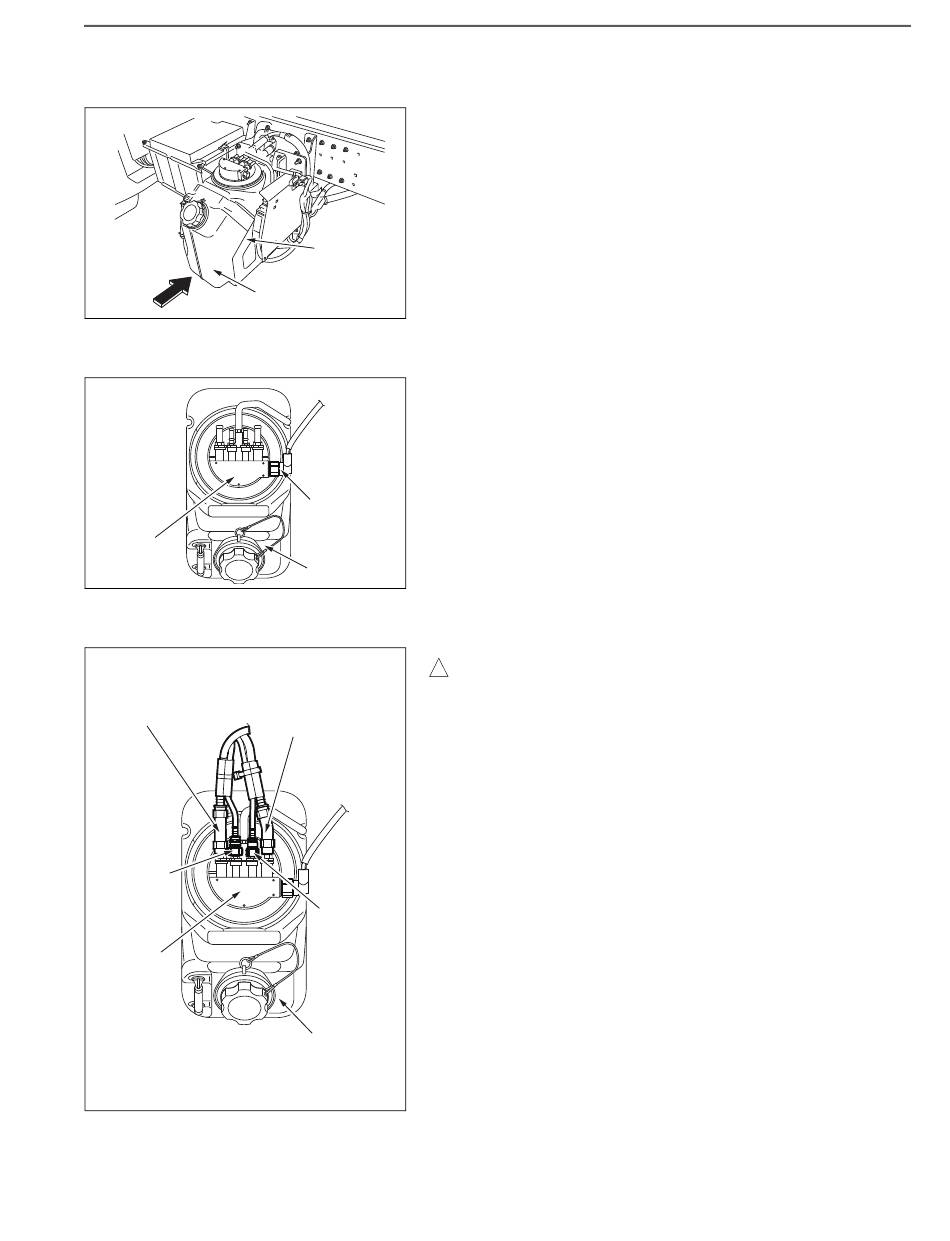

MOUNTING THE DEF TANK
1.
(1)
TANK
BRACKET
SHTS021271000133
2.
(1)
CONNECTOR
DEF TANK
SHTS021271000134
3.
! CAUTION
Refer to "Cautions on DEF/coolant piping attaching and detach-
ing".
COOLANT OUTLET
Reference: EXHAUST (J05E), DEF-SCR & DPR, CAUTIONS ON
HOSE
DEF/COOLANT PIPING ATTACHING AND DETACHING (Page 11-
20)
(1)
(2)
DEF
BACKFLOW
HOSE
DEF TANK
SHTS021271000135
MOUNTING THE DEF TANK
Mount the DEF tank to the tank bracket.
CONNECTING THE HARNESS
Connect the connector to the DEF sensor.
CONNECTING THE HOSE
Connect the coolant inlet hose and coolant outlet hose to the DEF
sensor with 2 clamps.
Connect the DEF backflow hose and DEF outlet hose to the DEF
sensor.
