Hino S5-LJ05E04A Workshop Manual page 259

9–18
BRACKET
DUCT
MOUNT
STACK DUCT
CLAMP
INTAKE (J05E)

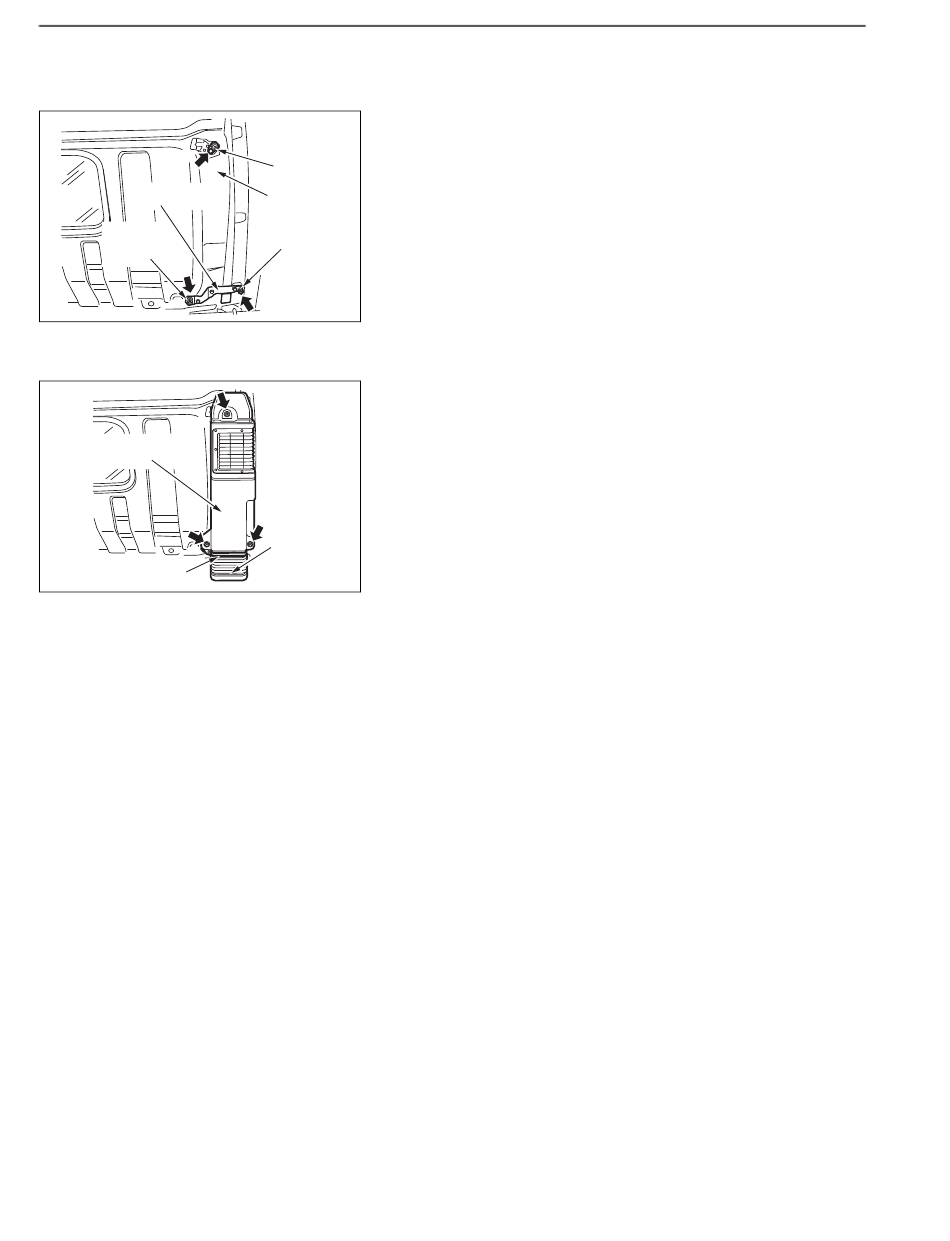

MOUNTING THE STACK DUCT
1. MOUNTING THE DUCT MOUNT
(1) Mount the 2 duct mounts to the bracket with 2 bolts.
Tightening Torque:
DUCT
19.5 N·m {199 kgf·cm, 14 lbf·ft}
MOUNT
(2) Mount the duct mount to the cab with the bolt.
CAB
Tightening Torque:
19.5 N·m {199 kgf·cm, 14 lbf·ft}
DUCT
MOUNT
SHTS021270800025
2. MOUNTING THE STACK DUCT
(1) Insert the intake hose to the lower part of the stack duct and
tighten the clamp.
Tightening Torque:
2.4-5.0 N·m {25-50 kgf·cm, 1.8-3.6 lbf·ft}
(2) Mount the stack duct to the duct mount with 3 nuts.
Tightening Torque:
13 N·m {133 kgf·cm, 10 lbf·ft}
INTAKE
HOSE
SHTS021270800026
