DEF SENSOR
DEF TANK O-RING
SHTS021271000149
EXHAUST (J05E)

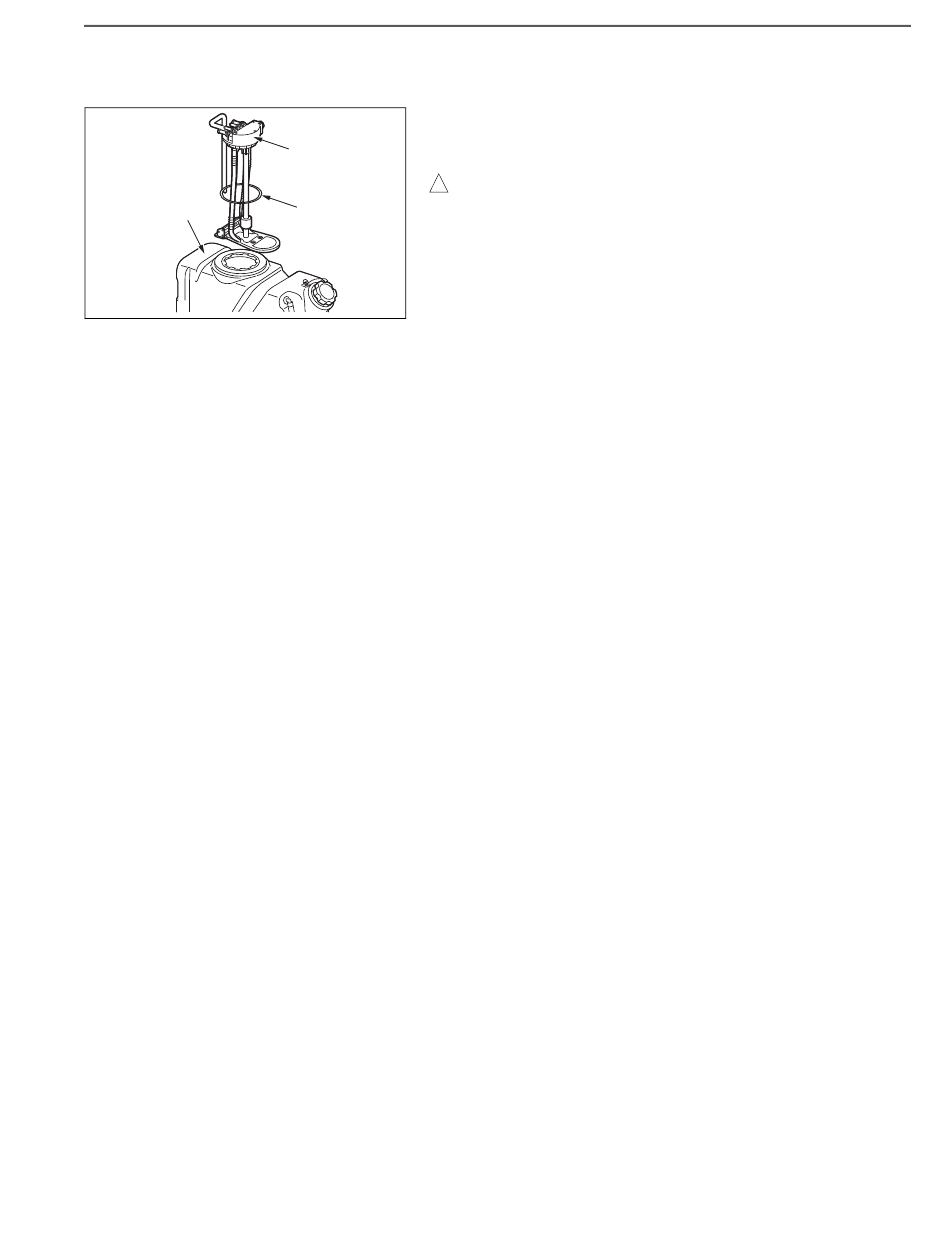

MOUNTING THE DEF SENSOR
1. MOUNTING THE DEF SENSOR
(1) Replace with a new O-ring and mount it to the DEF sensor.
(2) Fix the DEF tank and turn the DEF sensor clockwise to mount it to
the DEF tank.
! CAUTION
• Thoroughly wipe off DEF crystals precipitated on the mount-
ing surface with a clean waste.
•
When inserting the sensor inside the tank, be careful not to
damage the sensor by hitting the tank edge.
•
Check that the tank center and DEF sensor pipe are mounted
in parallel position.
•
Do not tighten the DEF sensor excessively.
2. MOUNTING THE DEF TANK
Reference: EXHAUST (J05E), DEF TANK, REPLACEMENT,
MOUNTING THE DEF TANK (Page 11-77)
