Hino S5-LJ05E04A Workshop Manual page 583

O-RING
GASKET
OIL COOLER
CASE
OIL COOLER CASE
SAFETY VALVE
OIL COOLER CASE
GASKET
LUBRICATION (J05E)
DISASSEMBLING THE OIL COOLER ASSEMBLY
1.
(1)
OIL COOLER
ELEMENT
SHTS021271200014
2.
(1)
! CAUTION
Note that residual pressure in the oil cooler may cause the engine
oil to spew out when disassembling immediately after the engine
stops.
VALVE SPRING
PLUG
SHTS021271200015
3.
(1)
OIL PRESSURE
SWITCH
SHTS021271200016

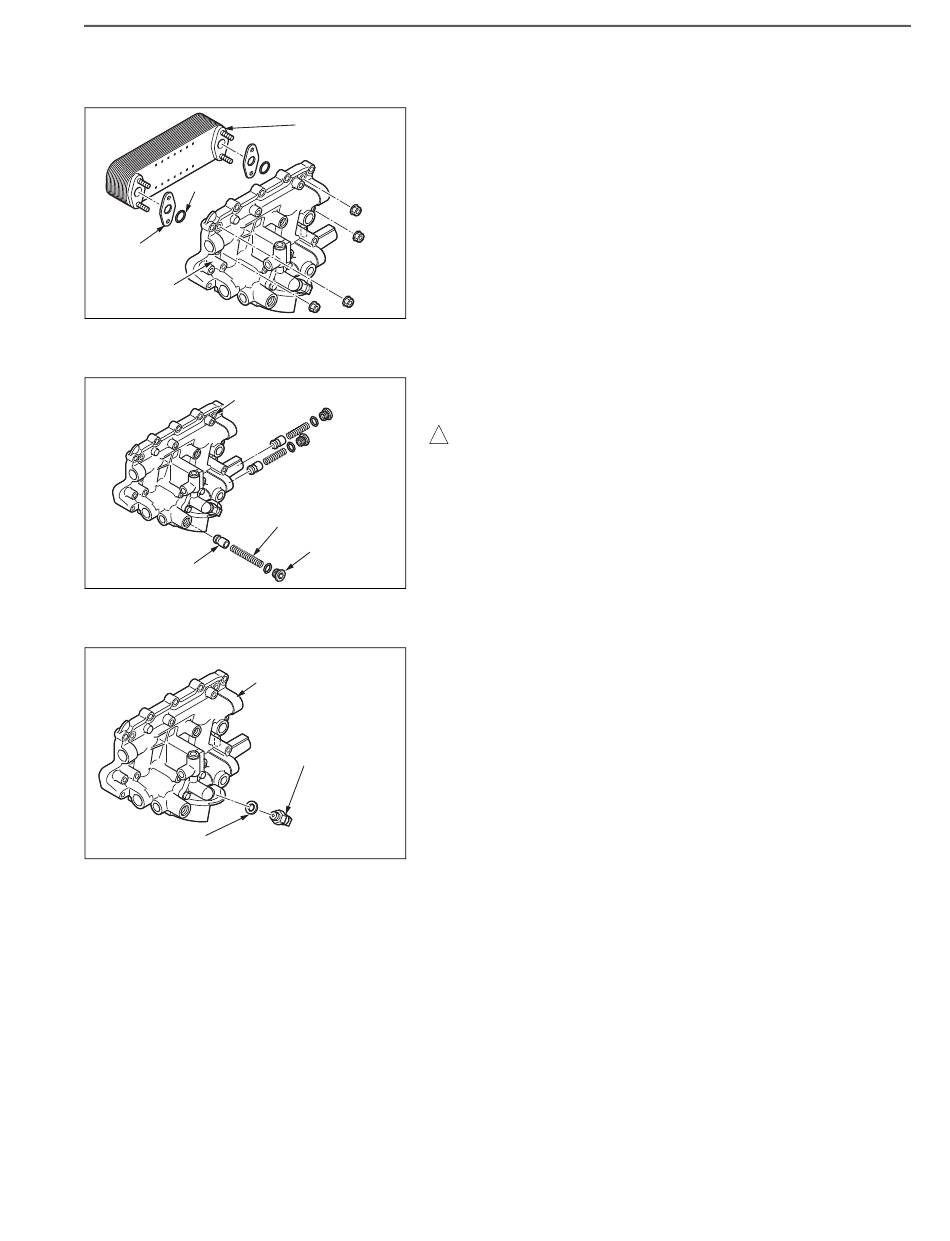

REMOVING THE OIL COOLER ELEMENT
Unfasten the nuts (4 pcs.) to remove the oil cooler element, gas-
kets (2 pcs.), and O-rings (2 pcs.) from the oil cooler case.
REMOVING THE SAFETY VALVE
Remove each plug to remove the valve spring and safety valve
from the oil cooler case.
REMOVING THE OIL PRESSURE SWITCH
Remove the oil pressure switch and gasket from the oil cooler
case.
