Hino S5-LJ05E04A Workshop Manual page 431

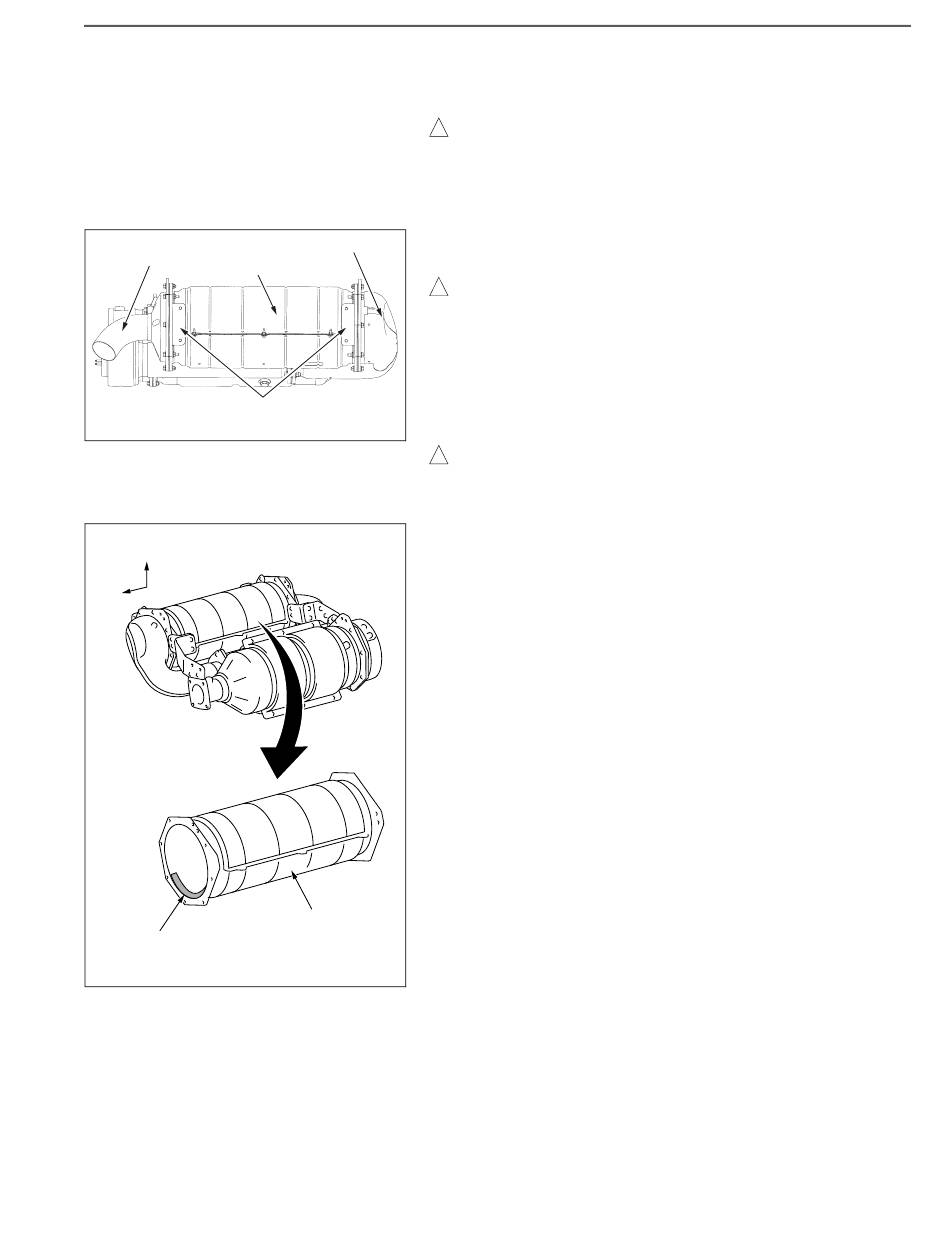

CENTER PIPE No.2
TAIL PIPE
DEF-SCR
EXHAUST PIPE
PROTECTOR STAY
UPR
FR
A PLATE
EXHAUST (J05E)
MOUNTING THE DEF-SCR
1. CAUTIONS
! CAUTION
Handle the DPR cleaner and DEF-SCR with particular care
because they are heavy made of ceramic and can be easily bro-
ken.
2. TEMPORARY MOUNTING OF THE DEF-SCR
(1) Set the transmission jack under the DEF-SCR and lash with a
lashing device.
! CAUTION
To hold and stabilize the DEF-SCR, make sure to lash it with a
lashing device before installation or removal.
(2) Set the DEF-SCR to the mounting position while supporting it to
prevent falling.
(3) Replace with new 2 gaskets, 16 bolts, and 14 nuts. Align align-
ment marks and temporarily tighten the DEF-SCR and 2 exhaust
pipe protector stays to the center pipe No.2 and tail pipe.
SHTS021271000034 ! CAUTION
•
To prevent exhaust gas and DEF leakage, make sure to
replace with new gaskets, bolts, and nuts.
•
When mounting the DEF-SCR, note the longitudinal and ver-
tical directions.
•
Mount the DEF-SCR in a way that the plate A-welded side
faces to the vehicle front side and comes under the vehicle.
DEF-SCR
SHTS021271000035
11–23
