BEARING HOLDER CASE
SUPPLY PUMP
BEARING HOLDER CASE
COUPLING FLANGE
BEARING
HOLDER CASE
SUPPLY PUMP
FUEL SYSTEM (J05E)

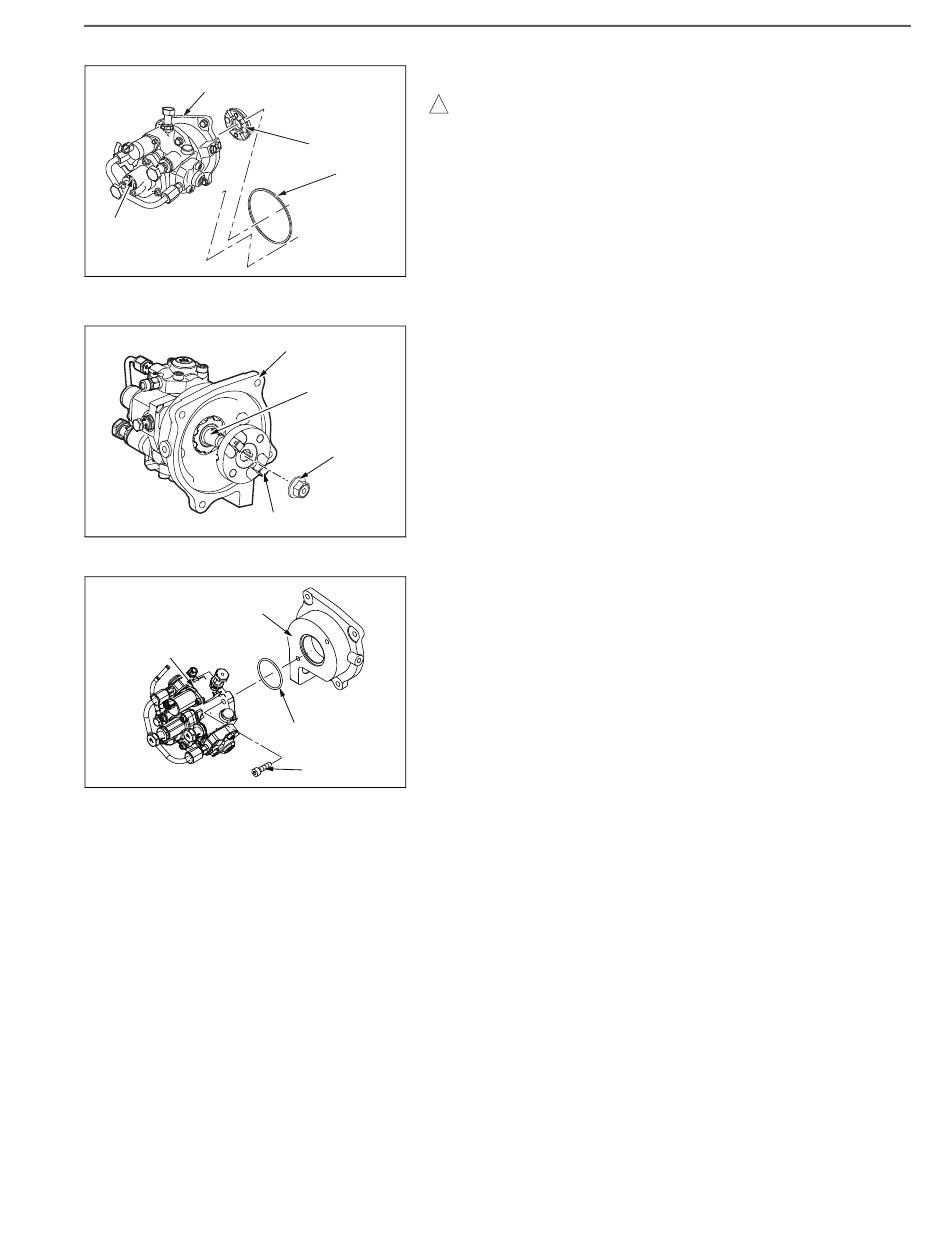

(1) Unfasten 4 bolts to remove the supply pump, coupling and O-ring
from the engine.
! CAUTION
Remove the supply pump and the bearing holder case together.
COUPLING
FLANGE
O-RING
SHTS021270600068
(2) Unfasten the nut with the coupling flange locked with a vise, and
remove the coupling flange.
SHAFT
NUT
SHTS021270600069
(3) Unfasten 2 bolts to remove the bearing holder case and O-ring
from the supply pump.
O-RING
BOLT
SHTS021270600070
