HANDLING OF LIQUID GASKET

LIQUID GASKET
1. PROCEDURES FOR APPLYING LIQUID GASKET AND ASSEMBLING PARTS
(1) Thoroughly remove old liquid gasket remaining on individual parts and mating parts. Use clean cloth to remove oil,
moisture, dirt or other contaminants.
Make sure to overlap the start and end points of liquid gasket.
(2) Use care to avoid misalignment with a mating part when assembling a gasket-applied part. If misalignment is found,
reapply liquid gasket.
(3) Install parts within 20 minutes after applying liquid gasket.
If 20 minutes or longer time has elapsed, remove and reapply liquid gasket.
(4) Wait at least 15 minutes after assembling parts and then start the engine.
2. REMOVAL OF PARTS
(1) When removing individual parts, alternately winkle two or more portions in a gap or a collar of a flange. Avoid one-
point winkling. When removing a gasket, use care to avoid entry of gasket fragments into the engine.
3. OTHERS
(1) If liquid gasket is contained in a tube, use a supplied squeezer. If liquid gasket is contained in a cartridge, use a appli-
cator gun.

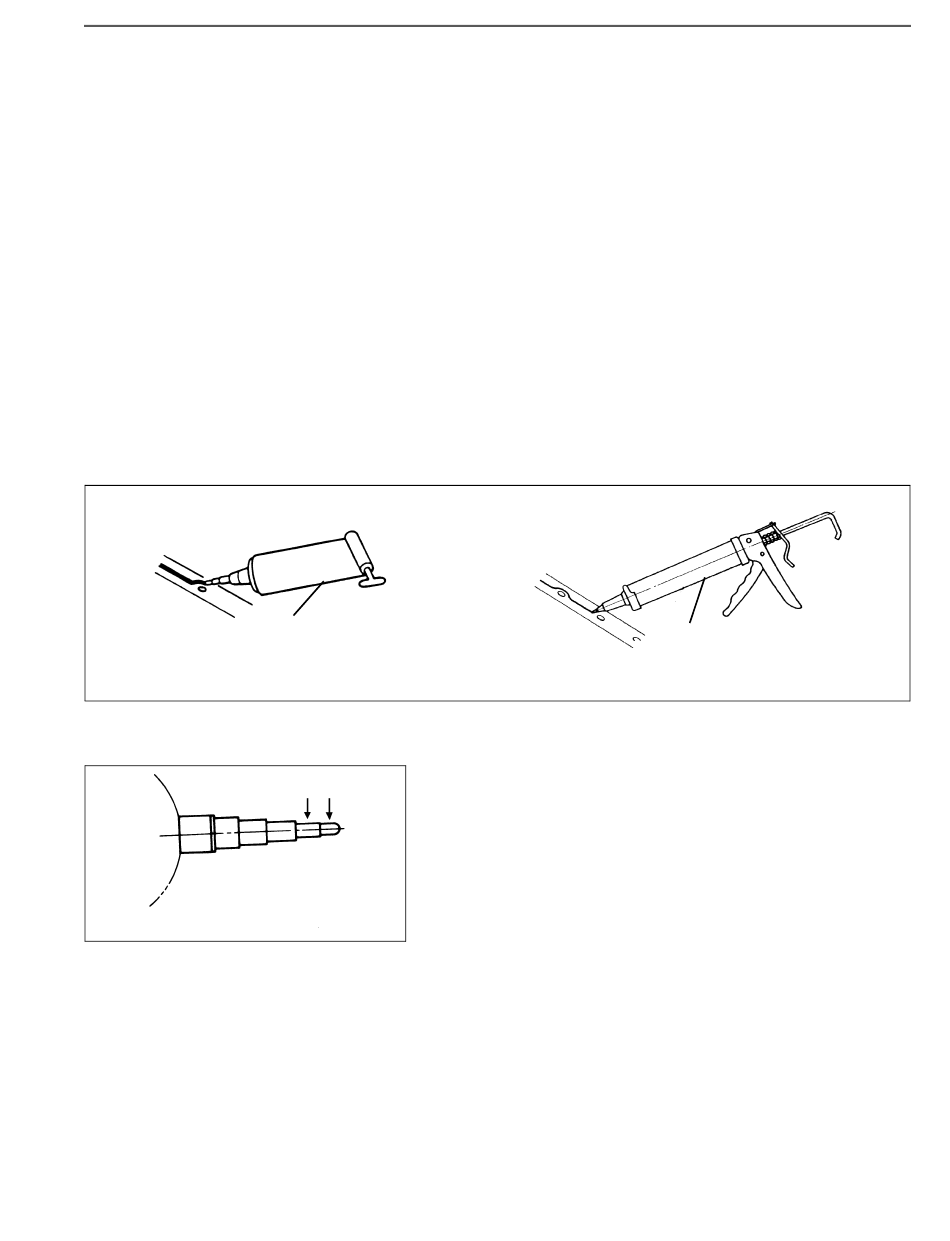

WINDING TOOL
If liquid gasket is contained in a tube, the nozzle tip can be cut off to the desired application width.
NOZZLE OF THE TUBE
1: Cut off the first block will form a application width of approximately 2 mm {0.079 in.}.
2: Cut off the second block will form a application width of approximately 5 mm {0.197 in.}.
GENERAL INTRODUCTION
TUBE
2 1
SHTS01ZZZ0000043
1
EN01F01ZZZ000102003006
SPRAY GUN
CARTRIDGE
SHTS01ZZZ0000042
