POWER STEERING POWER STEERING
OIL HOSE OIL PIPE
FUEL HOSE
FUEL HOSE
(FEED SIDE)
(RETURN SIDE)
MOUNTING AND DISMOUNTING THE ENGINE (J05E)
4.
(1)
(2)

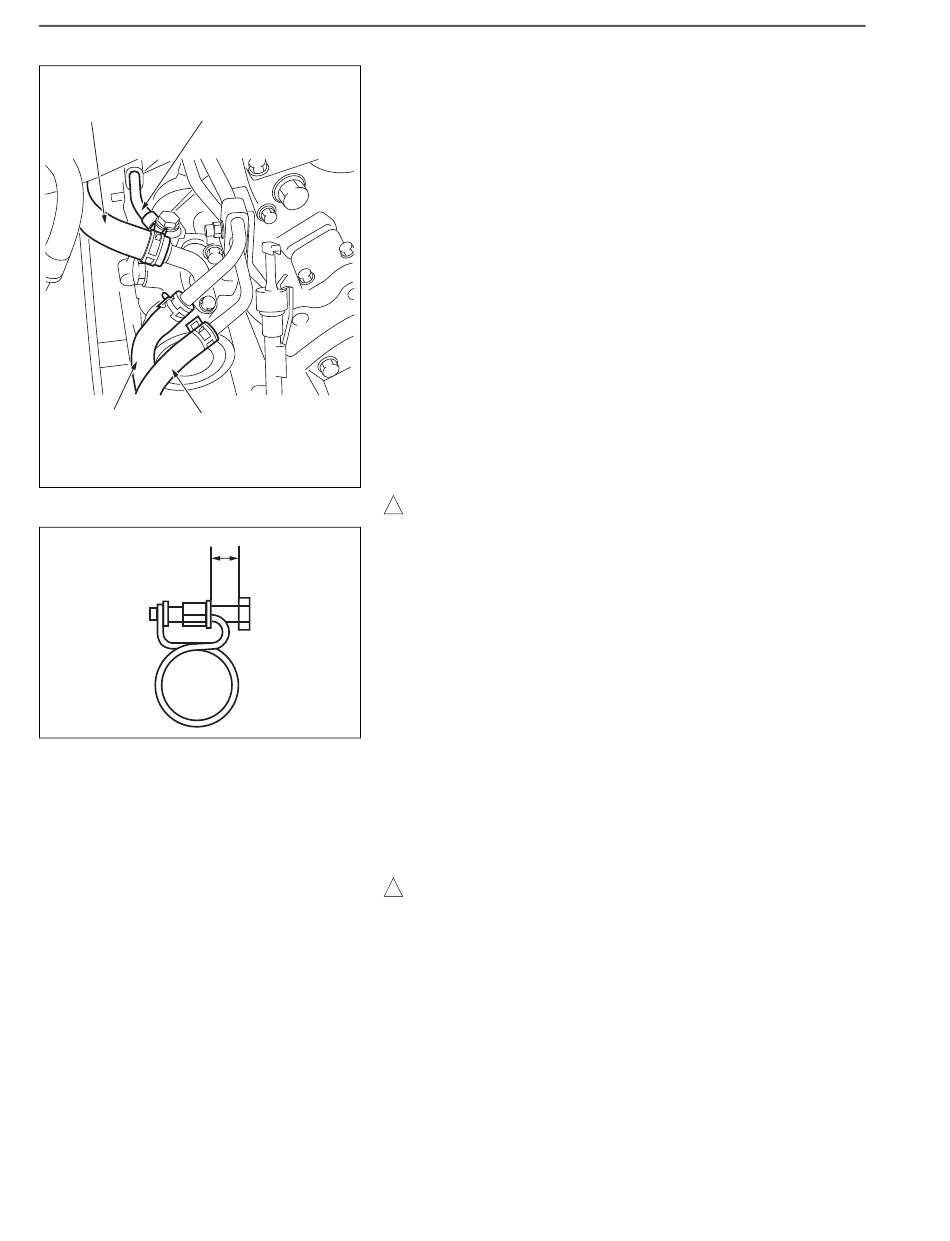

SHTS021270400019
! CAUTION
Tighten with the clamp until length A becomes 4-5 mm {0.157-
0.197 in.}.
A
SHTS021270400020
5.
(1)
! CAUTION
•
•
6.
(1)
7.
CONNECTING THE POWER STEERING OIL HOSE AND OIL
PIPE
Replace with a new gasket and tighten the union bolt to connect
the power steering oil pipe to the power steering pump.
Tightening Torque:
71-92 N·m {724-938 kgf·cm, 52-68 lbf·ft}
Align with the marking and tighten with the clamp to connect the
power steering oil hose to the power steering pump.
CONNECTING THE FUEL HOSE
Connect the fuel hose (return side) and fuel hose (feed side) to
fuel feed pipe No.4 and return pipe No.3 at the left rear of the fly-
wheel housing with 2 clamps.
Align the marks on the pipe and hose to connect the hoses.
If the chassis side is disconnected to connect the hoses,
align the marks to connect them.
CONNECTING OIL RESERVOIR OIL HOSE
Connect the oil reservoir oil hose.
MOUNTING EXHAUST PIPE
Reference: EXHAUST (J05E), EXHAUST PIPE, REPLACE-
MENT, MOUNTING THE EXHAUST SYSTEM COMPONENT
PARTS (Page 11-12)
