Hino S5-LJ05E04A Workshop Manual page 310

10–34
CROSSHEAD
GUIDE PIN
THE OVERFLOE OF A
LIQUID GASKET IS
COMPLETELY REMOVED
INCORRECT
ENGINE MECHANICAL (J05E)
7.
(1)
CROSSHEAD
(2)
SHTS021270900068
8.
(1)
(2)
! CAUTION
•
•
(3)
SHTS021270900069
(4)
! CAUTION
HALF-ROUND
PLUGS
Do not pry or tilt the half-round plug.
CORRECT
SHTS021270900070

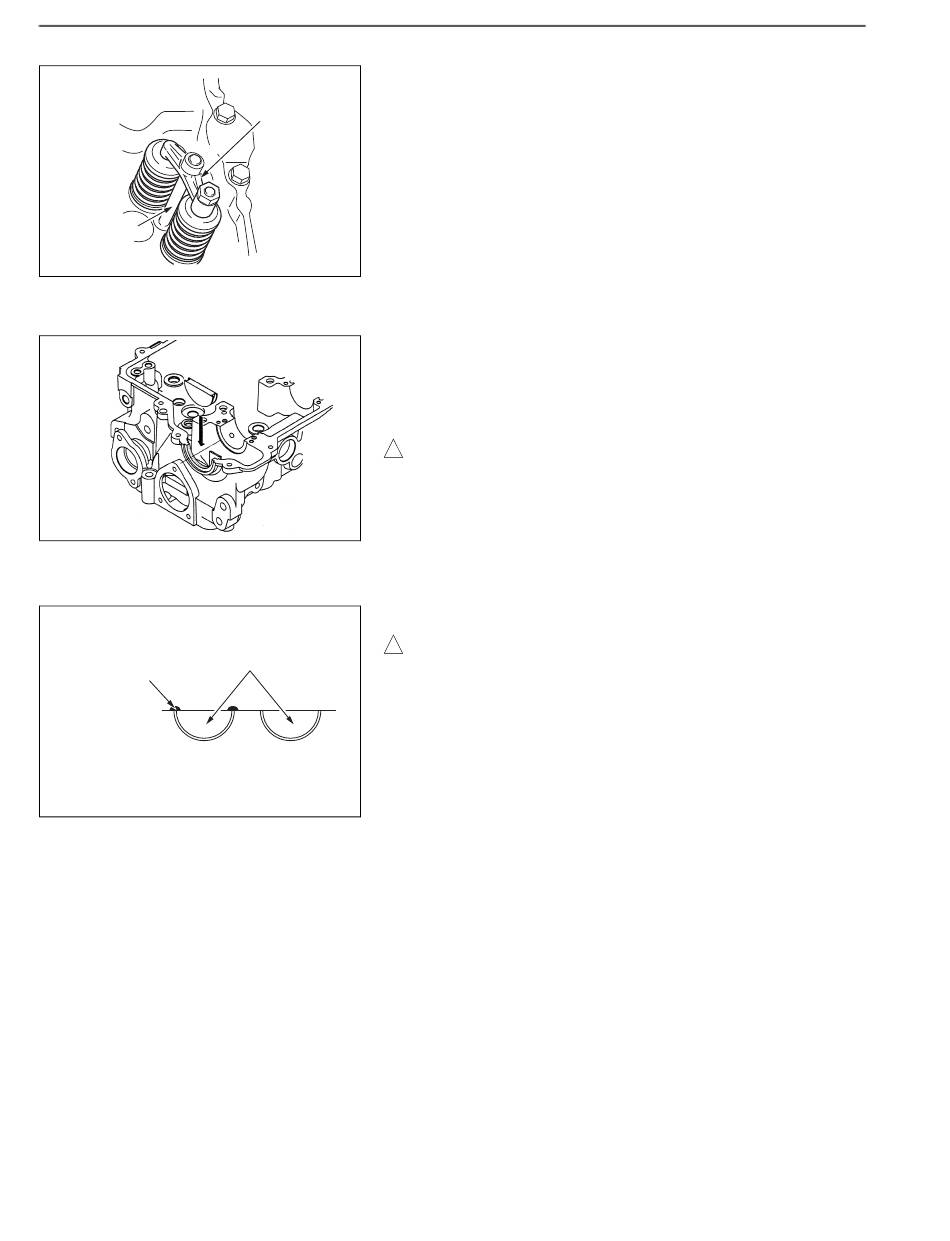

MOUNTING THE CROSSHEAD
Apply engine oil to crosshead guide pins and install the cross-
heads.
Check that crossheads are properly seated on (or over) individual
valves and apply engine oil to the heads of the crossheads.
MOUNTING THE HALF-ROUND PLUG (ONLY IF THE HALF-
ROUND PLUG IS REMOVED)
Remove all oil and dirt on the half-round plug and cylinder head.
Apply liquid gasket (ThreeBond TB1207B: Black or equivalent) to
the half-round areas at the cylinder head front and rear ends as
shown in the figure.
Apply the liquid gasket seamlessly.
Mount the case within 20 minutes after applying the liquid
gasket.
Mount the new half-round plug to the upper side of the cylinder
head parallel and ensure that the plug comes in contact with the
head at the bottom.
After mounting the half-round plug, wipe out the liquid gasket that
swells out of the upper surface of the cylinder head immediately.
