ENGINE MECHANICAL (J05E)

REPLACEMENT

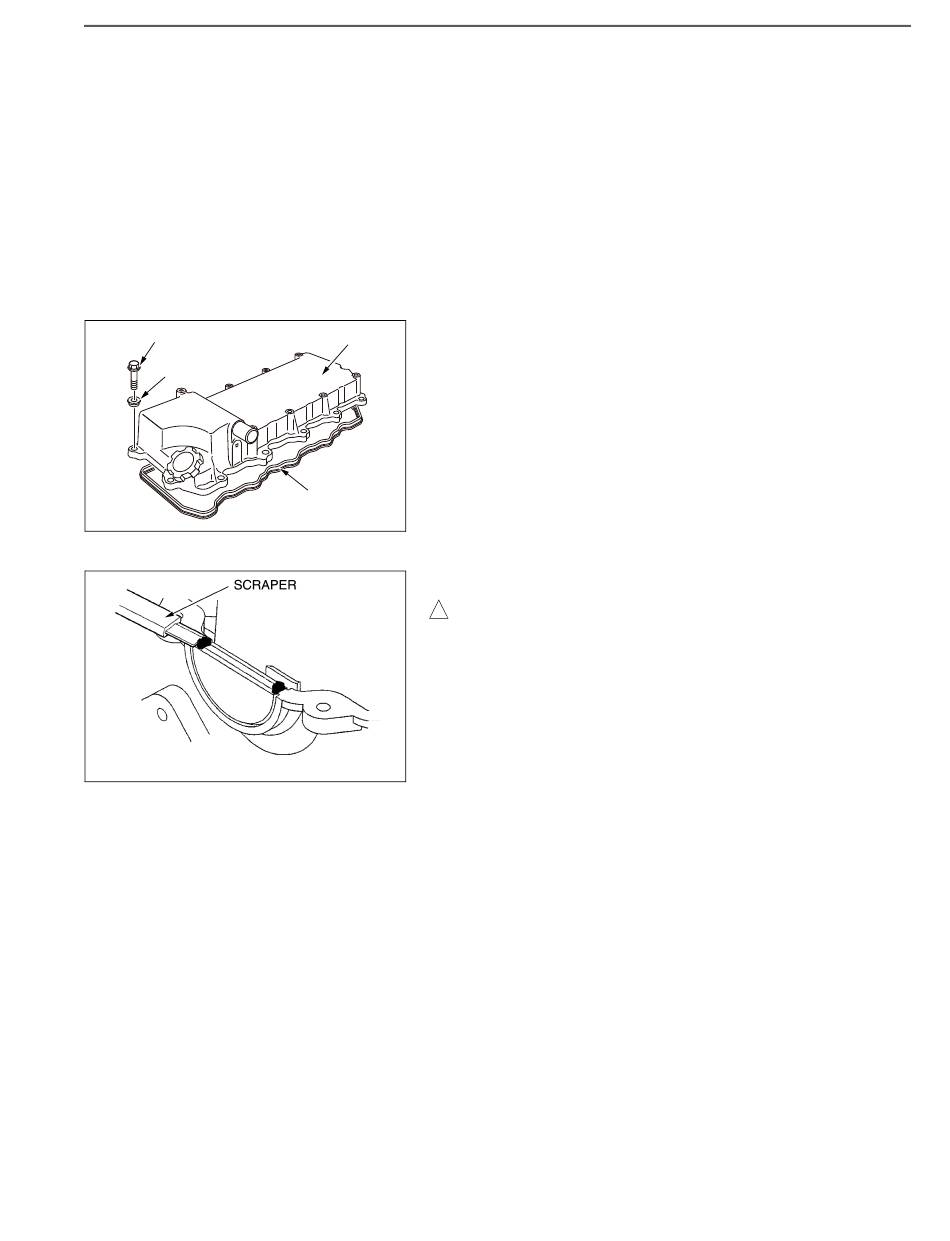

REMOVING THE HEAD COVER
1. REMOVING THE CLOSED VENTILATOR HOSE
Reference: EMISSION CONTROL (J05E), CLOSED VENTILA-
TOR, REPLACEMENT, REMOVING THE CLOSED VENTILA-
TOR (Page 8-14)
2. DISCONNECTING THE HARNESS
(1) Disconnect the connector, then detach the harness from top of
the cylinder head.
3. REMOVING THE HEAD COVER
(1) Unfasten the 13 bolts to remove 13 silent blocks and a head
cover.
(2) Remove the head cover gasket from the head cover.
(3) If oil leak is found from the half-round plug, remove the half-round
plugs at the cylinder head front and rear ends (2 pcs.).
! CAUTION
Do not remove the half-round plugs unless oil leak is found.
