11–12
FRONT
EXHAUST PIPE
GASKET
EXHAUST (J05E)

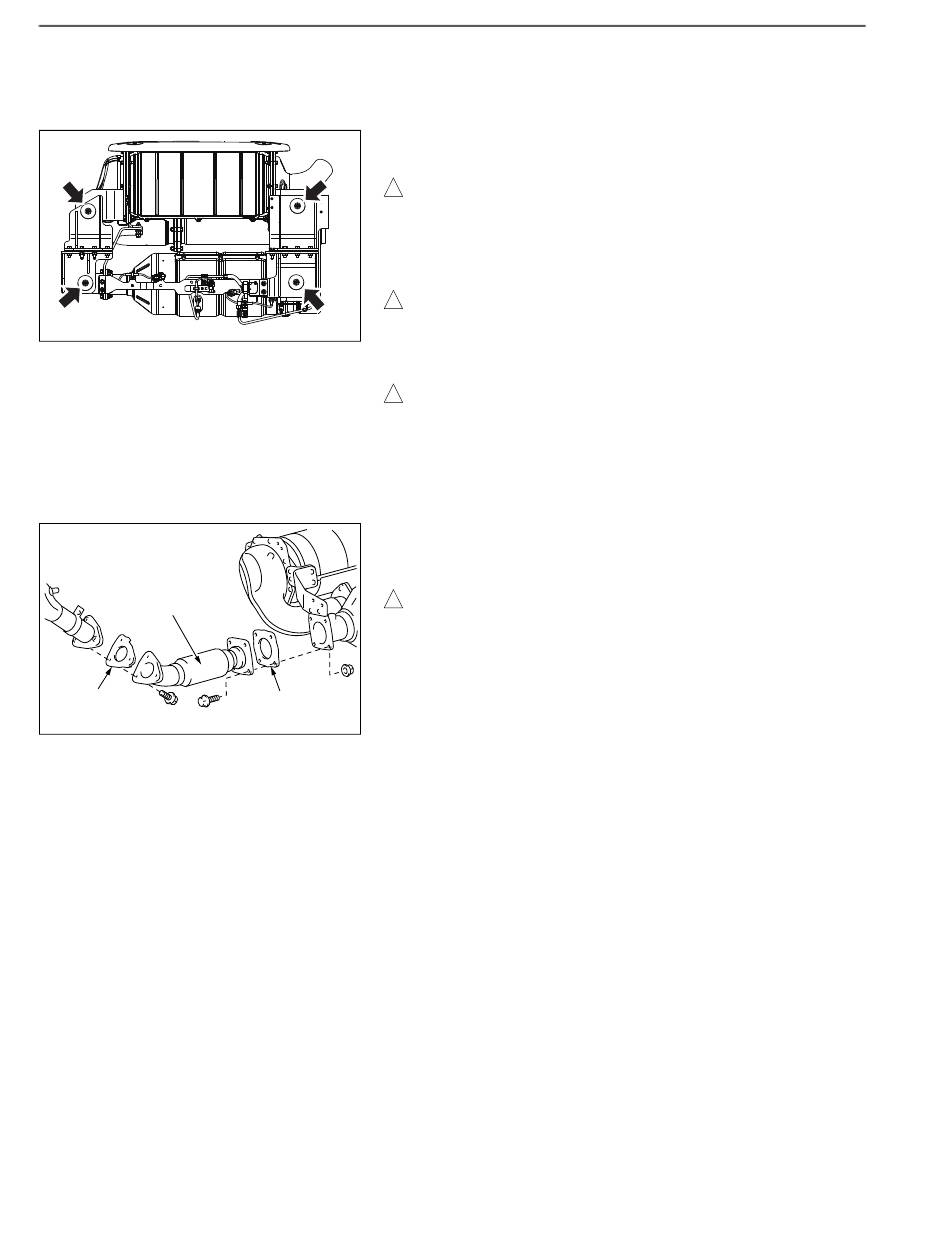

MOUNTING THE EXHAUST SYSTEM COMPONENT
PARTS
1. PRECONNECTING MUFFLER
(1) Set the transmission jack under the muffler and use a lashing belt
to lash the muffler.
! CAUTION
To hold and stabilize the muffler, make sure to use a lashing belt
to lash the muffler before installation or removal.
(2) While holding the muffler to prevent it from rolling over, set the
muffler to the mounting position.
! CAUTION
Pay attention to weight balance.
(3) Temporarily tighten the muffler, 4 plates, and 7 cushions to the
SHTS021271000017
muffler bracket with 4 nuts.
! CAUTION
• Handle the DPR cleaner and DEF-SCR with particular care
because they are heavy made of ceramic and can be easily
broken.
•
Temporarily tighten to avoid play in vertical direction.
2. TEMPORARY MOUNTING OF THE FRONT EXHAUST PIPE
(1) Replace with 2 new gaskets, 7 bolts, and 4 nuts. Align alignment
marks and temporarily tighten the front exhaust pipe to the muffler
and exhaust pipe (ATC).
! CAUTION
To prevent exhaust gas leakage, make sure to replace with a new
gasket, bolts, and nuts.
GASKET
SHTS021271000018
