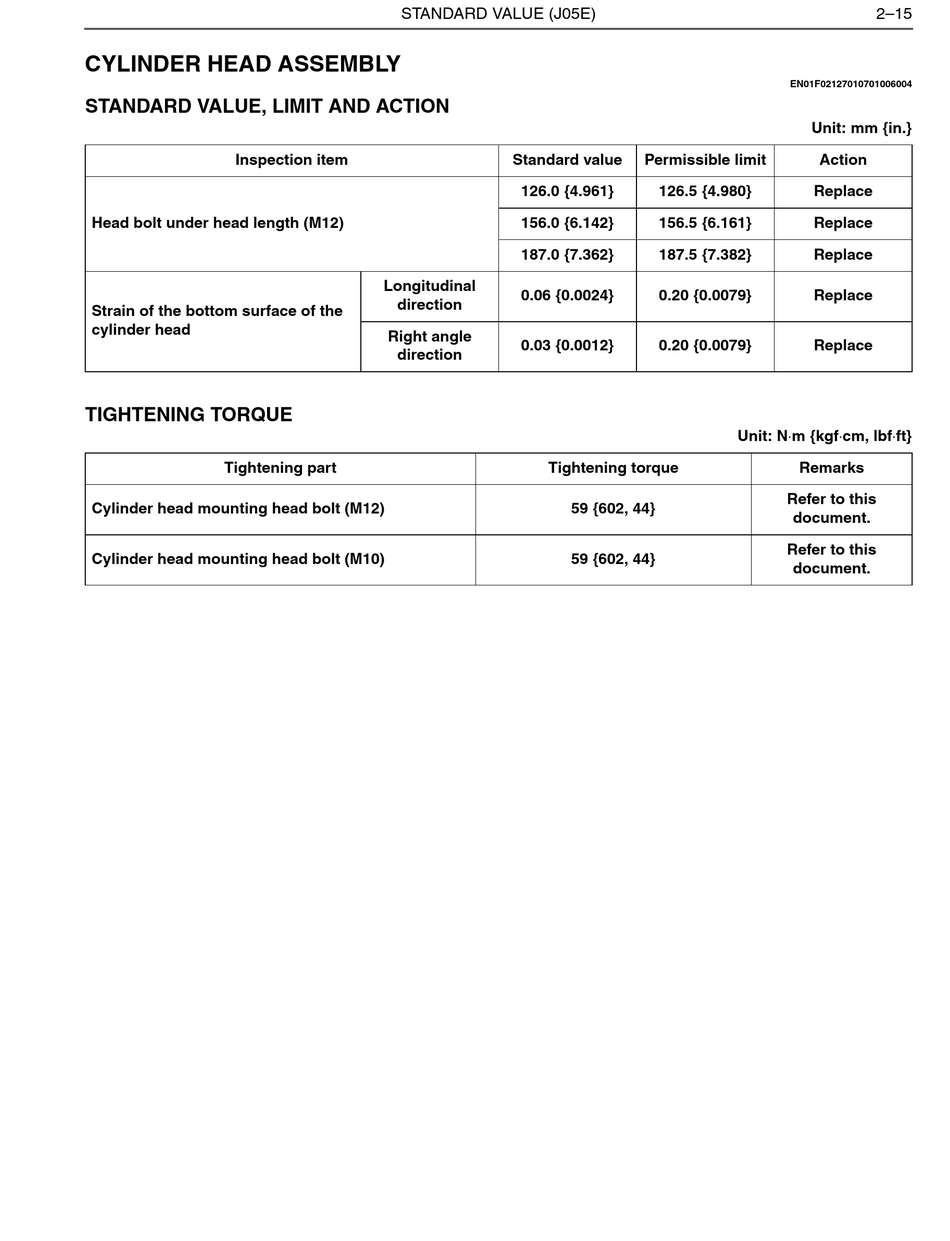

CYLINDER HEAD ASSEMBLY

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Head bolt under head length (M12)
Strain of the bottom surface of the
cylinder head
TIGHTENING TORQUE
Tightening part
Cylinder head mounting head bolt (M12)
Cylinder head mounting head bolt (M10)
STANDARD VALUE (J05E)
Standard value
126.0 {4.961}
156.0 {6.142}
187.0 {7.362}
Longitudinal
0.06 {0.0024}
direction
Right angle
0.03 {0.0012}
direction
Tightening torque
Permissible limit
126.5 {4.980}
156.5 {6.161}
187.5 {7.382}
0.20 {0.0079}
0.20 {0.0079}
Unit: Nm {kgfcm, lbfft}
59 {602, 44}
59 {602, 44}
2–15
EN01F02127010701006004
Unit: mm {in.}
Action
Replace
Replace
Replace
Replace
Replace
Remarks
Refer to this
document.
Refer to this
document.
