Hino S5-LJ05E04A Workshop Manual page 614

Inspection item
Continuity between
the segments of the
commutator
No continuity
between the connec-
tor and armature coil
core.
If the iron piece does
Armature short
not vibrate,
circuit test (Using
the armature is
the growler tester)
good.
Measure the circle
run-out
Outside diameter of
the commutator
Depth between the
mica and the com-
mutator
(Under cut depth)
STARTING/CHARGING (J05E)

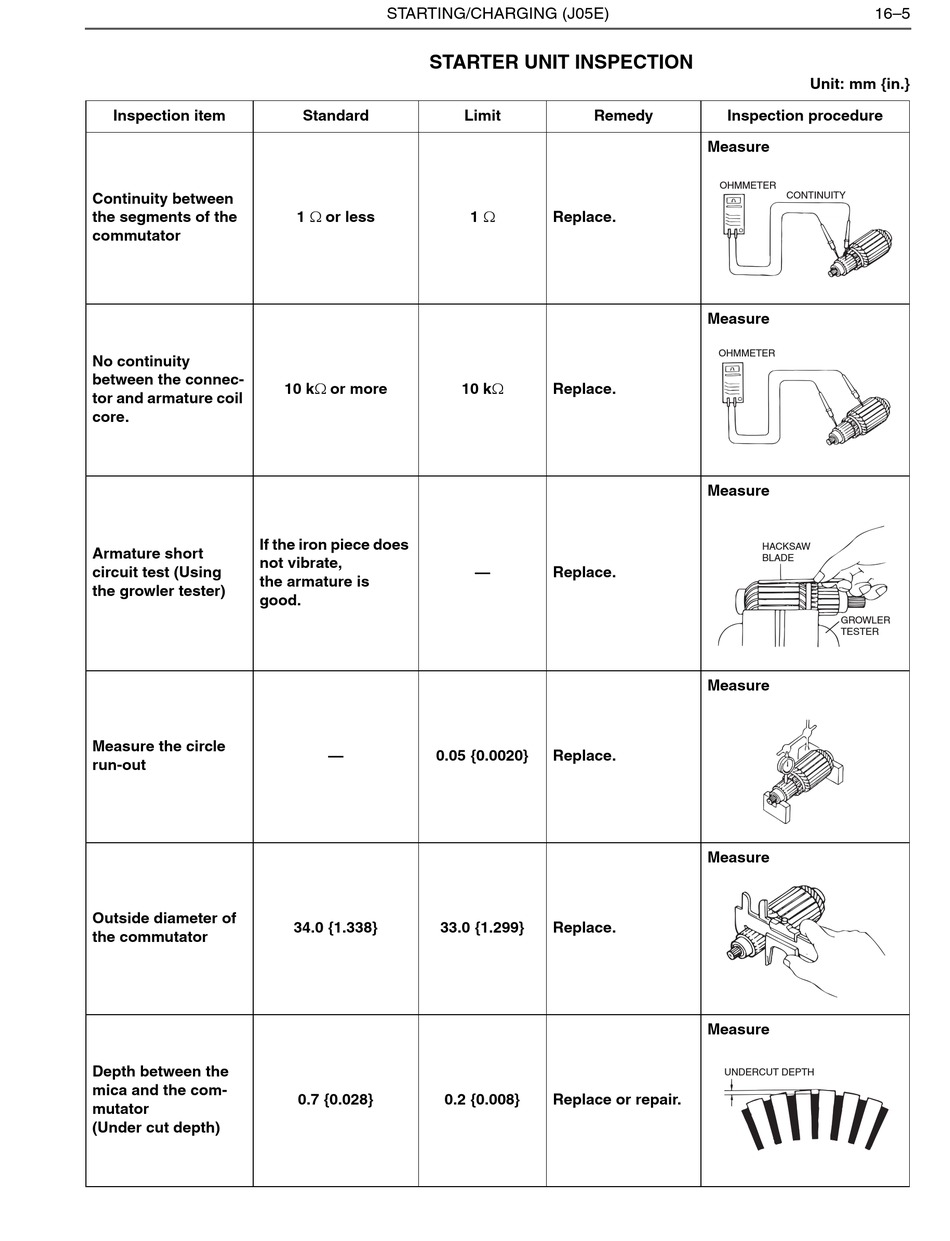

STARTER UNIT INSPECTION
Standard
1  or less
10 k or more 10 k
—
0.05 {0.0020}
34.0 {1.338} 33.0 {1.299}
0.7 {0.028} 0.2 {0.008}
Limit Remedy
1 
Replace.
Replace.
—
Replace.
Replace.
Replace.
Replace or repair.
16–5
Unit: mm {in.}
Inspection procedure
Measure
OHMMETER
CONTINUITY
Measure
OHMMETER
Measure
HACKSAW
BLADE
GROWLER
TESTER
Measure
Measure
Measure
UNDERCUT DEPTH
