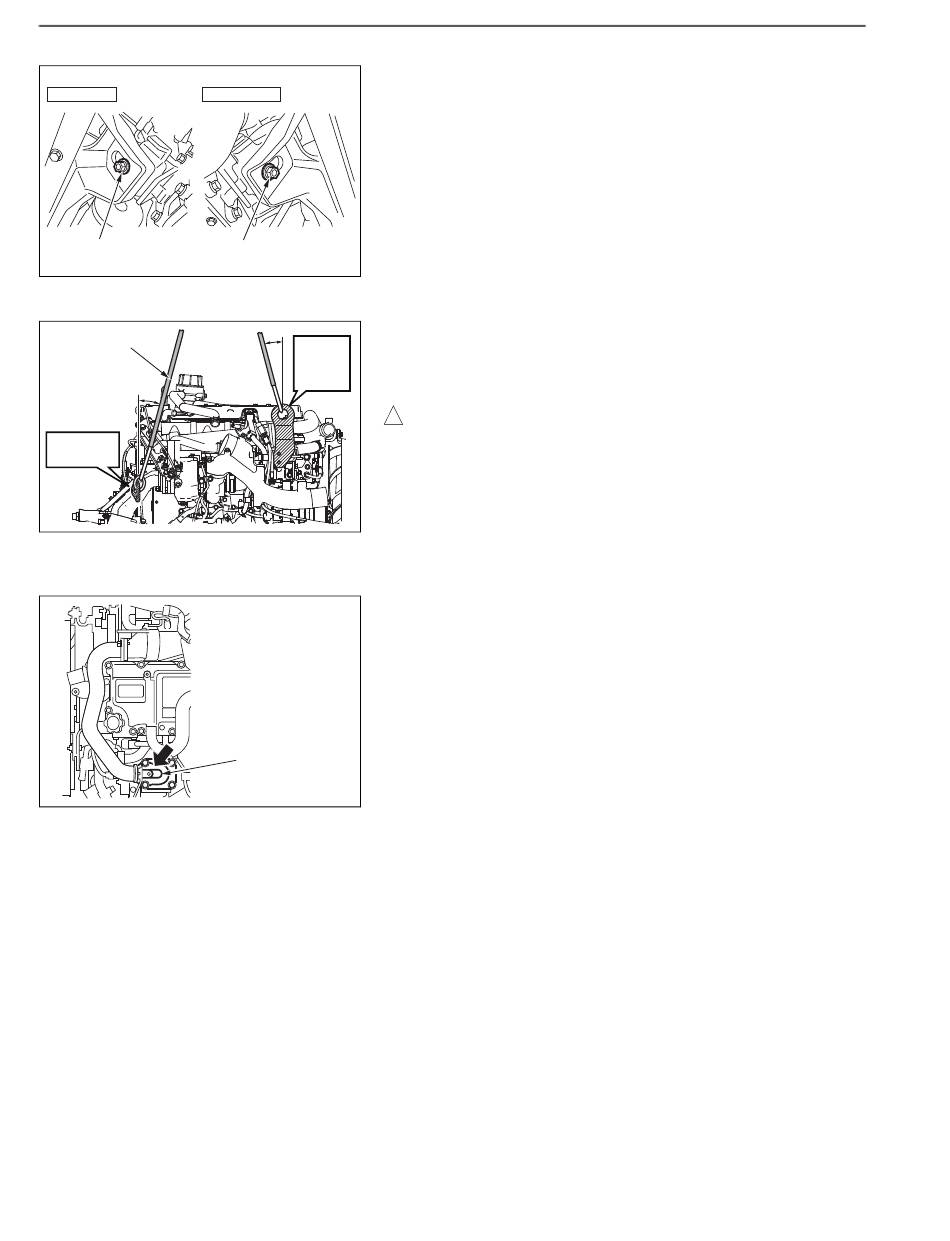

Hino S5-LJ05E04A Workshop Manual page 127

5–10
LEFT SIDE RIGHT SIDE
NUT NUT
WIRE ROPE
10° OR
LESS
10° OR LESS
ENGINE
LEFT SIDE
MOUNTING AND DISMOUNTING THE ENGINE (J05E)
(2)
SHTS021270400013
(3)
ENGINE
RIGHT
(4)
SIDE
! CAUTION
•
•
•
SHTS021270400014
NOTICE
For the 3-point hoist, mount the eye bolt to the EGR pipe flange
and then hook the wire rope.
EGR PIPE
FLANGE PART
SHTS021270400015
Unfasten 2 engine mounting the installation nuts and disconnect
the engine mounting and frame.
Completely tighten the commercially available shackle and SST
wire. Ensure that the wire is hooked to the engine hanger securely
and then lift the engine slowly.
When the engine bottom passes the frame, rotate the engine 90°
to the right and thrust it out from the vehicle.
Do not allow the engine to contact with the frame and cab
during work.
Handle it with care because it is a heavy load.
Do not allow the engine hoist wire rope to contact with the
engine or transmission.
SST: S0949-11010
Wire rope
