Hino S5-LJ05E04A Workshop Manual page 397

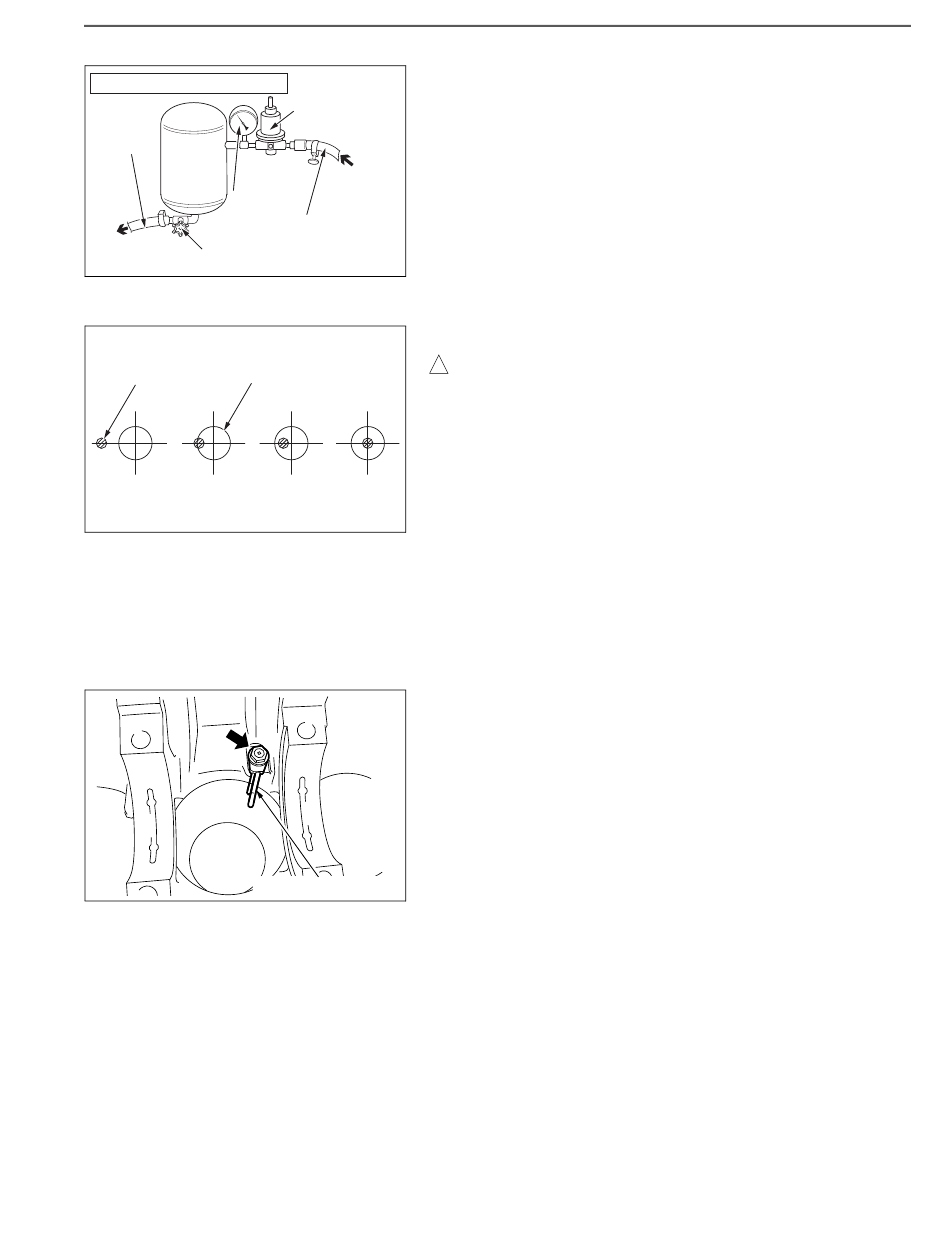

OIL JET DEVICE (EXAMPLE)
OIL HOSE
AIR TANK
(OIL TANK)
AIR GAUGE
AIR HOSE
FOR
VALVE
COOLING JET
JET
GAUGE TARGET
UNACCEPTABLE UNACCEPTABLE NORMAL
COOLING JET
ENGINE MECHANICAL (J05E)
(4) Inject oil from the cooling jet nozzle at 196 kPa {2 kgf/cm
in
PRESSURE
NOTICE
REGULATOR
See the figure for the oil injection device.
COMPRESS
AIR
SHTS021270900287
(5) If the center of injection does not cross a gauge datum line, injec-
tion is deemed normal.
! CAUTION
• Oil may splash and catch fire, causing fire. Keep from flame.
•
Working in a well-ventilated area.
(6) If the injection does not hit the target circle, replace with a new
cooling jet.
(7) Unfasten the SST (bolt for checking) and use a proper union bolt
NORMAL
to secure the cooling jet on the cylinder block.
Tightening Torque:
22 N·m {224 kgf·cm, 16 lbf·ft}
SHTS021270900288
(8) After mounting the piston, check that the cooling jet does not
interfere with the piston at the piston bottom dead center.
MOUNTING THE CYLINDER BLOCK
1. MOUNTING THE COOLING JET
(1) Mount the cooling jet to the cylinder block.
Tightening Torque:
22 N·m {224 kgf·cm, 16 lbf·ft}
(2) After mounting the piston, check that the cooling jet does not
interfere with the piston at the piston bottom dead center.
SHTS021270900289
2. MOUNTING THE CRANKSHAFT
Reference: ENGINE MECHANICAL (J05E), CRANKSHAFT,
REPLACEMENT, MOUNTING THE CRANKSHAFT (Page 10-
109)
3. MOUNTING THE OIL PUMP
Reference: LUBRICATION (J05E), OIL PUMP, OVERHAUL,
MOUNTING THE OIL PUMP (Page 13-20)
4. MOUNTING THE FLYWHEEL HOUSING
Reference:
HOUSING, REPLACEMENT, MOUNTING THE FLYWHEEL
HOUSING (Page 10-68)
2
}.
ENGINE MECHANICAL
10–121
2
, 28 lbf/
(J05E), FLYWHEEL
