EXHAUST MANIFOLD

TIGHTENING TORQUE
Tightening part
Stud bolt
Exhaust manifold mounting nut

EXHAUST PIPE

TIGHTENING TORQUE
Tightening part
Exhaust-pipe (ATC) -to-front-exhaust-pipe
mounting bolt
Front-exhaust-pipe-to-muffler mounting bolt and
nut
Muffler mounting nut
Water pipe mounting nut
DEF Injector mounting nut
Hose protector mounting bolt

EXHAUST PIPE (ATC)

TIGHTENING TORQUE
Tightening part
Bracket mounting bolt
Turbo-charger-assembly-to-exhaust-pipe (ATC)
mounting nut
Clamp mounting bolt

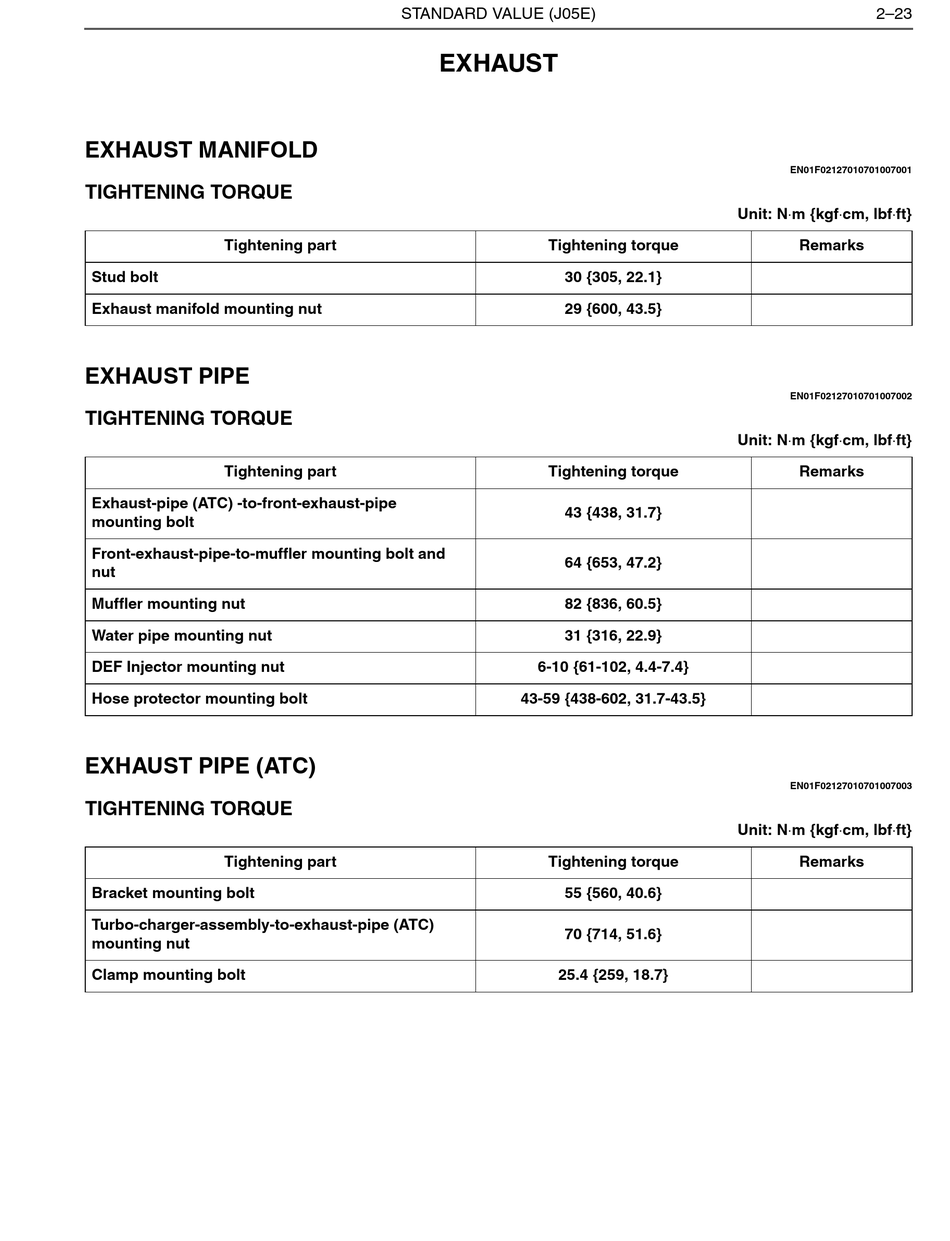

STANDARD VALUE (J05E)

EXHAUST

Tightening torque
30 {305, 22.1}
29 {600, 43.5}
Tightening torque
43 {438, 31.7}
64 {653, 47.2}
82 {836, 60.5}
31 {316, 22.9}
6-10 {61-102, 4.4-7.4}
43-59 {438-602, 31.7-43.5}
Tightening torque
55 {560, 40.6}
70 {714, 51.6}
25.4 {259, 18.7}
2–23
EN01F02127010701007001
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701007002
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701007003
Unit: Nm {kgfcm, lbfft}
Remarks
