Exhaust Pipe; Component Locator - Hino S5-LJ05E04A Workshop Manual

11–8

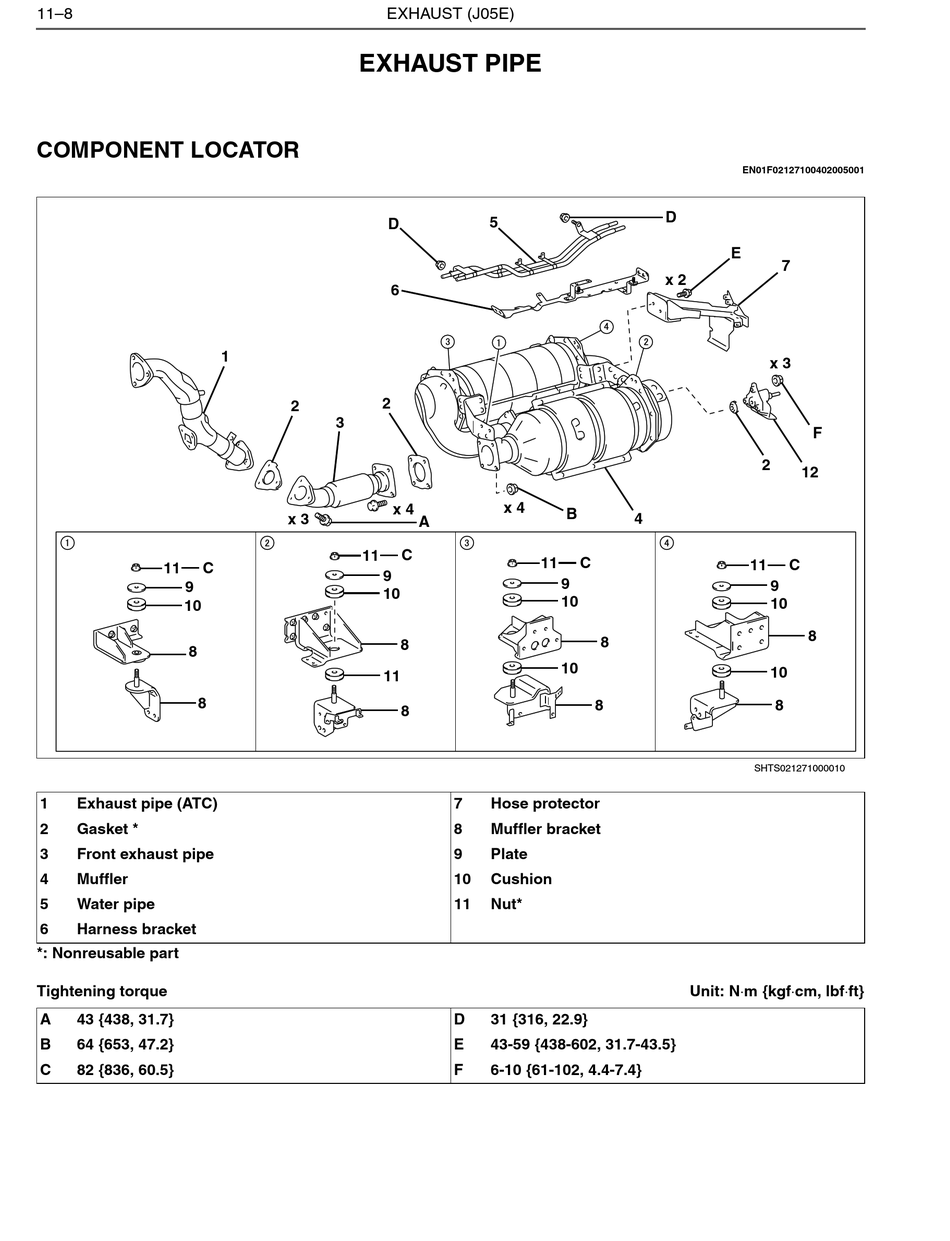

COMPONENT LOCATOR

11 C
9
10
8
8
1 Exhaust pipe (ATC)
2 Gasket *
3 Front exhaust pipe
4 Muffler
5 Water pipe
6 Harness bracket
*: Nonreusable part
Tightening torque
A 43 {438, 31.7}
B 64 {653, 47.2}
C 82 {836, 60.5}
EXHAUST (J05E)

EXHAUST PIPE

D
6
1
2
2
3
x 4
x 3
11 C
9
10
8
11
8
5
x 4
B
A
11 C
9
10
10
8
7 Hose protector
8 Muffler bracket
9 Plate
10 Cushion
11 Nut*
D 31 {316, 22.9}
E 43-59 {438-602, 31.7-43.5}
F 6-10 {61-102, 4.4-7.4}
EN01F02127100402005001
D
E
x 2
x 3
2
4
11
9
10
8
10
8
SHTS021271000010
Unit: Nm {kgfcm, lbfft}
