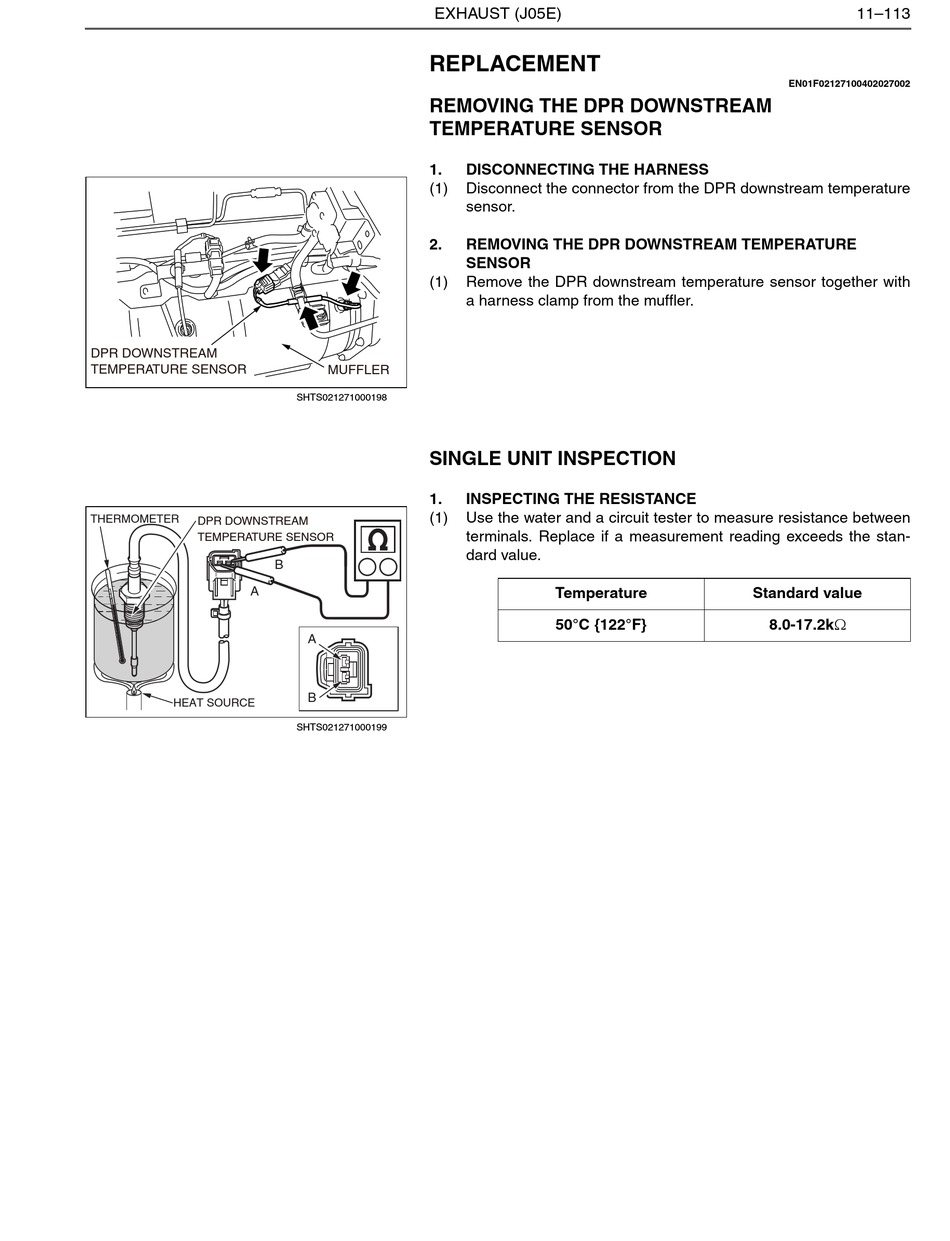

Replacement - Hino S5-LJ05E04A Workshop Manual

DPR DOWNSTREAM
TEMPERATURE SENSOR
THERMOMETER
DPR DOWNSTREAM
TEMPERATURE SENSOR
A
HEAT SOURCE
EXHAUST (J05E)

REPLACEMENT

REMOVING THE DPR DOWNSTREAM
TEMPERATURE SENSOR
1.
(1)
2.
(1)
MUFFLER
SHTS021271000198
SINGLE UNIT INSPECTION
1.
(1)
B
A
B
SHTS021271000199
DISCONNECTING THE HARNESS
Disconnect the connector from the DPR downstream temperature
sensor.
REMOVING THE DPR DOWNSTREAM TEMPERATURE
SENSOR
Remove the DPR downstream temperature sensor together with
a harness clamp from the muffler.
INSPECTING THE RESISTANCE
Use the water and a circuit tester to measure resistance between
terminals. Replace if a measurement reading exceeds the stan-
dard value.
Temperature
50°C {122°F}
11–113
EN01F02127100402027002
Standard value
8.0-17.2k
