TURBOCHARGER ASSEMBLY
LINK PLATE
TURBOCHARGER (J05E)

REPLACEMENT

REMOVING THE TURBOCHARGER ASSEMBLY
1. CAUTIONS
! CAUTION
• Use care not to touch the link plate and adjusting screw dur-
ing work.
•
Do not remove the link plate of the turbocharger assembly.
• The adjusting screw for opening/closing operation of the tur-
bocharger assembly has been adjusted. Do not loosen it.

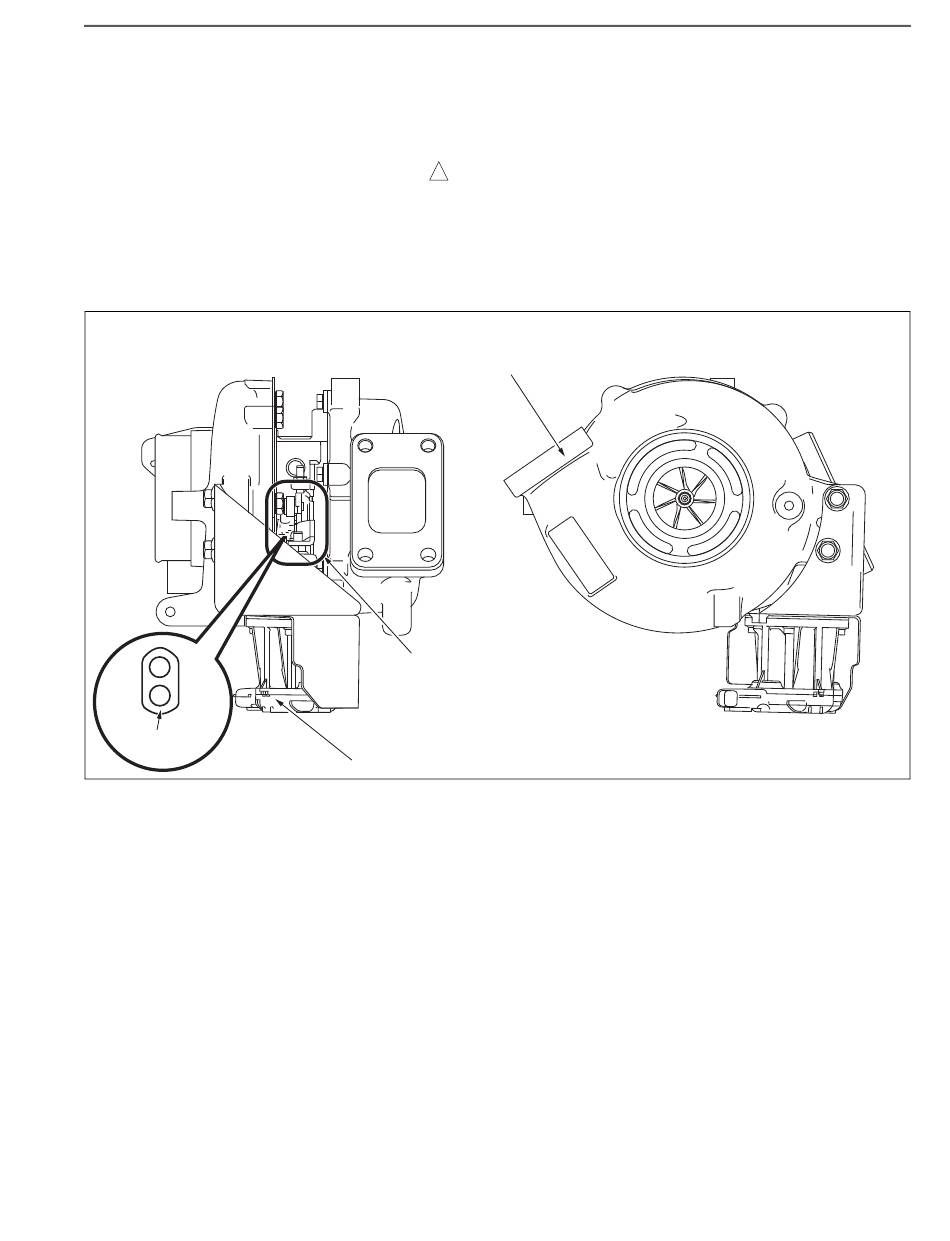

TURBOCHARGER
ACTUATOR DRIVE
LEVER PART
ELECTRIC ACTUATOR
