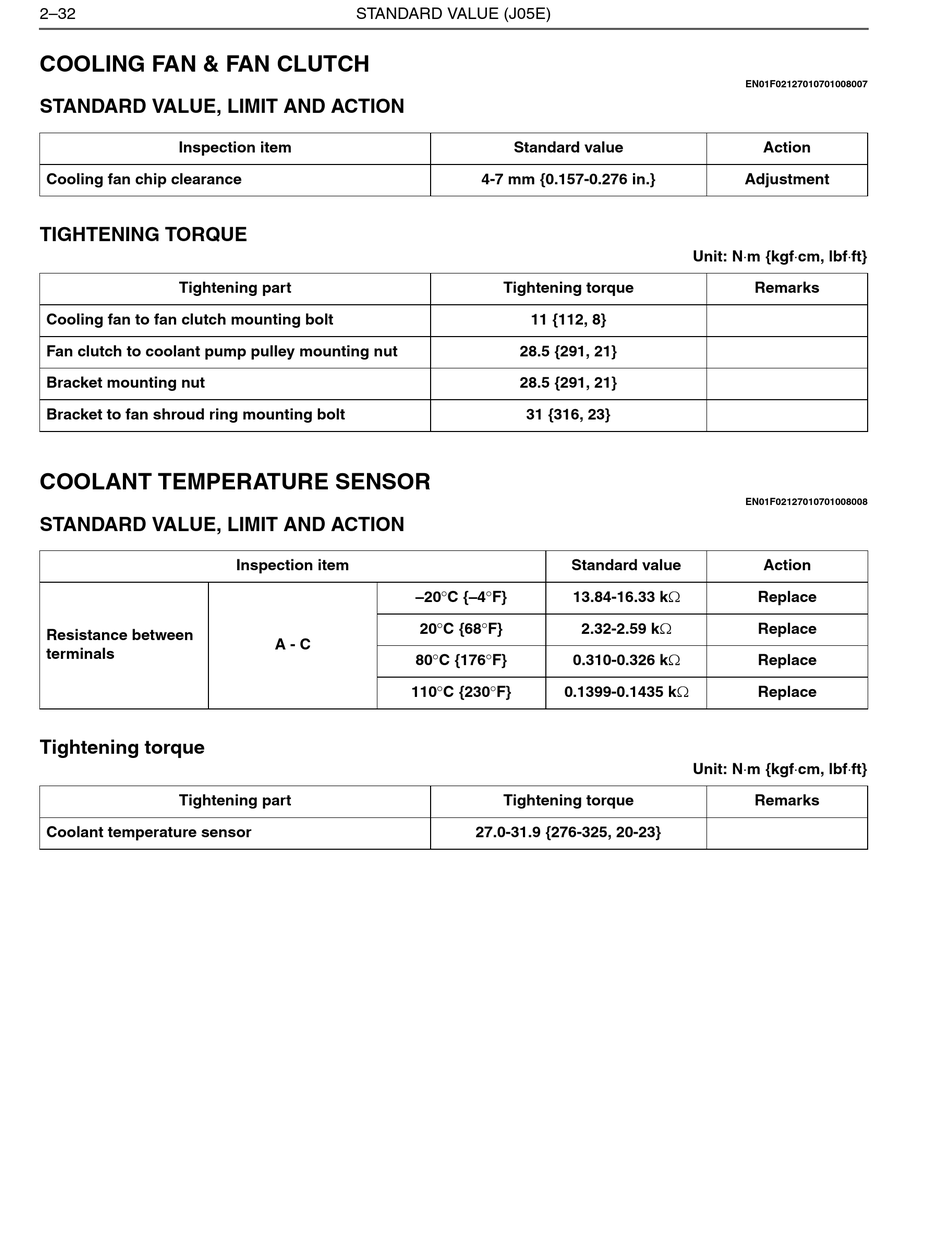

Cooling Fan & Fan Clutch; Coolant Temperature Sensor - Hino S5-LJ05E04A Workshop Manual

2–32
COOLING FAN & FAN CLUTCH
STANDARD VALUE, LIMIT AND ACTION
Inspection item
Cooling fan chip clearance
TIGHTENING TORQUE
Tightening part
Cooling fan to fan clutch mounting bolt
Fan clutch to coolant pump pulley mounting nut
Bracket mounting nut
Bracket to fan shroud ring mounting bolt

COOLANT TEMPERATURE SENSOR

STANDARD VALUE, LIMIT AND ACTION
Resistance between
terminals
Tightening torque
Tightening part
Coolant temperature sensor
STANDARD VALUE (J05E)
Inspection item
–20C {–4F}
A - C
80C {176F}
110C {230F}
Standard value
4-7 mm {0.157-0.276 in.}
Tightening torque
11 {112, 8}
28.5 {291, 21}
28.5 {291, 21}
31 {316, 23}
Standard value
13.84-16.33 k
20C {68F} 2.32-2.59 k
0.310-0.326 k
0.1399-0.1435 k
Tightening torque
27.0-31.9 {276-325, 20-23}
EN01F02127010701008007
Action
Adjustment
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701008008
Action
Replace
Replace
Replace
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
