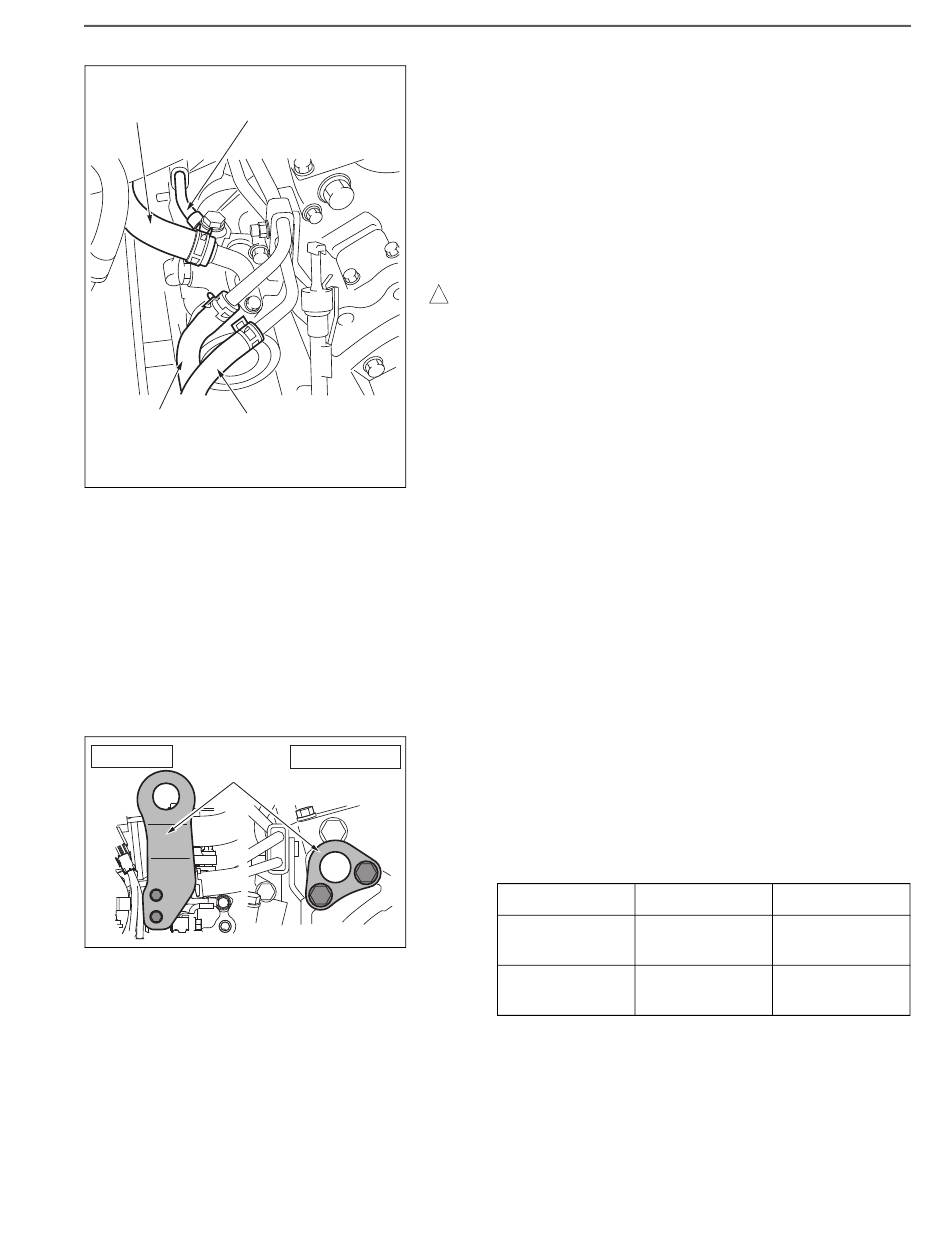

MOUNTING AND DISMOUNTING THE ENGINE (J05E)
21. DISCONNECTING THE FUEL HOSE
(1) Unfasten the 2 clamps from the fuel pipe at the left rear of the fly-
wheel housing and disconnect the fuel hose (return side) and fuel
hose (feed side) from fuel feed pipe No.4 and return pipe No.3.
NOTICE
Fuel will spill when remove the hose. Prepare a reservoir and
clean clothes.
22. DISCONNECTING THE POWER STEERING OIL HOSE AND
OIL PIPE
(1) Loosen the clamp and separate the power steering oil hose from
the power steering pump.
! CAUTION
Check the marking on hose and then disconnect the hoses. If the
marking is erased, mark the hose before disconnecting it.
NOTICE
Power steering oil will spill when disconnecting the hose. Prepare
a reservoir and clean clothes.
(2) Remove the union bolt and detach the power steering oil pipe and
gaskets (2 pcs.) from the power steering pump.
NOTICE
Power steering oil will spill when disconnecting the pipe. Prepare
SHTS021270400011
a reservoir and clean clothes.
23. REMOVING THE CLOSED VENTILATOR
Reference: EMISSION CONTROL (J05E), CLOSED VENTILA-
TOR, REPLACEMENT, REMOVING THE CLOSED VENTILA-
TOR (Page 8-14)
24. REMOVING THE TRANSMISSION
(1) Remove the transmission.
Reference: CHASSIS (S1-LXJE03A), TRANSMISSION
Reference: CHASSIS (S1-LXJE04A), TRANSMISSION
25. LIFTING THE ENGINE
(1) Mount the SST to the engine.
LEFT REAR SIDE
Tightening Torque:
125 N·m {1,275 kgf·cm, 92 lbf·ft}
Engine front side of engine hanger
85 N·m {867 kgf·cm, 63 lbf·ft}
Engine rear side of engine hanger
SHTS021270400012
Location Engine hanger
Front side of the
12081-E0090
engine
Rear side of the
S1228-11901
engine
5–9
Bolt
SZ105-12024
SH782-41230
