Hino S5-LJ05E04A Workshop Manual page 339

PRESS
OIL SEAL
GUIDE
OIL SEAL GUIDE
INSERT WITH FELTED SURFACE OUTWARD
ENGINE MECHANICAL (J05E)

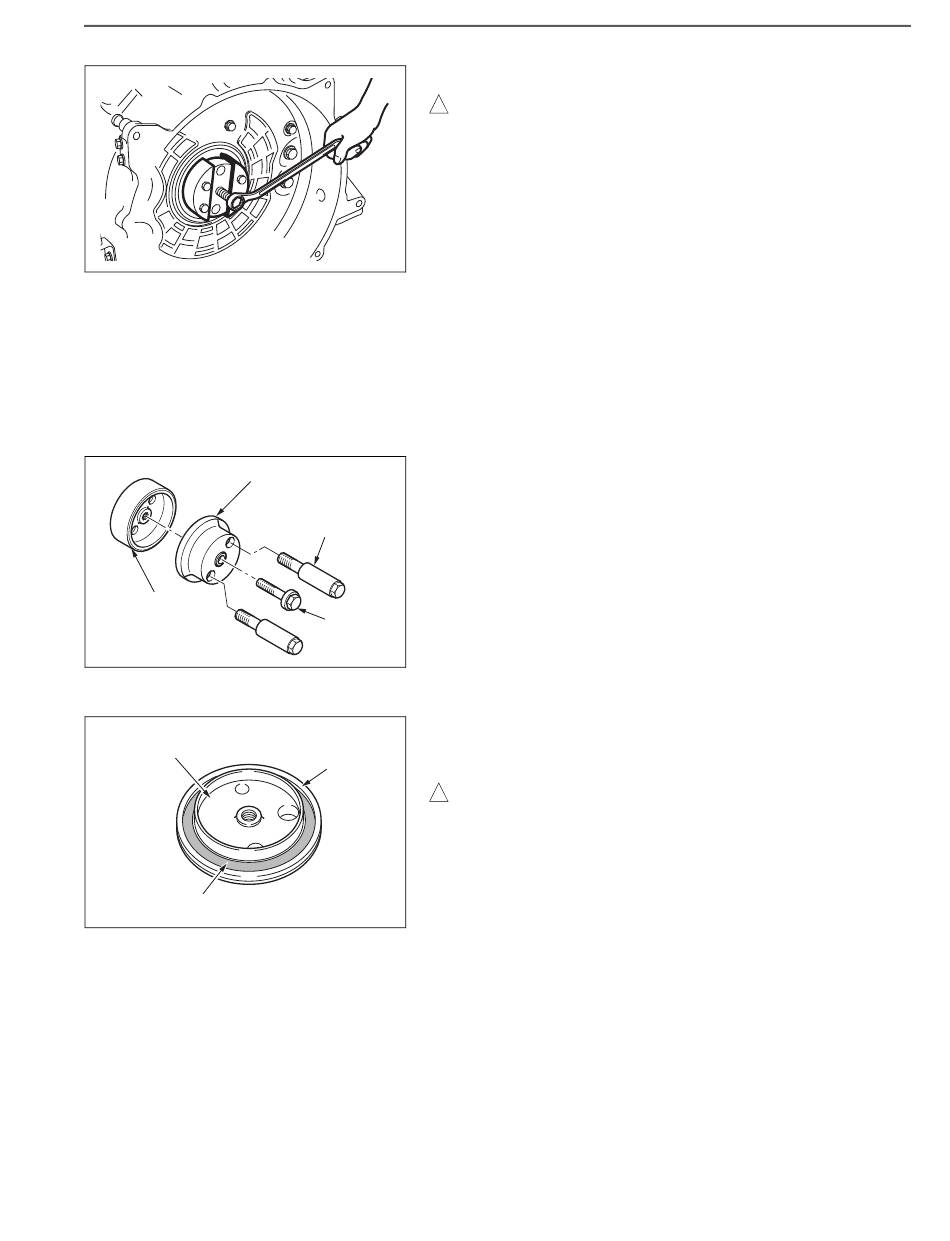

(4) Fit and gradually tighten the SST center bolt to pull off the crank-
shaft rear oil seal.
! CAUTION
• Inspect the engagement of the SST and oil seal half way
through the work and pull off the seal without removing the
SST.
• The crankshaft rear oil seal is nonreusable.
SHTS021270900134
MOUNTING THE CRANKSHAFT REAR OIL SEAL
1. MOUNTING THE CRANKSHAFT REAR OIL SEAL
(1) Check that there is no dent or dirt on the oil seal insertion part of
the flywheel housing and crankshaft.
(2) Remove the dirt from the SST.
SST:
NOTICE
SST kit
GUIDE BOLT
CENTER
BOLT
SHTS021270900135
(3) Apply the small amount of engine oil to the interference and cir-
cumference surfaces of a new crankshaft rear oil seal.
(4) Note the direction of the oil seal and insert it to the oil seal guide
of the SST.
OIL SEAL
! CAUTION
• Note the front and rear direction of the crankshaft rear oil
seal. (The felt surface is the flywheel side)
• Mount the oil seal so that is not inclined.
SHTS021270900136
S0940-71040
Oil seal press
10–63
